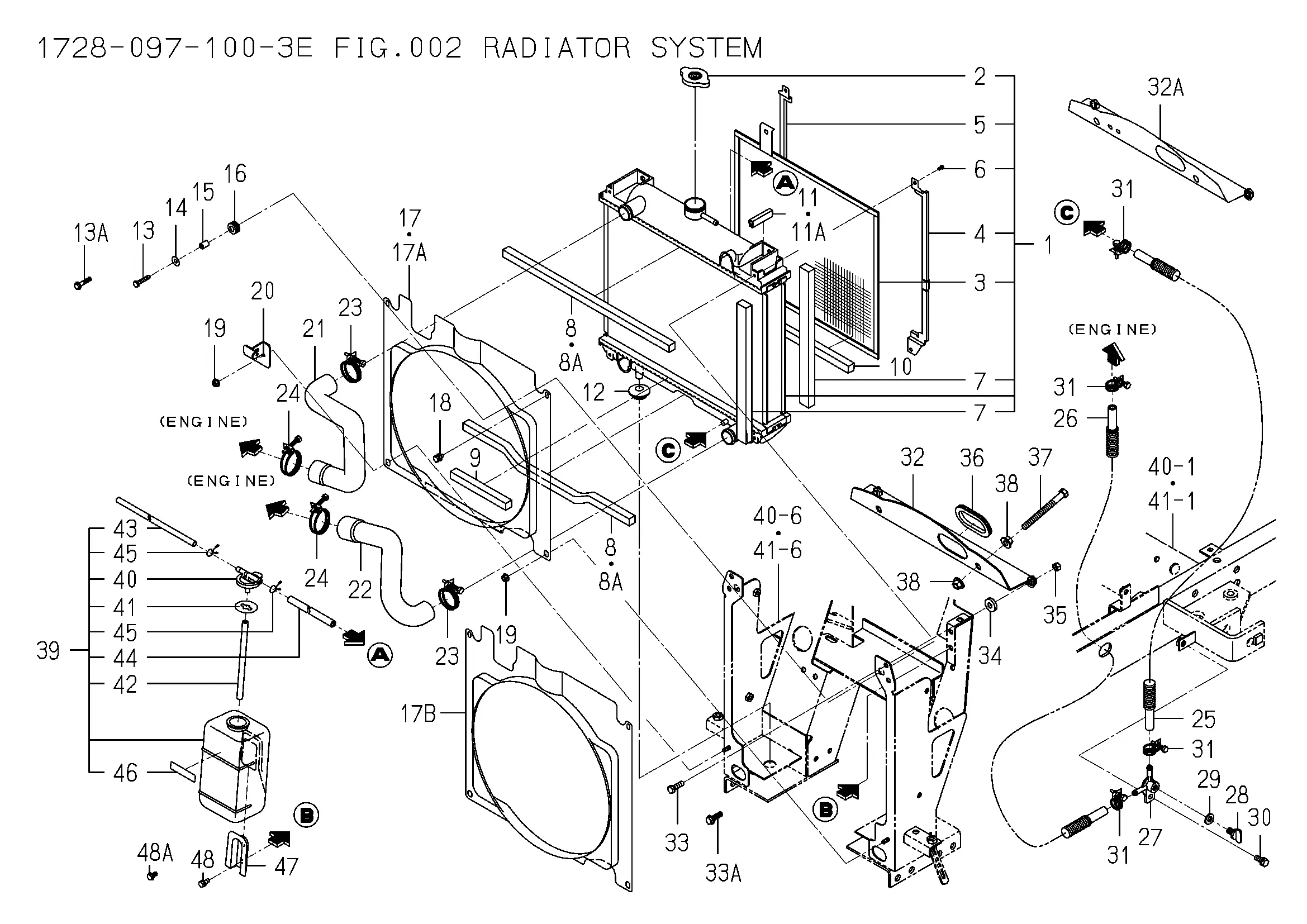

Kühler
Ersatzteile (56 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
1650-102-006-00
8A
INSULATOR
9
INSULATOR/15X15X140
10
SEAL/15X15X380
11
3666-202-005-00
11A
PAD/50
12
BUSH,LEVER
13
V200-260-603-00
13A
FLANGEBOLT/M6X30
14
WASHER
15
COLLAR
16
GROMMET
17
Kühlerschutz
17A
1728-102-210-10
17B
SHROUD
18
V210-360-601-20
19
NUT/WASHER/M6
20
1728-102-002-00
21
HOSE/RADIATOR/UPPER
22
HOSE/RADIATOR/LOWER
23
J061-230-038-00
24
CLAMP/WIRE/36-44
25
HOSE/290 ASSY
26
HOSE/450 ASSY
27
CONNECTOR
28
1424-101-203-00
29
PACKING
30
BOLT,SP/M8X20
31
J061-210-015-00
32
Blech
32A
1728-102-200-10
33
V201-260-802-50
33A
FLANGEBOLT/M8X25
34
CUSHION/RUBBER/10X25
35
NUT/M8
36
TRIM/188
37
V201-261-010-00
38
NUT/WASHER/M10
39
RESERVETANK ASSY
40
CAP
41
PACKING
42
HOSE/RUBBER
43
PIPE
44
1705-102-252-20
45
CLAMP
46
6221-408-007-00
47
Halter
48
V210-260-601-60
48A
FLANGEBOLT/M6X12
