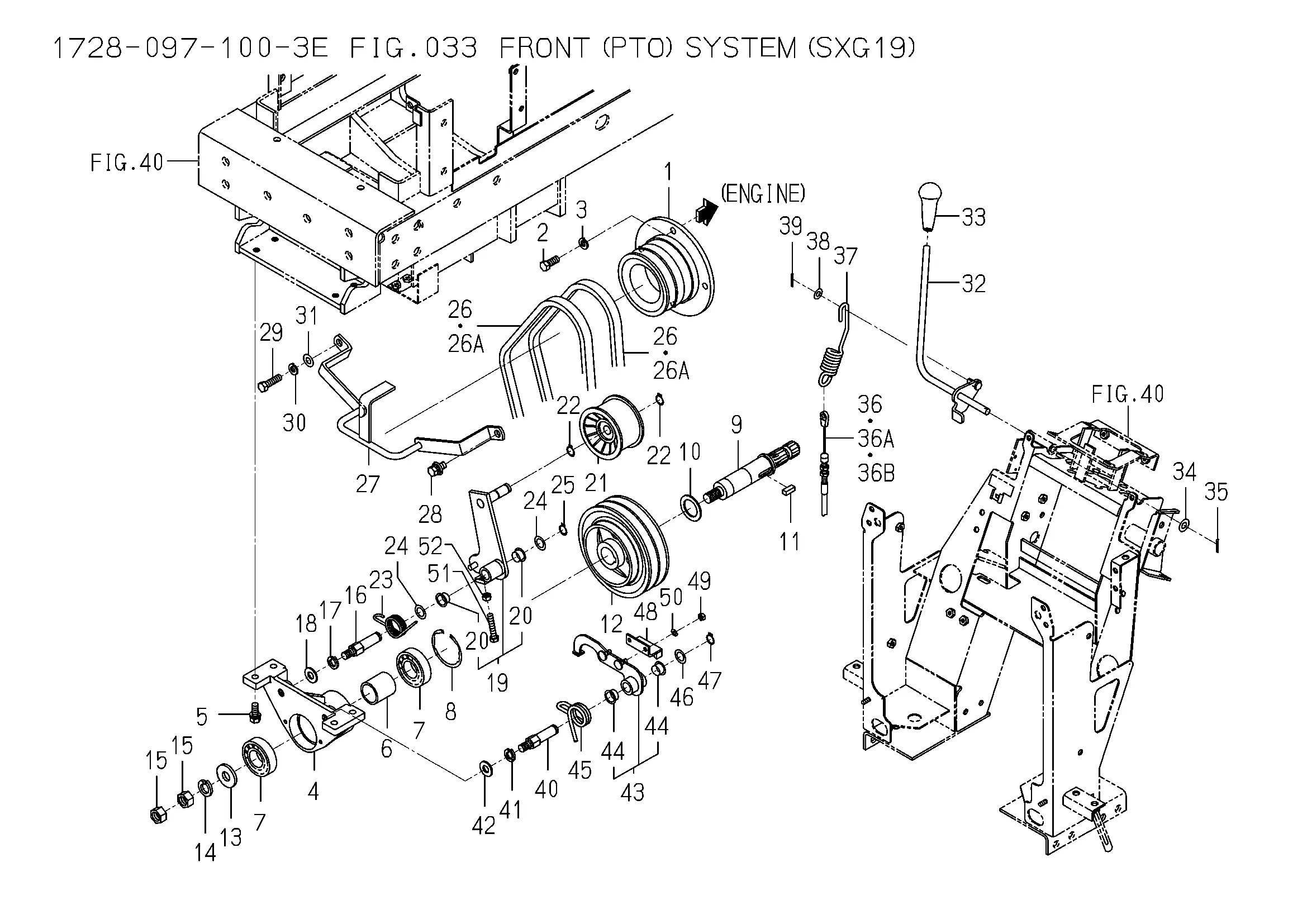

Front-PTO
Ersatzteile (57 Teile)
1
PULLEY/V2B104
2
V203-461-002-50
3
WASHER,SP/M10
4
METAL/PTO/FRONT
5
BOLT,S/M10X25/7T
6
COLLAR/31X38X41
7
BEARING,RB/6206SS
8
RING,SNAP/R62
9
SHAFT/PTO/MID
10
WASHER/30X45X2
11
KEY/08X07X20
12
PULLEY/V2B155
13
WASHER
14
WASHER,SP/M16
15
V305-260-016-00
16
PIN/TENSION
17
WASHER,SP/M12
18
V411-260-012-00
19
ARM/TENSION/19 ASSY
20
BUSH/15X17X11
21
PULLEY/FT80X47
22
Sicherungsring 15x1
23
SPRING/HT032
24
WASHER
25
Sicherungsring 15x1
26
Keilriemen
26A
1728-334-013-00
27
BAR/PTO COMP
28
BOLT,SP/M10X20
29
V203-361-003-50
30
WASHER,SP/M10
31
V411-260-010-00
32
Hebel, Einschaltung PTO
33
GRIP/PTO
34
V411-260-010-00
35
PIN,SPLIT/2.5X20
36
Bowdenzug, PTO
36A
1728-334-240-10
36B
1728-334-240-20
37
SPRING/HE138
38
WASHER,PL/M8
39
PIN,SPLIT/2.5X20
40
PIN/TENSION
41
WASHER,SP/M12
42
V411-260-012-00
43
ARM/PTOBRAKE ASSY
44
BUSH/15X17X11
45
SPRING/HT033
46
WASHER
47
Sicherungsring 15x1
48
Bremsklotz
49
V301-260-006-00
50
V401-160-006-00
51
BOLT/M8X45/7T
52
NUT/M8
oB
Schutzkappe, Heckzapfwelle 1444-314-0091-0
oB
Zapfwellenstummel
