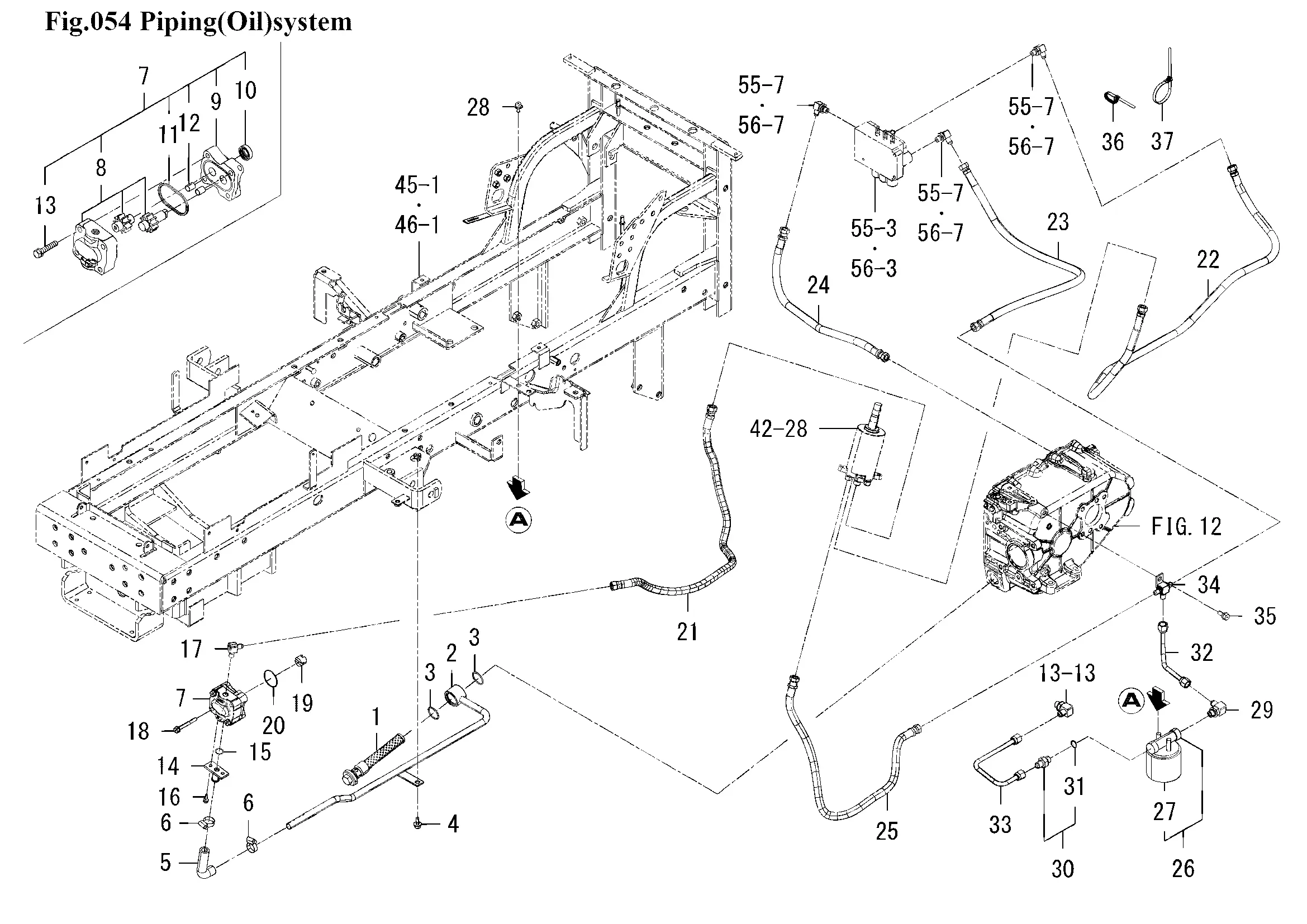

Hydraulikleitungen, -Filter
Ersatzteile (37 Teile)
1
1738-508-210-10
2
PIPE/SUCTION COMP
3
O-RING/1A,P28
4
BOLT,SP/M8X20
5
HOSE/14X22X82
6
J061-114-024-00
7
PUMP/GEAR ASSY
8
PUMP/GEAR SET
9
K130-003-003-00
10
SEAL,OIL/TC15257
11
O-RING/1A,S56
12
KNOK
13
V211-260-804-00
14
SUCTION/OUT COMP
15
O-RING/1A,P16
16
V210-260-601-60
17
ADAPTER/L/G1/4XR1/4
18
V211-260-806-00
19
CONNECTOR
20
O-RING/1A,S40
21
HOSE/VALVE/800 ASSY
22
HOSE/1385/E4 ASSY (NML)
23
1728-508-350-00
24
HOSE/HYDRO/650 ASSY
25
HOSE/HYDRO/650 ASSY
26
FILTER/RETURN ASSY
27
Hydraulikfilter
28
BOLT,SP/M8X16
29
1999-512-320-00
30
1999-512-310-00
31
O-RING/1B,P14
32
1854-508-830-00
33
1854-508-840-00
34
ADAPTER/M16XG1/4 CP
35
BOLT,S/M10X20
36
BAND,WIRE/140
37
1342-402-006-00
