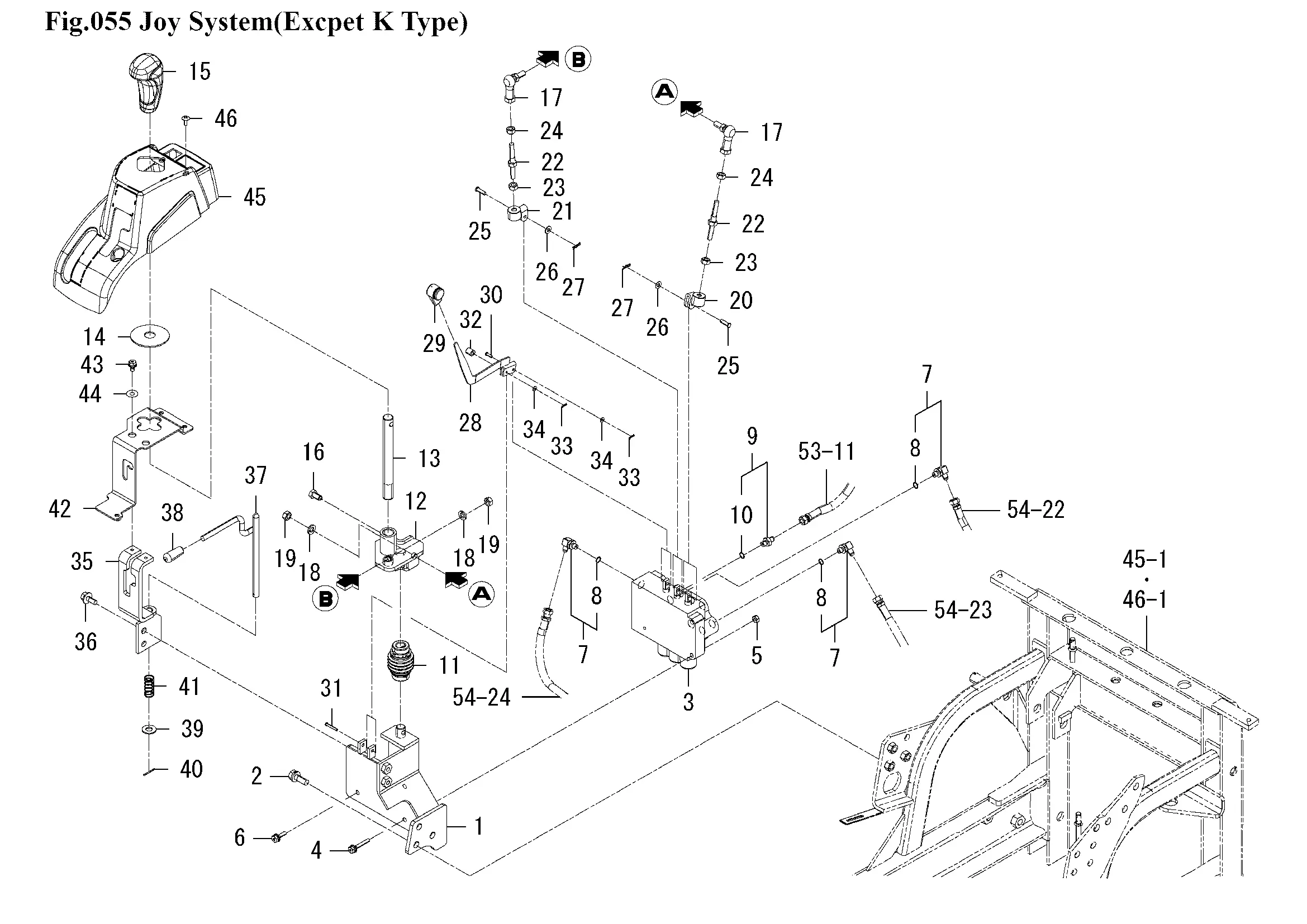

Joystick
Ersatzteile (46 Teile)
1
1854-512-210-00
2
BOLT,SP/M10X25/7T
3
VALVE/1S-2D ASSY
4
V210-360-603-50
5
V301-260-006-00
6
V210-360-602-00
7
1999-509-510-00
8
O-RING/1B,P11
9
ADAPTER/G1/4 ASSY
10
O-RING/1B,P11
11
JOINT ASSY
12
1854-512-310-00
13
1854-512-001-00
14
1728-512-081-00
15
GRIP/YN
16
BOLT/M8X16
17
1560-695-022-00
18
WASHER,SP/M8
19
NUT/M8
20
1854-512-240-10
21
1854-512-250-10
22
ROD/M08X65 COMP
23
NUT/M8
24
NUT/LH/M08
25
PIN/05X17
26
V411-260-005-00
27
PIN/SNAP
28
1854-512-260-10
29
GRIP
30
PIN/05X17
31
1854-512-002-00
32
TUBE/015
33
PIN/SNAP
34
V411-260-005-00
35
1854-512-290-00
36
BOLT,SP/M8X20
37
1854-512-280-00
38
GRIP,LEVER
39
V411-260-010-00
40
PIN,SPLIT/2X20
41
1364-403-005-10
42
1854-512-330-10
43
BOLT,SP/M6X16
44
1836-102-003-00
45
1854-512-003-00
46
1729-705-008-00
