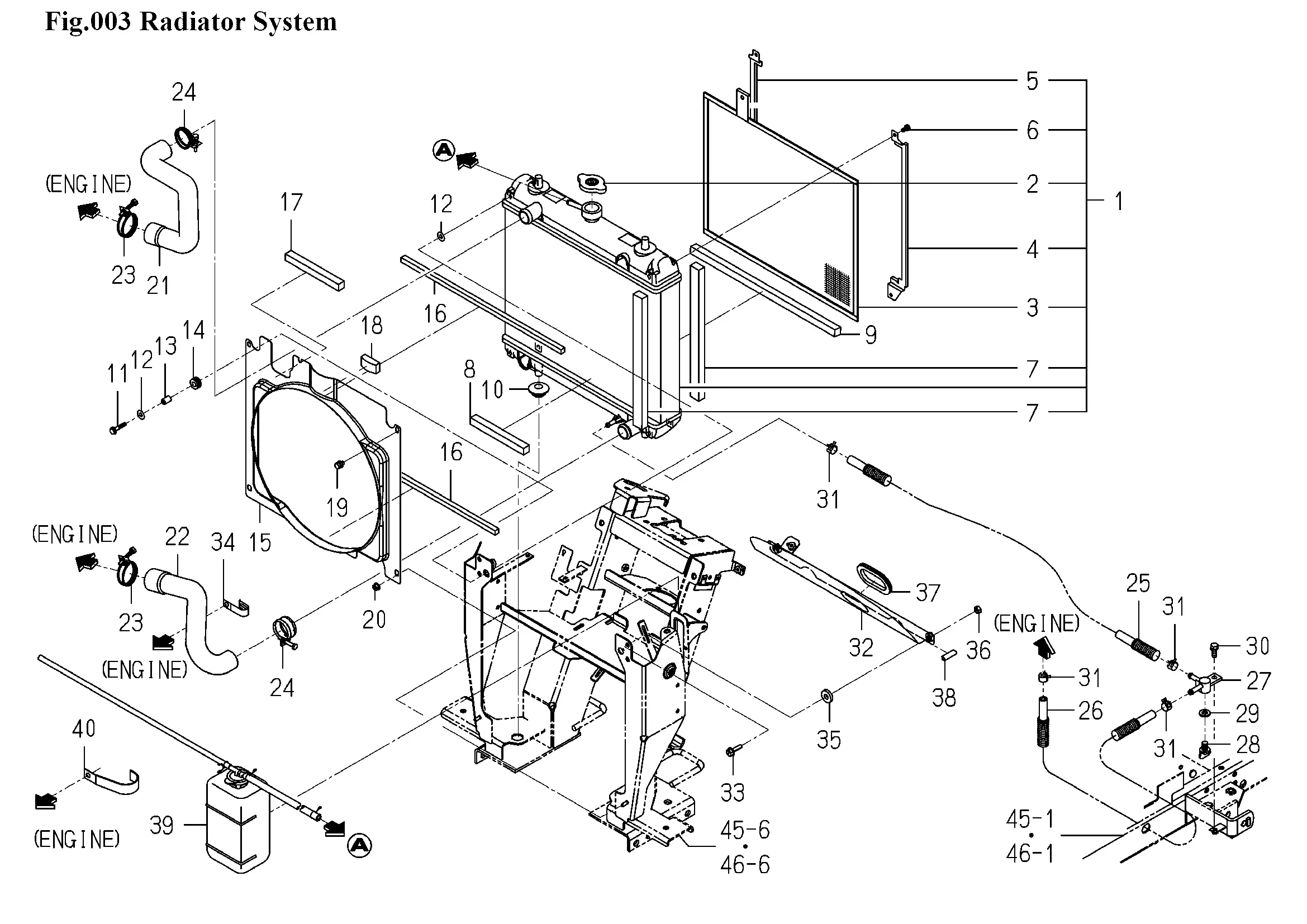

Kühler
Ersatzteile (40 Teile)
1
RADIATOR/390X30 ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
1836-102-002-00
9
SEAL/15X15X380
10
BUSH,LEVER
11
FLANGEBOLT/M6X30
12
1836-102-003-00
13
1836-102-041-00
14
1836-102-004-10
15
1836-102-421-00
16
1836-102-001-00
17
1836-102-002-00
18
1836-102-007-00
19
V210-360-601-20
20
NUT/WASHER/M6
21
HOSE/RADIATOR/UPPER
22
HOSE/RADIATOR/LOWER
23
J061-230-038-00
24
CLAMP/WIRE/36-44
25
HOSE/290 ASSY
26
HOSE/450 ASSY
27
CONNECTOR
28
1424-101-203-00
29
PACKING
30
BOLT,SP/M8X20
31
CLIP/HOSE/14.7-15.9
32
PANEL/RADIATOR COMP
33
FLANGEBOLT/M8X25
34
HOLDER/JE/9-9
35
CUSHION/RUBBER/10X25
36
NUT/M8
37
TRIM/188
38
INSULATOR/30
39
1854-102-210-00
40
CLIP
