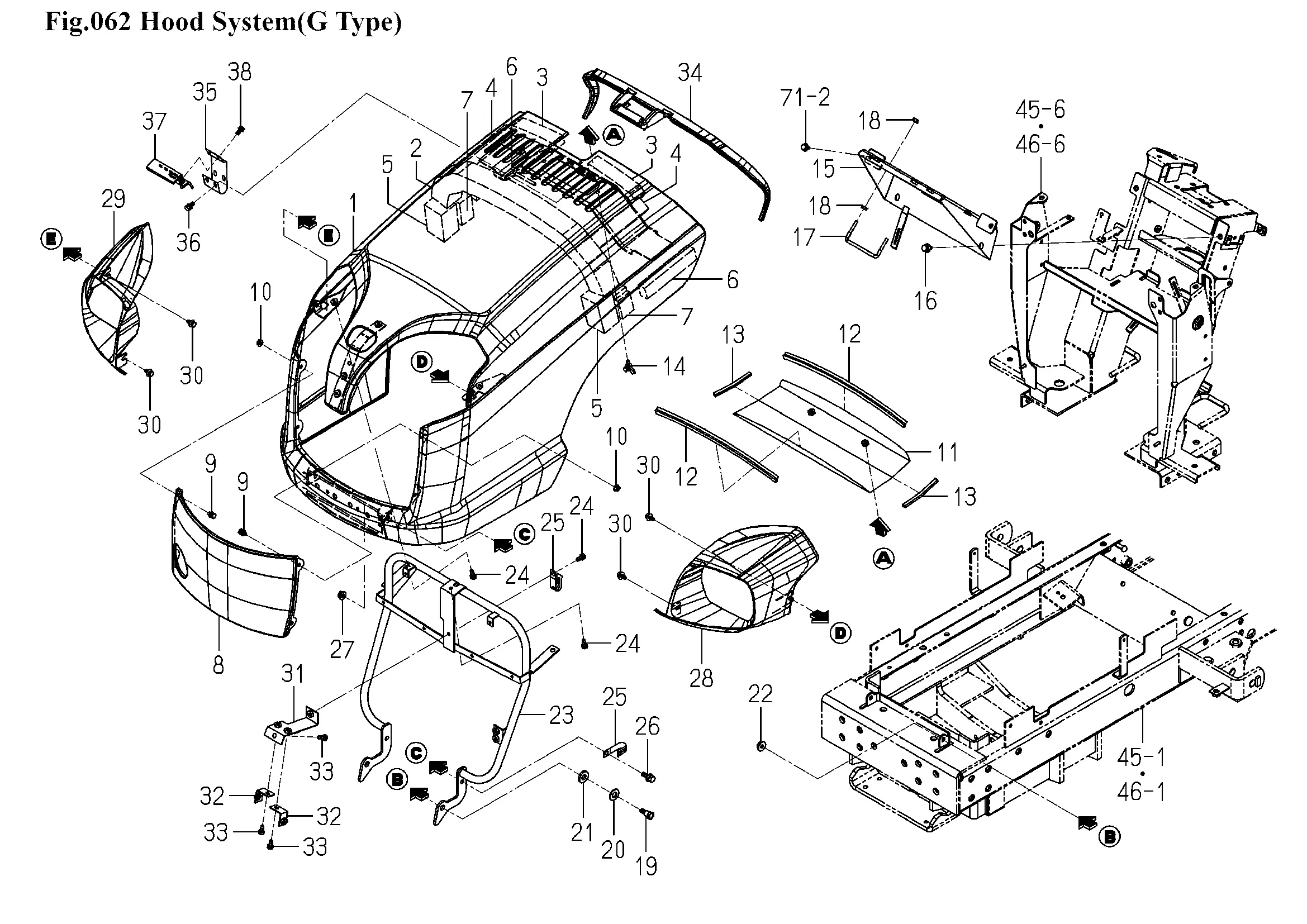

Motorhaube
Ersatzteile (38 Teile)
1
HOOD/G COMP
2
SEAL/45X45X640
3
SEAL/30X20X150
4
SEAL/30X20X150
5
1836-405-001-00
6
SEAL/30X20X150
7
INSULATOR
8
1739-601-071-10
9
V210-360-601-20
10
NUT/WASHER/M6
11
1725-601-720-20
12
TRIM/1X6X360
13
RUBBER,HOOK
14
V273-360-601-50
15
1854-601-210-00
16
BOLT,SP/M8X16
17
LEVER/LOCK
18
NUT/WASHER/M6
19
1689-621-008-10
20
V411-260-012-00
21
WASHER/12X26X04
22
V363-260-008-00
23
STAY/LAMP COMP
24
BOLT,SP/M6X16
25
HOLDER/JE/9-9
26
BOLT,SP/M8X25
27
Kombimutter-M8
28
COVER/LAMP/LH
29
COVER/LAMP/RH
30
BOLT/M6X14/16
31
1739-601-750-10
32
PLATE COMP
33
BOLT,SP/M6X16
34
1739-601-075-40
35
PLATE/LOCK
36
BOLT,SP/M6X16
37
HANDLE COMP
38
SCREW,SP/M6X16
