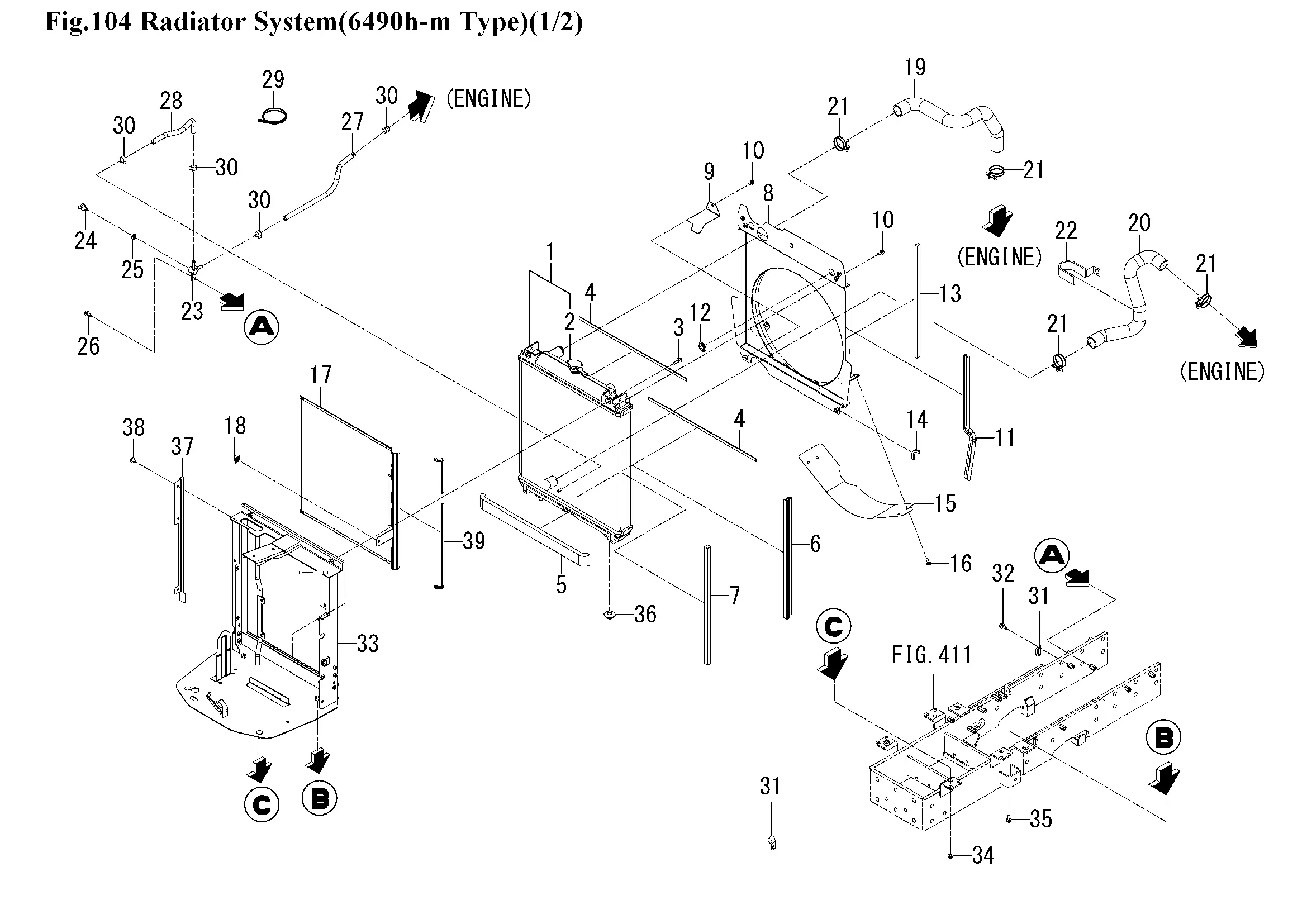

Kühler
Ersatzteile (66 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR
5
INSULATOR/40X480
6
INSULATOR/475
7
INSULATOR/15X15X470
8
1816-102-220-00
9
1796-102-005-00
10
1746-804-002-00
11
TRIM/510
12
3670-272-001-00
13
INSULATOR
14
INSULATOR/30
15
PLATE
16
1746-804-002-00
17
Kühlernetz
18
LATCH ASSY
19
HOSE/RADIATOR/INLET
20
HOSE/RADIATOR/OUTLET
21
CLAMP/WIRE/36-44
22
CLAMP
23
CONNECTOR
24
1424-101-203-00
25
PACKING
26
1746-804-003-00
27
Schlauch, 320
28
Schlauch, 8x13x580
29
1342-402-006-00
30
CLIP/HOSE/14.7-15.9
31
1675-508-003-00
32
FLANGEBOLT/M8X16
33
1816-102-230-10
34
1746-816-001-00
35
1746-804-003-00
36
BUSH,LEVER
37
1816-102-005-10
38
CLIP(B)
39
PAD/520
40
1785-102-210-30
41
1746-817-001-00
42
WASHER,PL/M8
43
SPRING/HT020
44
1792-102-240-00
45
PIN/SNAP
46
1801-102-004-00
47
CAP/PARKING
48
RESERVETANK ASSY
49
CAP
50
PACKING
51
1690-102-214-00
52
1690-102-215-00
53
1690-102-216-00
54
HOSE/RUBBER
55
BAND,WIRE/140
56
1792-102-006-00
57
BOLT/SP
58
1816-102-003-00
59
INSULATOR/700
60
PROTECTOR/185
61
TRIM/90
62
1746-804-001-00
63
NUT/WASHER
64
1792-102-270-10
65
TUBE/07X09X30
66
BOLT/SP
