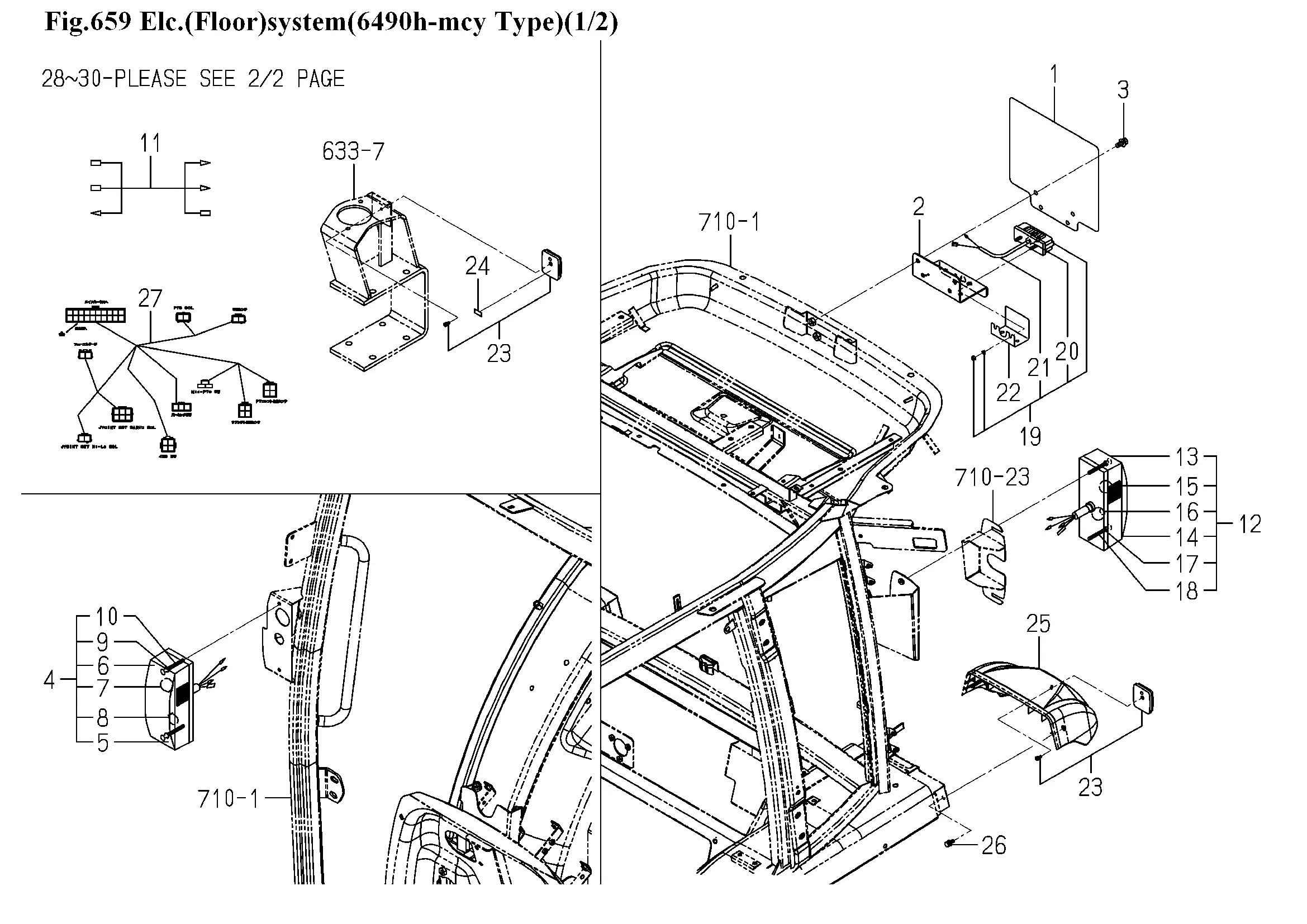

Beleuchtung, hinten
Ersatzteile (38 Teile)
1
PLATE/NUMBER/E4
2
PLATE
3
FLANGEBOLT/M8X16
4
LAMP/COMBINATIO ASSY
5
LENS
6
LENS
7
1564-654-213-00
8
1566-656-204-00
9
1792-652-233-00
10
SCREW
11
1801-654-260-00
12
LAMP/COMBINATIO ASSY
13
LENS
14
LENS
15
1564-654-213-00
16
BULB/12V21-5W
17
1792-652-233-00
18
SCREW
19
LAMP/NUMBERPLAT SET
20
1674-654-271-00
21
HARNESS/LAMP
22
GUARD/LIGHT
23
1674-654-400-10
24
1674-654-004-00
25
Abdeckung, Reflektor
26
BOLT,SP/M6X16
27
1815-654-200-10
28
1815-662-200-00
29
BOLT,SP/M6X16
30
BAND,WIRE/140
31
1729-782-281-00
32
1801-654-002-10
33
1801-654-002-10
34
1560-666-004-00
35
CLAMP
36
SENSOR/REVOLUTION/L
37
BOLT,SP/M6X16
38
SOCKET/12V ASSY
