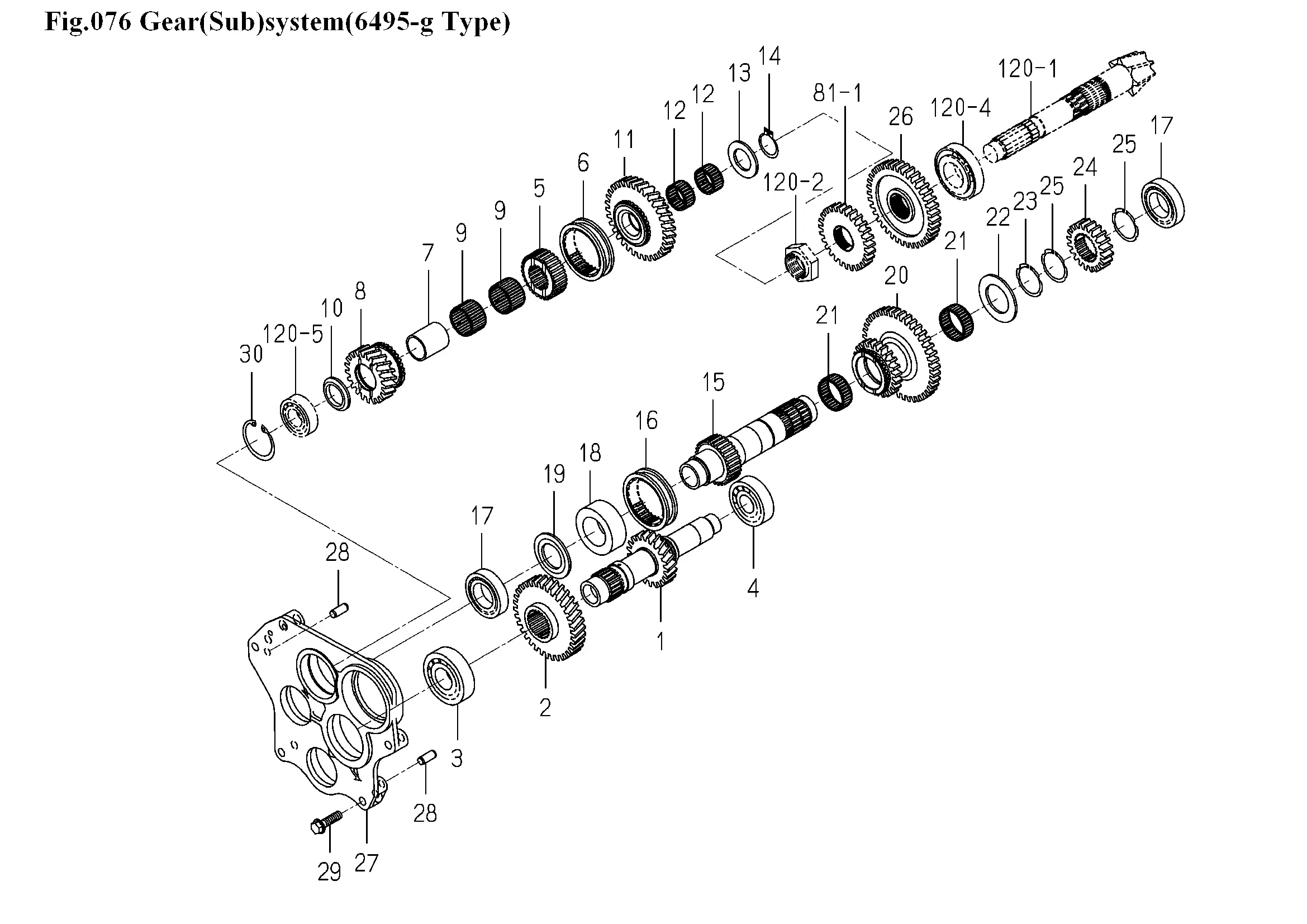

Getriebe, Untersetzung
Ersatzteile (30 Teile)
1
GEAR/HELICAL/21
2
GEAR/HELICAL/33
3
BEARING/BALL
4
1594-218-001-00
5
1729-214-046-00
6
1729-214-047-00
7
1790-214-004-00
8
1816-216-003-00
9
BEARING,NR/KT354017
10
COLLAR/30X45X06
11
1796-216-002-00
12
BEARING/NEEDLE
13
WASHER/30X50X03
14
RING,SNAP/30 C
15
1792-216-006-00
16
1729-214-047-00
17
BEARING/BALL
18
1815-216-008-00
19
1646-221-054-10
20
1792-216-003-10
21
BEARING/NEEDLE
22
1641-243-055-00
23
RING,SNAP/S40
24
1792-216-008-00
25
RING,SNAP/S40
26
1792-216-009-00
27
METAL/SUB
28
PIN,ST,B/10X24
29
V231-361-003-50
30
RING,SNAP/R62
