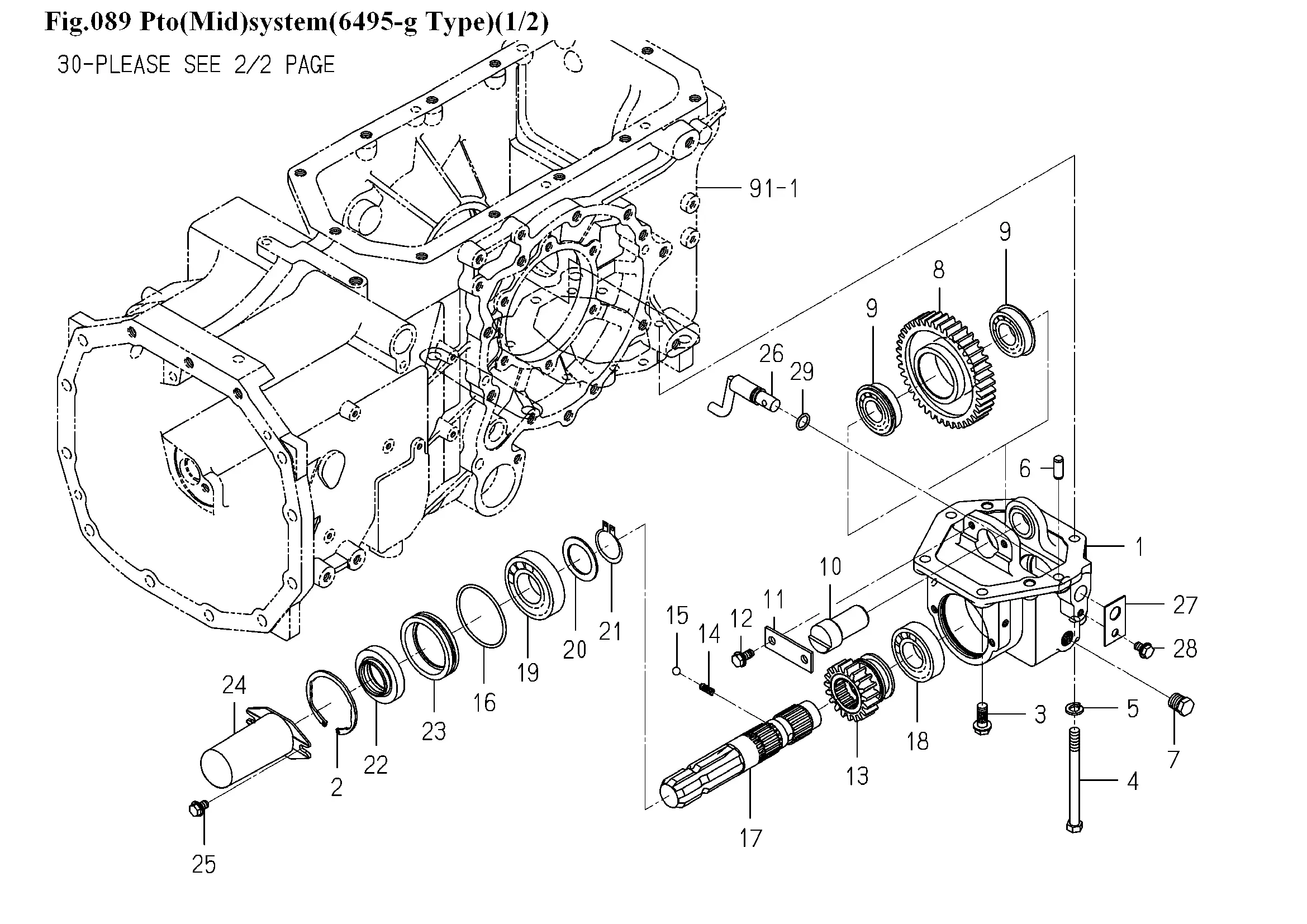

Zwischenachs PTO
Ersatzteile (48 Teile)
1
CASE/PTO
2
RING,SNAP/R72
3
V231-361-002-50
4
V201-361-012-00
5
WASHER,SP/M10
6
PIN,ST,B/10X24
7
PLUG/SCREW/SEAL
8
GEAR/SPUR/40
9
BEARING,RB/6205NR
10
1742-229-004-00
11
PLATE
12
FLANGEBOLT/M8X16
13
GEAR/SPUR/19
14
SPRING,SHIFTER
15
BALL,STEEL
16
O-RING
17
SHAFT/PTO
18
BEARING,RB/6206
19
BEARING/BALL
20
COLLAR(35X50X2)
21
RING,SNAP/35 C
22
SEAL ASSY
23
METAL
24
1444-314-009-10
25
V231-360-801-20
26
ARM/SHIFT/MID COMP
27
PLATE/I/30X50
28
V231-360-801-20
29
O-RING/1A,P14
30
ARM/PLATE/MID COMP
31
PIN,SPRING/6X25 W
33
1816-229-031-10
34
PIN/SNAP/B
35
WASHER,PL/M8
36
PIN,SPLIT/2X20
37
1816-229-300-00
38
ARM/LEVER/MID ASSY
39
1518-242-005-00
40
WASHER/20X28X02
41
RING,SNAP/20 C
42
1815-229-032-00
43
BOLT,SP/M8X25
44
INSULATOR/LEVER/SUB
45
GRIP/MID/PTO
46
1825-680-001-00
47
V120-365-001-60
48
SWITCH/LIMIT ASSY
49
SCREW/M03X20
