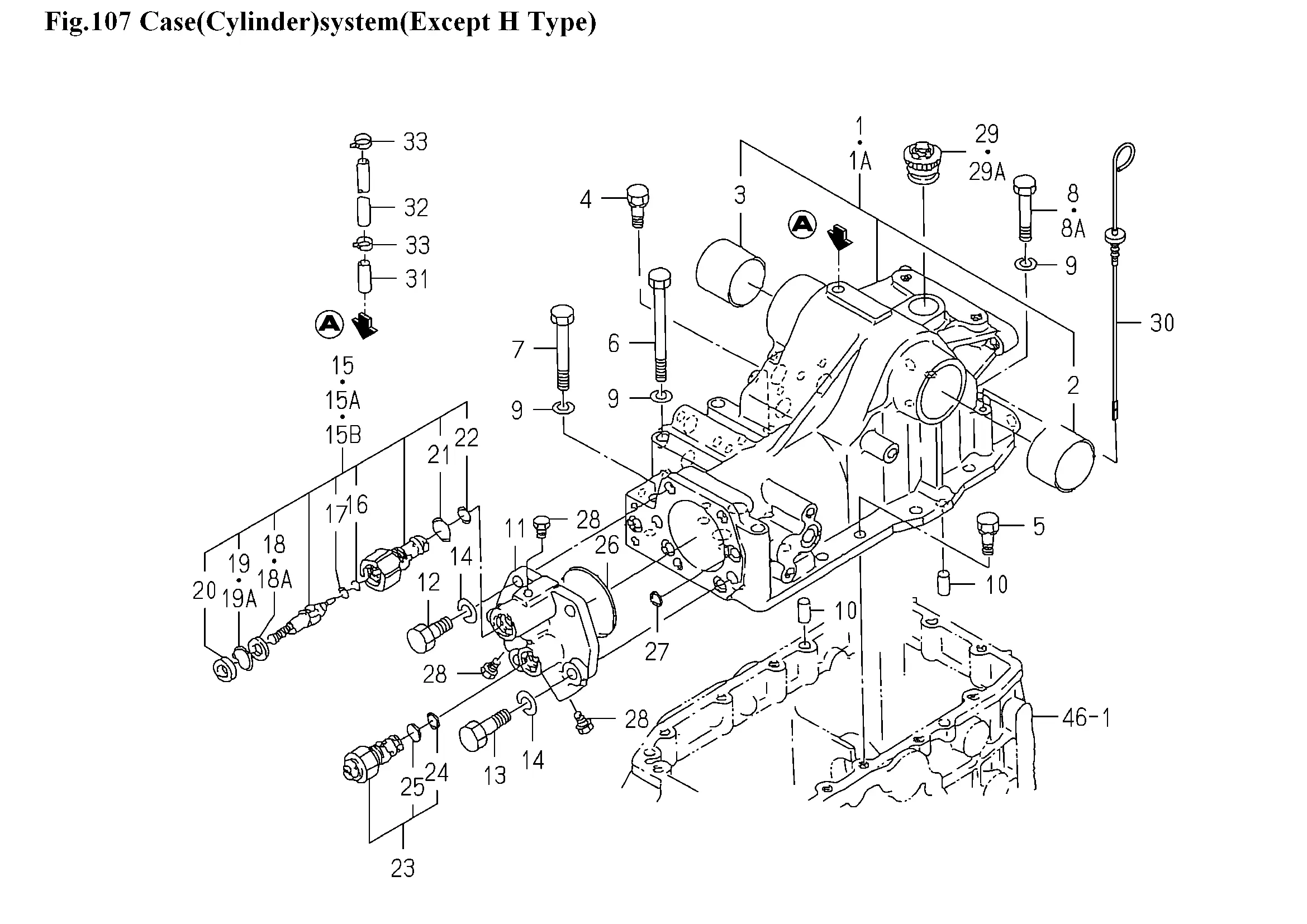

Heckhydraulik
Ersatzteile (40 Teile)
1
Deckel, Hydraulikblock
1A
1678-501-200-50
2
BUSH/50X55X37
3
BUSH/45X50X42
4
V211-561-003-00
5
BOLT,S/M10X25/7T
6
V201-461-010-50
7
BOLT/M10X75/7T
8
V201-361-005-00
8A
V201-461-005-00
9
WASHER,SP/M10
10
PIN,ST,B/10X24
11
1622-501-001-00
12
BOLT/M12X30/7T
13
BOLT/M12X40/7T
14
WASHER,SP/M12
15
Ventil
15A
K231-006-000-20
15B
K231-006-000-30
16
O-RING/1B,P9
17
RING/BACK UP
18
Manschette 11x21x3
18A
COLLAR/11X21X03
19
Sicherungsring
19A
RING/SNAP
20
SEAL,DUST
21
O-RING/1B,P20
22
O-RING/1B,P14
23
VALVE
24
O-RING/1B,P12
25
O-RING/1B,P18
26
O-RING/1B,G70
27
O-RING/1B,P14
28
PLUG/SCREW/SEAL
29
Öleinfüllschraube, Getriebe
29A
CAP/OIL(30)
30
GAUGE/OIL
31
PIPE,BREATHER
32
3653-311-055-00
33
1650-111-032-00
