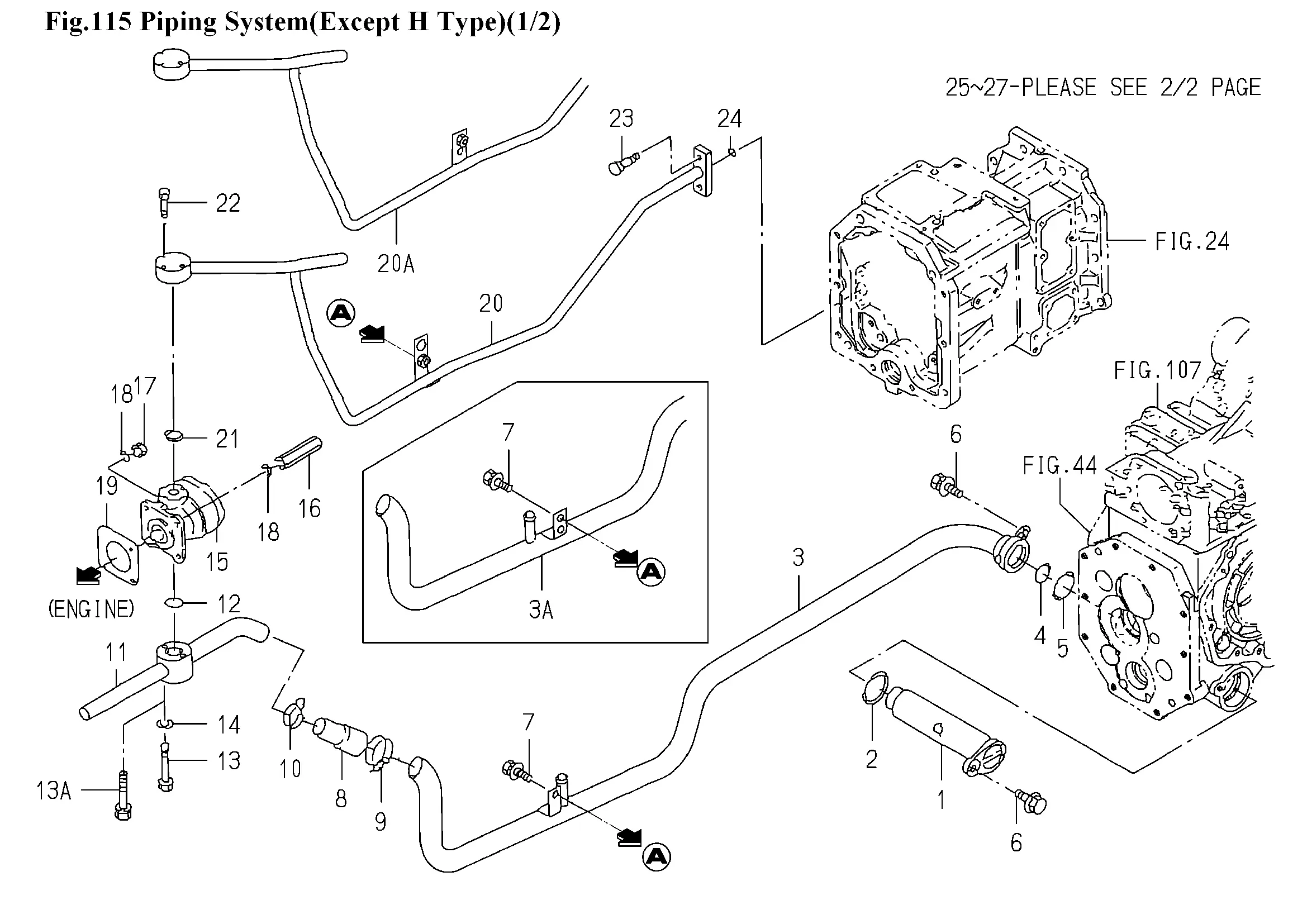

Hydraulikleitung
Ersatzteile (37 Teile)
1
FILTER/SUCTION ASSY
2
O-RING/1A,G45
3
1740-508-320-10
3A
1741-508-210-00
4
O-RING/1A,G35
5
O-RING/1A,G45
6
BOLT,SP/M10X20
7
BOLT,SP/M8X20
8
Schlauch
9
J061-232-040-00
10
CLAMP/WIRE/28-36
11
1740-508-530-40
12
O-RING/1B,P20
13
V200-260-605-00
13A
BOLT,S/M6X50/7T
14
V401-160-006-00
15
PUMP/GEAR ASSY
16
NUT/M08
17
NUT/M8
18
WASHER,SP/M8
19
PACKING,OIL PUMP
20
1740-508-310-10
20A
1741-508-200-00
21
O-RING/1B,P20
22
BOLT,S/M6X30/7T
23
BOLT,S/M8X25
24
O-RING/1B,P12
25
BOLT/M12X20
26
WASHER,SP/M12
27
O-RING/1B,P14
28
Ventil
29
O-RING/1B,P20
30
Hydraulikleitung
31
O-RING/1B,P14
32
O-RING/1B,P12
33
BOLT,S/M8X25
34
BOLT,S/M8X35
