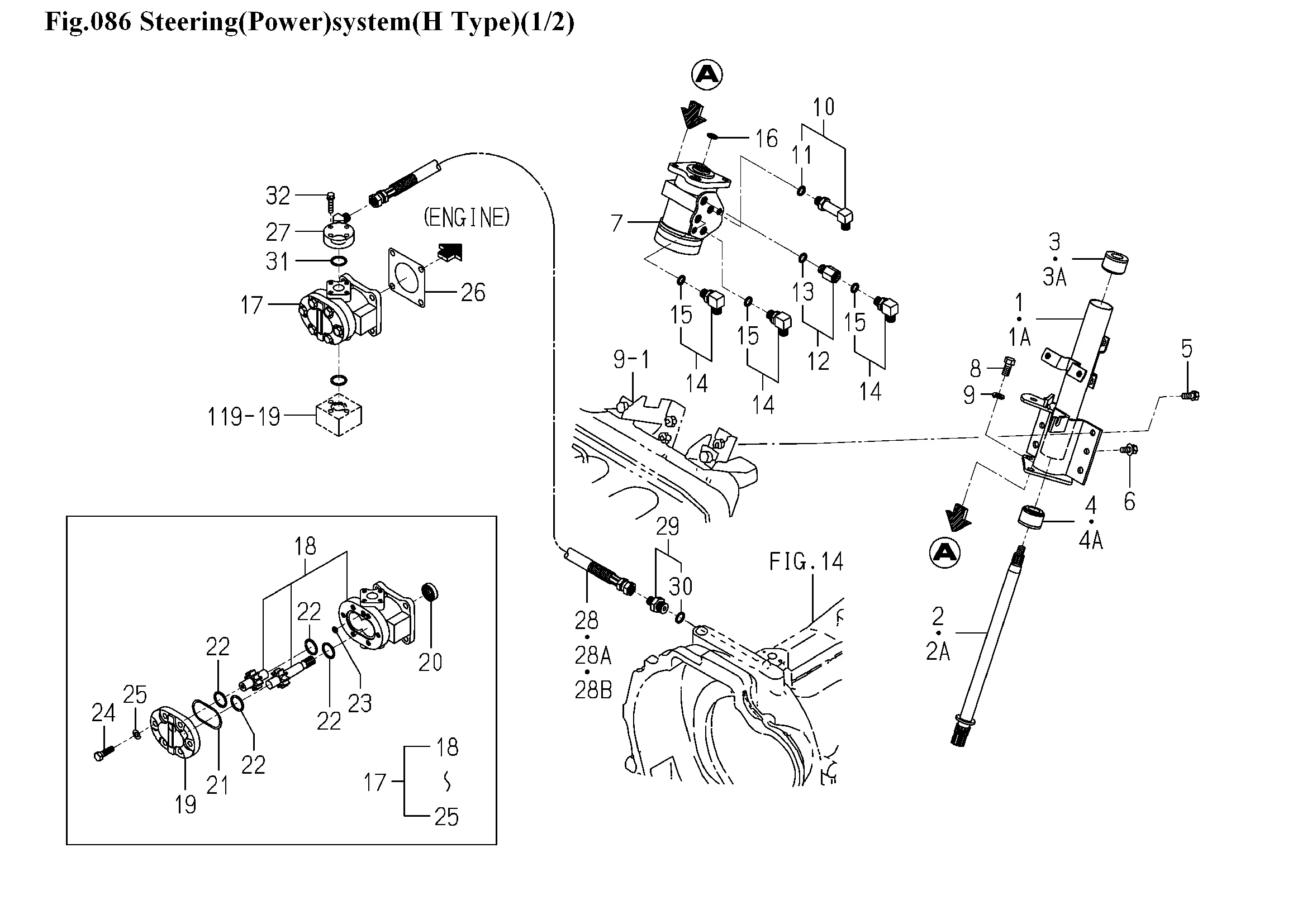

Hydraulische Lenkung
Ersatzteile (65 Teile)
1
Lenkrohr
1A
1740-407-560-30
2
Lenkwelle
2A
1740-407-570-10
3
Buchse, Lenkungsrohr
3A
1429-406-205-10
4
Buchse, Lenkungsrohr
4A
1429-406-205-10
5
BOLT,S/M8X20
6
BOLT,SP/M8X20
7
Lenkorbitrol
8
V203-261-002-00
9
WASHER,SP/M10
10
ELBOW/90DEG/L ASSY
11
O-RING/1B,P11
12
1740-407-520-00
13
O-RING/1B,P11
14
ADAPTER/L/G1/4 ASSY
15
O-RING/1B,P11
16
O-RING/1A,P12
17
Hydraulikpumpe, Lenkung
18
PUMP SET
19
COVER,PUMP
20
SEAL,OIL/TC14287
21
O-RING/1B,G50 HS90
22
O-RING/1B,P22
23
O-RING/1B,P6
24
K135-002-009-00
25
V401-170-008-00
26
PACKING,OIL PUMP
27
Flansch
28
3650-380-230-00
28A
8664-555-330-00
28B
3676-374-310-00
29
ADAPTER/PF3/8 ASSY
30
O-RING/1B,P14
31
O-RING/1B,P20
32
BOLT,S/M6X30/7T
33
Ventil, Drossel
33A
K256-001-000-10
34
FILTER/LINE/12X18X15
35
ELBOW/90DEG ASSY
36
O-RING/1B,P14
37
ADAPTER/G1/4-M1 ASSY
38
O-RING/1B,P11
39
Schlauch
40
1673-782-016-10
41
Schlauch, verstärkt
42
V200-360-604-50
43
V401-160-006-00
44
1421-621-038-00
45
Hydraulikleitung
46
CLAMP/28X55
47
V211-361-001-60
48
Lenkzylinder, Set verstärkt
48A
Lenkzylinder, Set verstärkt
49
ADAPTER/90DEG/PUMP
50
ADAPTER/45DEG
51
WASHER,SP/M12
52
V500-162-002-50
53
Halter
53A
1709-407-001-30
53B
Halter
54
V201-361-207-00
55
WASHER,SP/M12
