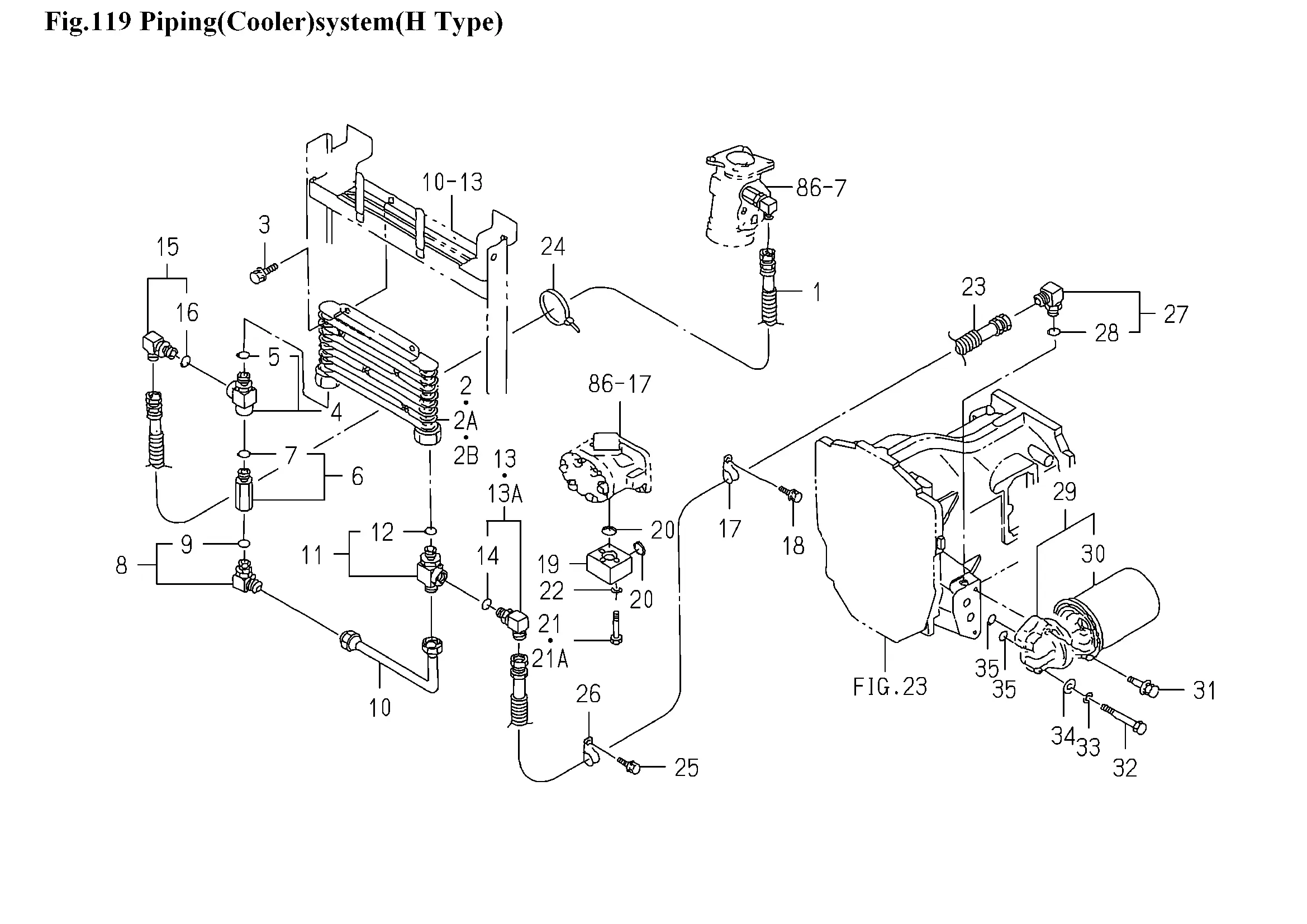

Ölkühler
Ersatzteile (39 Teile)
1
HOSE/1500 ASSY
2
Ölkühler
2A
1646-407-560-10
2B
Ölkühler
3
BOLT,SP/M8X16
4
ADAPTER/G3/8ASSY
5
O-RING/1B,P14
6
VALVE/CHECK ASSY
7
O-RING/1B,P14
8
ADAPTER/L/PF3/8 ASSY
9
O-RING/1B,P14
10
PIPE/CHECKVALVE COMP
11
ADAPTER/G3/8ASSY
12
O-RING/1B,P14
13
Winkelverschraubung
13A
ADAPTER/L/G3/8 ASSY
14
O-RING/1B,P14
15
ELBOW/90DEG ASSY
16
O-RING/1B,P14
17
HOLDER/12
18
BOLT,SP/M6X16
19
1709-407-002-00
20
O-RING/1B,P20
21
V200-260-604-50
21A
V200-360-604-50
22
V401-160-006-00
23
Hydraulikschlauch, 1600
24
1421-621-038-00
25
BOLT,SP/M8X16
26
CLIP B
27
ELBOW/90DEG ASSY
28
O-RING/1B,P11
29
1594-515-200-20
30
Hydraulikfilter (NMJ)
31
BOLT,SP/M10X30
32
V201-261-005-00
33
WASHER,SP/M10
34
V411-260-010-00
35
O-RING/1A,P20
