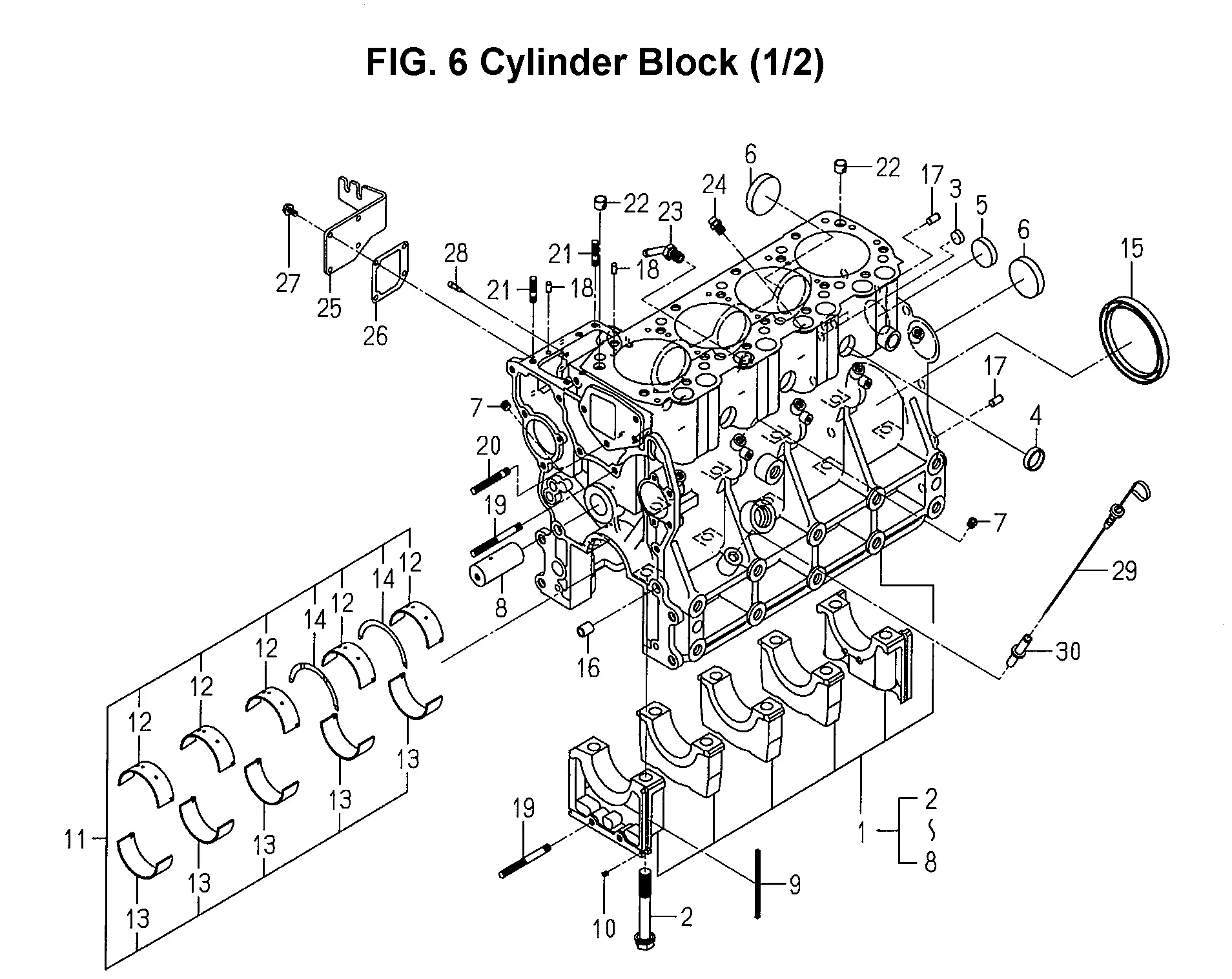

Motorblock
Ersatzteile (53 Teile)
1
6211-210-070-50
2
6209-000-014-00
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
Stopfen
8
6212-531-007-10
9
6211-258-003-00
10
SEAL,BEARING CAP/7
11
6211-510-011-00
12
Lagerschalen, oben
13
Lagerschalen, unten
14
Gleitlager
15
Wellendichtring
16
PIN/TUBE
17
PIN/STRAIGHT
18
6209-740-005-00
19
6209-300-014-00
20
STUD
21
STUD
22
DOWEL
23
PIPE/WATERDRAIN
24
NIPPLE
25
6211-291-026-00
26
6211-292-001-20
27
FLANGEBOLT/M6X12
28
PIN
29
Ölpeilstab
30
Führung
31
6213-311-044-00
32
PIPE/WATER/HOUSING
33
PIPE/WATER/HOUSING
34
PLUG/SCREW/SEAL
35
6213-342-001-10
36
6213-342-002-00
37
PIN/SPRING
38
6211-740-011-10
39
COVER/BREATHER ASSY
40
RUBBERFLANGE
41
SEAT/SPRING
42
SPRING
43
6211-179-019-00
44
SCREW/TAPPING
45
6211-742-018-10
46
GASKET
47
6213-119-001-00
48
BREATHER COMP
49
6211-749-004-30
50
FLANGEBOLT/M8X85
51
6209-366-009-10
52
CLAMP/WIRE/16-20
53
J061-220-024-00
