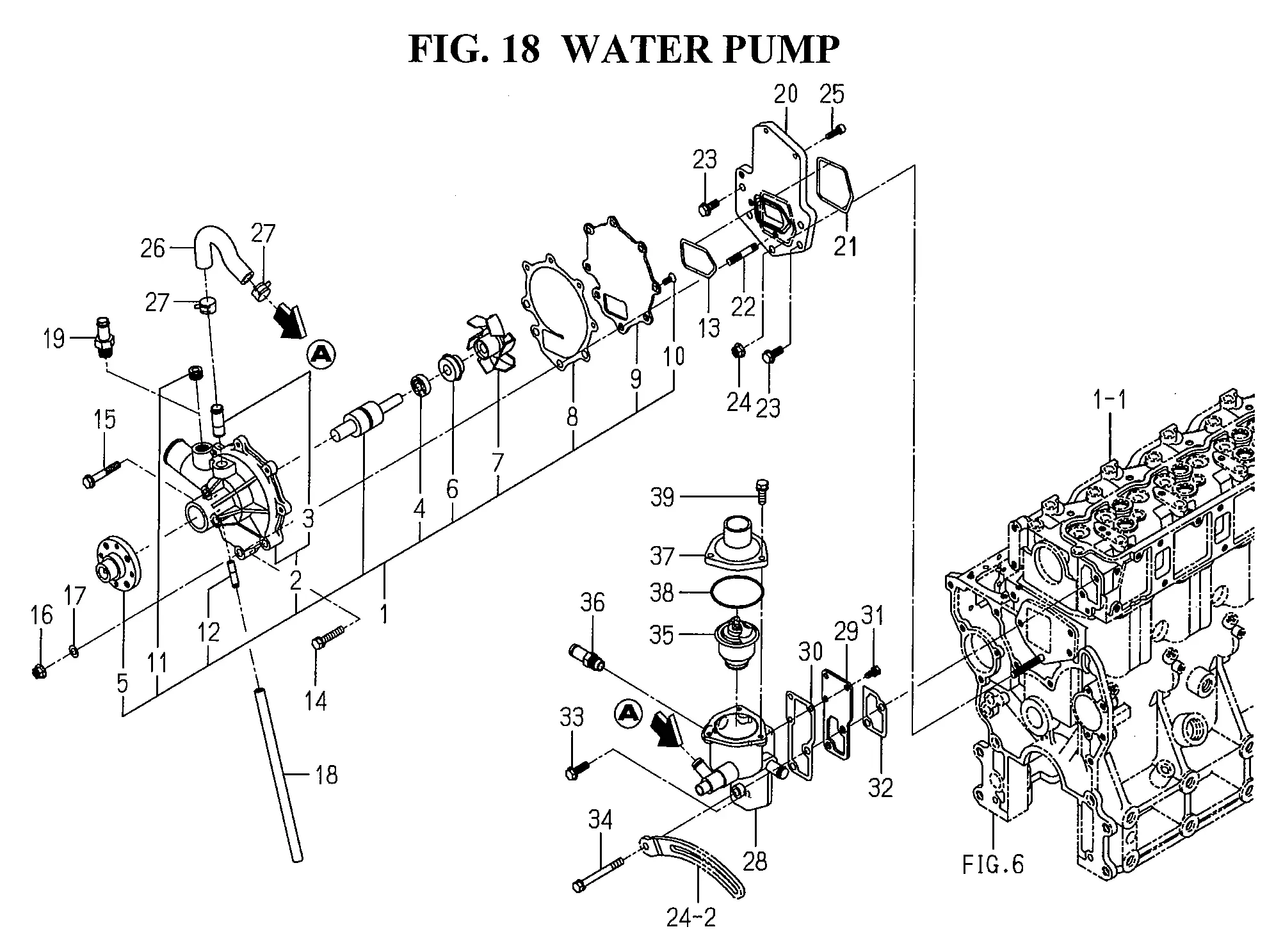

Wasserpumpe
Ersatzteile (39 Teile)
1
6213-610-009-40
2
6213-611-004-10
3
Rohr
4
Kugellager
5
6213-642-001-00
6
Wellendichtring
7
Flügelrad
8
Dichtung, Wasserpumpe
9
6213-612-007-00
10
SCREW/WATER PUMP
11
Stopfen
12
Rohr
13
O-RING/1B,G50 HS90
14
6901-910-840-00
15
FLANGEBOLT/M8X50
16
NUT/M08
17
WASHER/08X15.5X1.6
18
HOSE/RUBBER/230
19
PIPE/WATER/HOUSING
20
6213-619-018-10
21
O-RING/1A,G65
22
STUD
23
V231-360-802-00
24
NUT/M08
25
V220-540-602-00
26
HOSERUBBER
27
CLIP/HOSE/18-22
28
HOUSING/THERMOSTAT
29
COVER/HOUSING
30
GASKET/HOUSING
31
6209-030-097-00
32
6213-743-002-10
33
FLANGEBOLT/M8X25
34
6209-030-006-00
35
THERMOSTAT
36
6213-721-010-00
37
PIPE/WATEROUTLET
38
O-RING/1A,S63
39
BOLT,S/M6X20/7T
