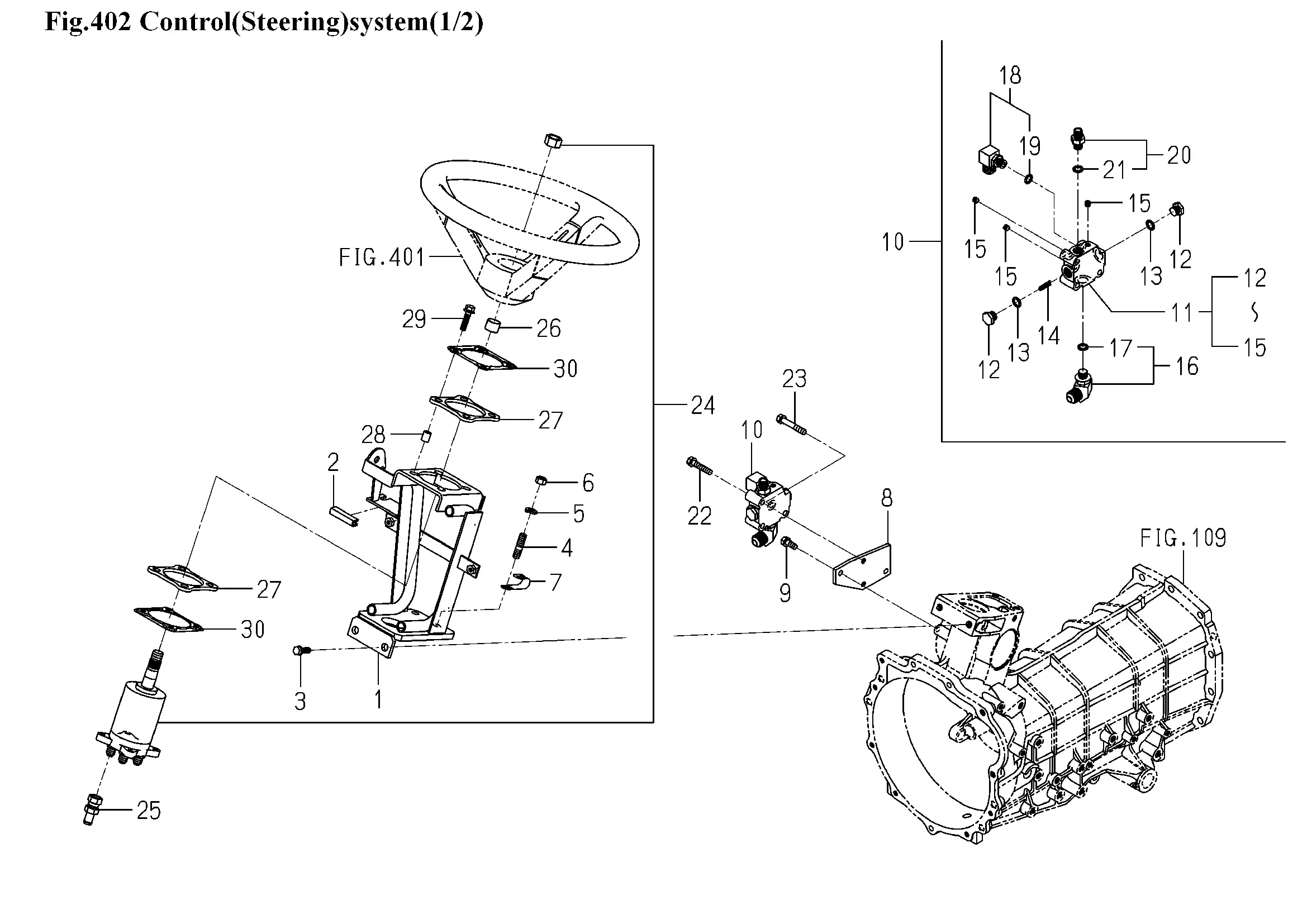

Lenkung
Ersatzteile (49 Teile)
1
1776-407-210-00
2
PAD/50
3
BOLT,S/M10X25/7T
4
STUD/M10X25/7T
5
WASHER,SP/M10
6
V304-460-010-00
7
CLAMP,HARNESS
8
1776-407-001-00
9
V211-560-802-00
10
VALVE/021/U SET
11
K233-021-000-00
12
PLUG
13
O-RING/1B,P12
14
K211-035-005-00
15
PLUG/SCREW/SEAL
16
1776-407-220-00
17
O-RING/1B,P11
18
ADAPTER/L/G1/4 ASSY
19
O-RING/1B,P18
20
ADAPTER/G1/4
21
O-RING/1B,P11
22
V211-260-804-00
23
V211-260-805-00
24
CONTROLLER/STEERING
25
ADAPTER/G1/4
26
INSULATOR/15
27
PAD/PS
28
COLLAR/08X12X15
29
V211-660-803-50
30
PLATE/CONTROLLER
31
CYLINDER ASSY
32
ROD/PISTON COMP
33
PACKING/PISTON
36
O-RING/1B,P29
37
O-RING/1A,S38
38
ADAPTER/L/G1/4 ASSY
39
O-RING/1B,P11
40
ADAPTER
41
WASHER,SP/M12
42
NUT,CASTLE/M12 P1.25
43
V500-162-502-50
44
HOSE/285 ASSY
45
HOSE/LH ASSY
46
BAND,WIRE/140
47
HOLDER/JE/9-9
48
BOLT,SP/M8X16
49
HOSE/700
50
J061-112-022-00
51
BAND,WIRE/140
