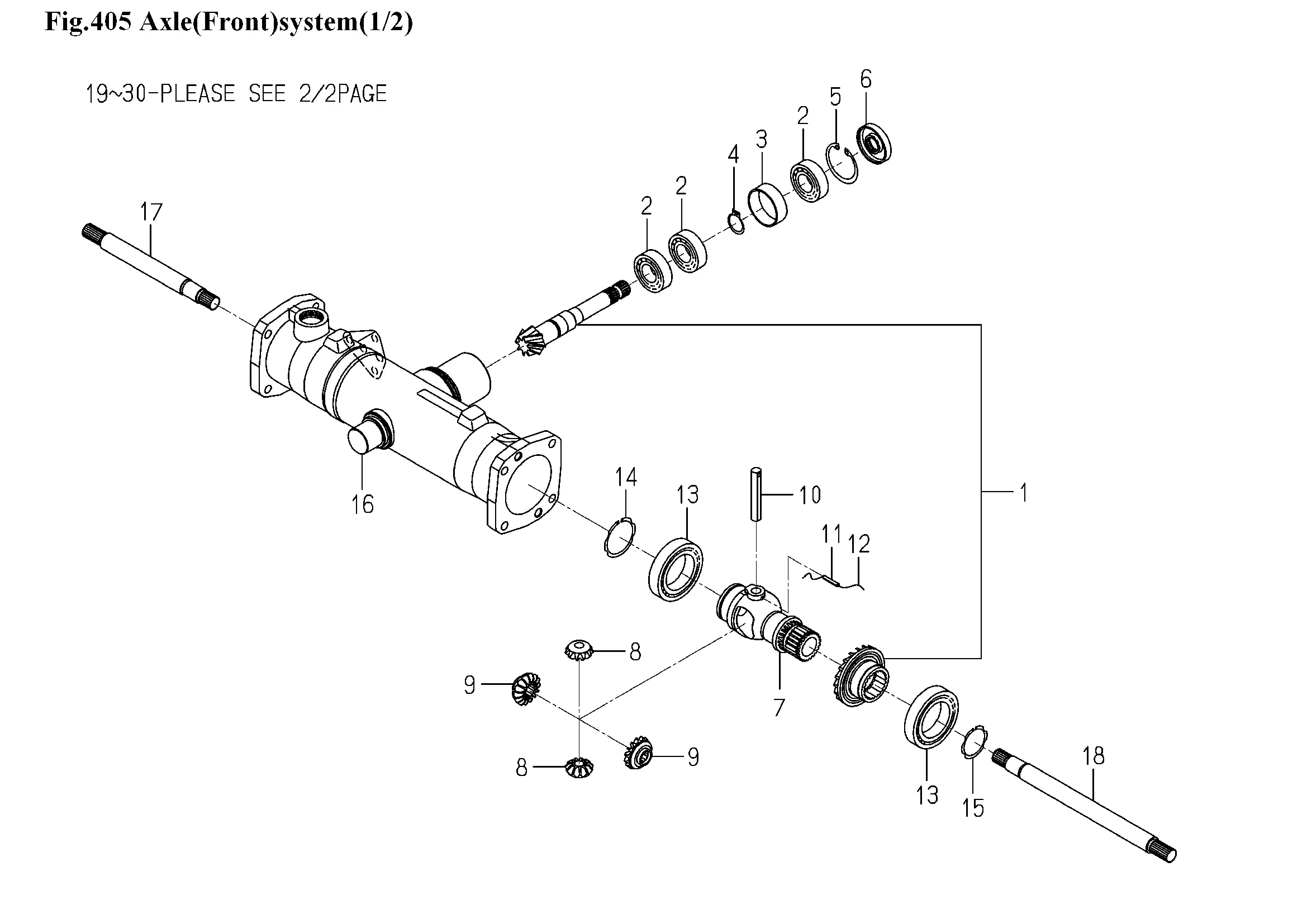

Differenzial,Gehäuse, Achsantrieb
Ersatzteile (59 Teile)
1
GEAR/BEVEL/08-2 SET
2
1725-432-109-00
3
COLLAR/48X52X17
4
1725-218-109-00
5
1725-219-121-00
6
1776-432-003-00
7
CASE/DIFFERENTIAL/FR
8
PINION/BEVEL/11
9
GEAR/BEVEL/15
10
1725-432-714-00
11
1725-432-715-00
13
1725-432-801-00
14
1725-432-113-00
15
1725-432-114-00
16
1776-433-002-00
17
1776-435-001-00
18
1776-435-002-00
19
1776-434-001-00
20
GEAR/BEVEL/11
21
1776-434-024-00
22
1725-308-103-00
23
GEAR/BEVEL/15
24
1725-212-105-00
25
1776-434-002-10
26
1776-434-007-00
27
1776-434-005-00
28
1776-434-027-00
29
SEAL/OIL ASSY
30
BEARING,RB/6907
31
1776-434-032-00
32
1725-308-102-00
33
1776-434-031-00
34
1776-434-021-00
35
1776-434-008-00
36
SEAL/QLNY35571116
37
1776-434-009-00
38
1725-434-116-00
39
1725-201-806-00
40
1776-434-006-00
41
PIN/B
42
1776-434-041-00
43
PLUG/SCREW/R1/4
44
1725-434-114-00
45
1776-434-042-00
46
ARM/KNUCKLE/LH/U
47
ARM/KNUCKLE/RH
48
1776-434-013-00
49
1776-434-035-00
50
1776-434-043-00
51
1776-434-220-00
52
1776-434-038-00
53
1776-433-003-00
54
PIN/B
55
1776-433-004-00
56
1776-434-042-00
57
1725-501-118-00
58
1776-433-005-00
59
CLAMP,HARNESS
60
1776-433-006-00
