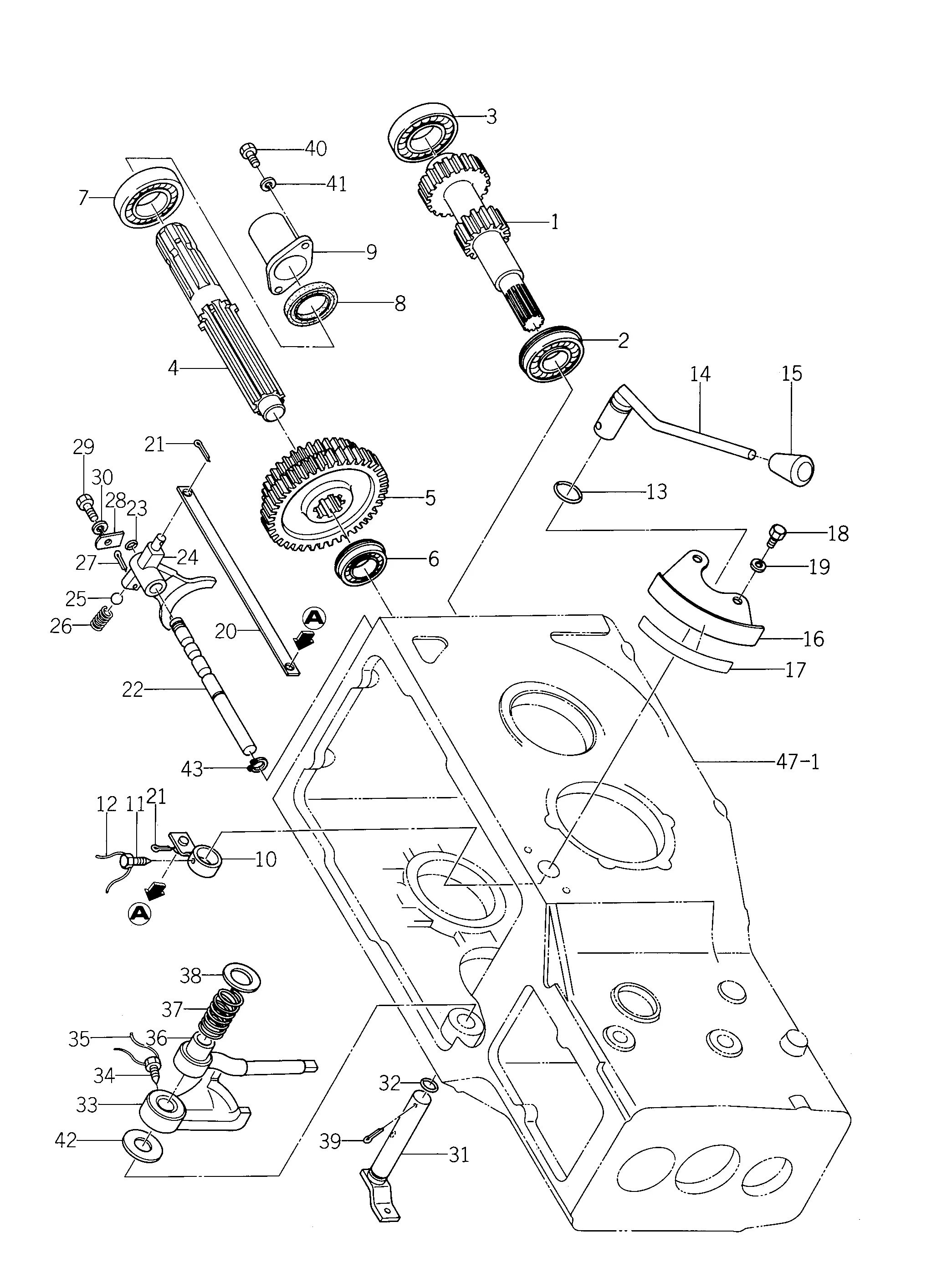

Heck PTO
Ersatzteile (41 Teile)
1
Zahnwelle
2
Kugellager 6305 NR
3
BEARING,RB/6207
4
Welle
5
Zahnrad
6
1426-213-001-00
7
BEARING,RB/6207
8
SEAL,OIL/TC35558
9
1421-212-004-00
10
1417-216-200-00
11
1415-216-006-00
13
O-RING/1A,P21
14
Schalthebel
15
4106-105-303-00
16
1431-286-002-00
17
1431-938-004-00
18
BOLT/M8X16
19
WASHER,SP/M8
20
1417-216-004-00
21
V500-152-501-80
22
Schaltwelle
23
O-RING/1A,P10
24
Schaltgabel
25
V680-100-001-00
26
SPRING,SHIFTER
27
V500-153-002-50
28
Stopper
29
BOLT/M8X16
30
WASHER,SP/M8
31
1424-303-200-00
32
O-RING/1A,P16
33
1407-303-002-00
34
Schraube M10x20
36
1407-303-001-00
37
Feder, Differenzialschalt.
38
V413-160-018-00
39
V500-154-003-00
40
V200-260-601-20
41
V401-160-006-00
42
1424-303-001-00
43
RING,SNAP/12 C
