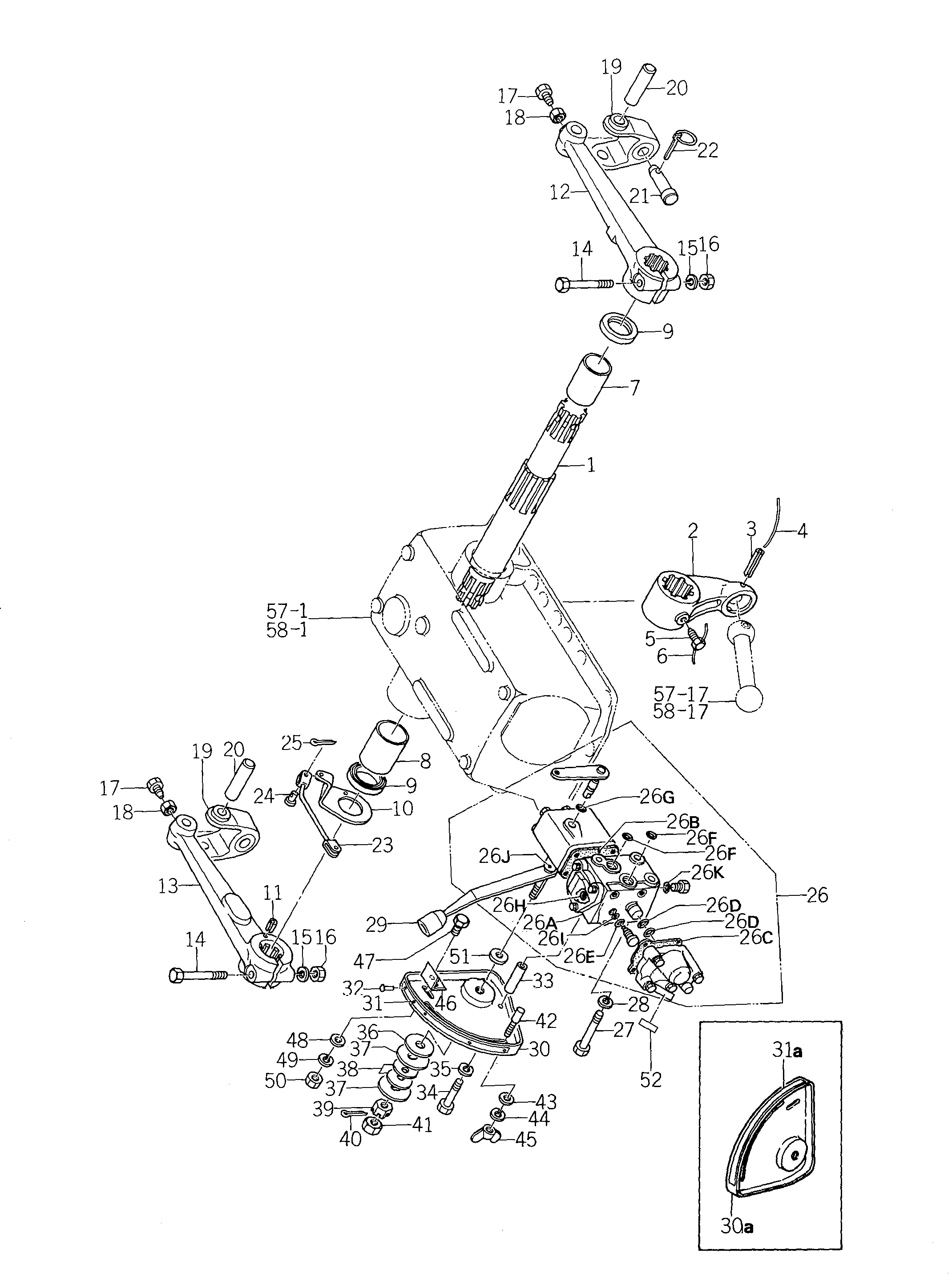

Hubarme
Ersatzteile (63 Teile)
1
Hubwelle
2
1424-503-001-00
3
V580-140-805-60
5
BOLT
7
Lager
8
Lager
9
Wellendichtring
10
1415-503-002-00
11
V580-140-601-00
12
Hubarm
13
1417-503-001-00
14
Schraube
15
WASHER,SP/M12
16
V300-460-012-00
17
Stellschraube
18
V302-260-008-00
19
Gabel
20
1415-503-003-00
21
7963-613-004-00
22
Klappstecker 10mm
23
Stange
24
1405-502-005-00
25
V500-152-501-50
26
1424-500-051-20
26A
1424-505-001-00
26B
Dichtung
26C
Dichtung
26D
O-RING/1A,P22
26E
O-RING/1A,P15
26F
O-RING/1A,P16
26G
O-RING/1A,P9
26H
O-RING/1A,P12
26I
O-RING/1A,P10
26J
1424-505-004-00
26K
O-RING/1A,P18
27
V201-260-808-50
28
WASHER,SP/M8
29
Griff, Hydraulikhebel
30
1415-505-100-10
30a
1423-505-210-00
31
1431-930-001-00
31a
Aufkleber
32
V291-202-000-60
33
1415-505-008-00
34
V201-260-806-50
35
WASHER,SP/M8
36
1415-505-009-00
37
1415-505-010-00
38
Feder, Scheibe/Handgas
39
V320-260-012-00
40
V500-153-002-80
41
V332-260-012-00
42
1415-505-012-00
43
Scheibe
44
WASHER,SP/M8
45
V370-160-008-00
46
1415-505-013-00
47
BOLT/M8X16
48
Scheibe
49
WASHER,SP/M8
50
V300-260-008-00
51
1406-926-302-00
52
1431-935-003-00
