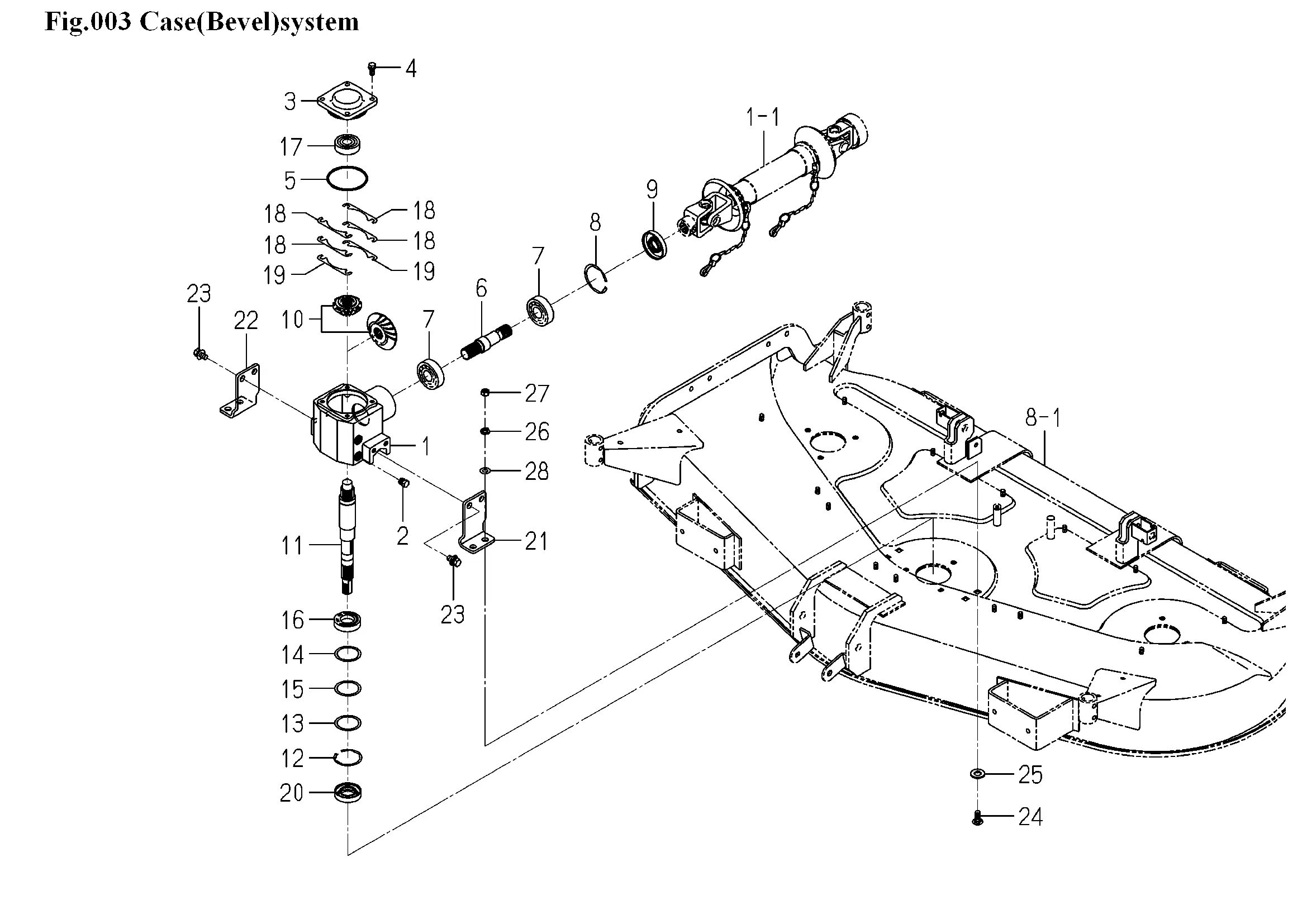

Winkelgetriebe
Ersatzteile (28 Teile)
1
8595-201-011-12
2
PLUG,DRAIN (1/4)
3
8595-201-012-12
4
BOLT,S/M8X20
5
O-RING/1A,G80
6
SHAFT/INPUT
7
1594-218-001-00
8
RING,SNAP/R62
9
SEAL/OIL
10
GEAR/BEVEL/25-1 SET
11
SHAFT/OUTPUT
12
V707-140-055-00
13
WASHER/45X55X01
14
SHIM/0.1
15
SHIM/0.2
16
BEARING,RB/6006
17
BEARING/BALL/6304SH2
18
SHIM/0.1
19
SHIM/0.2
20
SEAL,OIL/TC305512
21
8654-201-042-11
22
8654-201-043-11
23
V211-661-002-00
24
BLOT/M10X25
25
WASHER,PL/M14
26
NUT/M10
27
WASHER,SP/M10
28
V411-260-010-00
