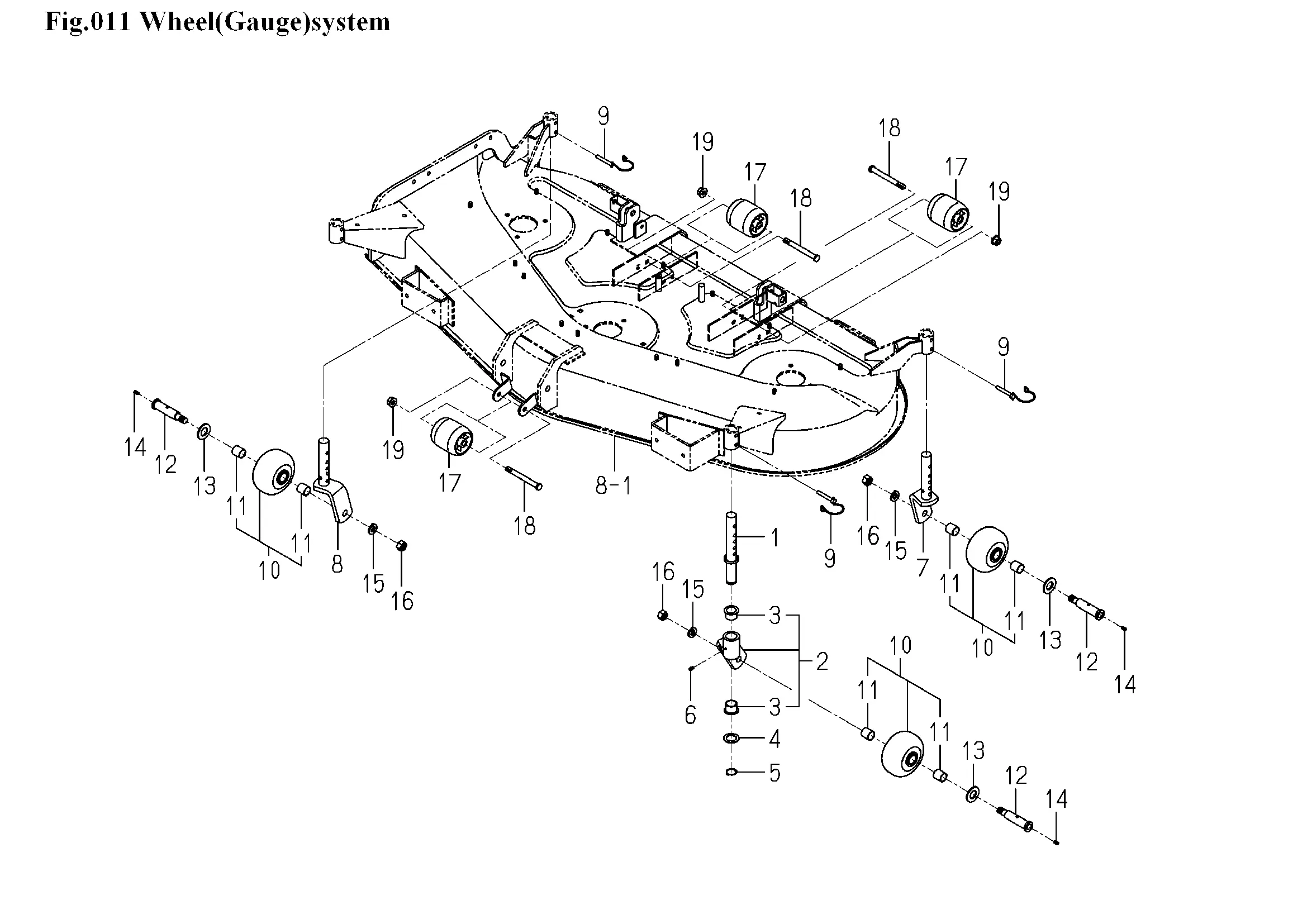

Laufräder
Ersatzteile (19 Teile)
1
PIN/GAUGE COMP
2
FORK/WHEEL/FRON ASSY
3
BUSH/26X30X20
4
WASHER/27X40X2
5
RING,SNAP/25 C
6
NIPPLE,GREASE
7
FORK/WHEEL/REAR/LH
8
FORK/WHEEL/REAR/RH
9
PIN/08X60 COMP
10
WHEEL/GAUGE ASSY
11
8654-501-283-00
12
PIN/22X106
13
WASHER,PL/M22
14
NIPPLE,GREASE
15
WASHER,SP/M16
16
NUT/M16/7T
17
8595-501-001-20
18
8663-501-051-00
19
NUT/WASHER/M12
