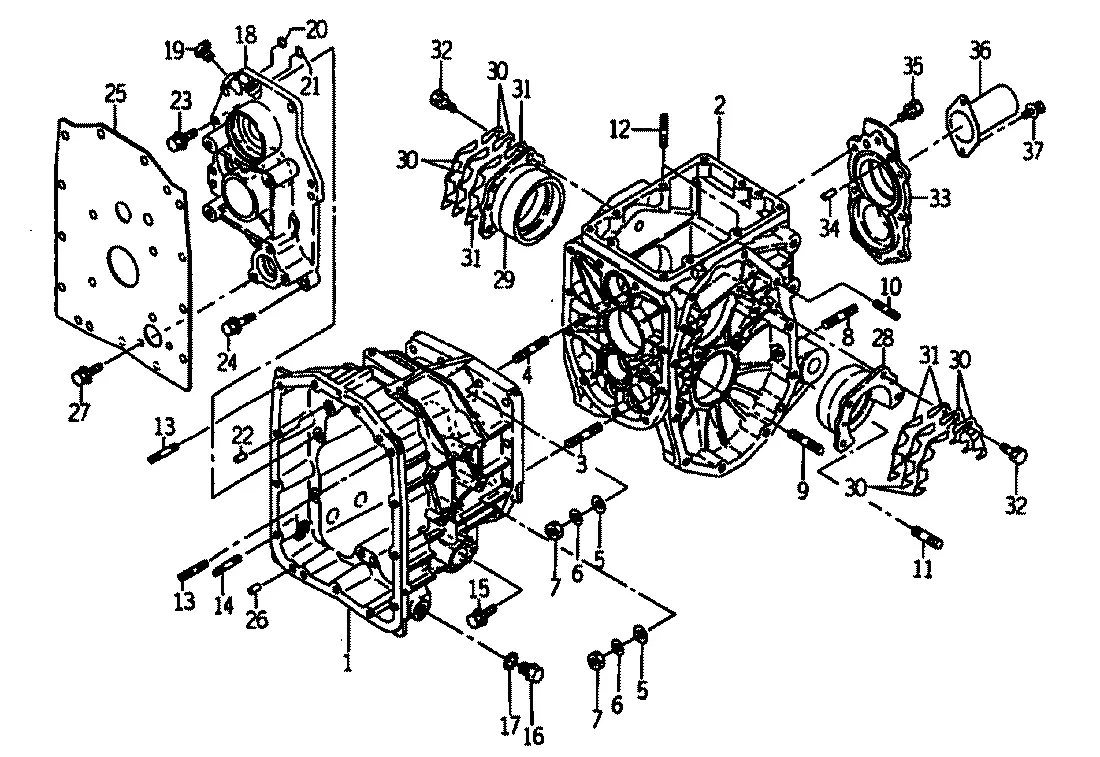

Getriebegehäuse
Ersatzteile (37 Teile)
1
1688-201-051-10
2
Achstrichter
3
V252-341-003-50
4
Stiftschraube, M10x35
5
V411-260-010-00
6
WASHER,SP/M10
7
NUT/M10
8
V251-261-202-5D
9
V252-261-004-00
10
BOLT/M10X55
11
V252-341-204-50
12
STUD/M10X30/7T
13
V252-341-002-00
14
STUD/M10X25/7T
15
BOLT,SP/M10X50/7T
16
PLUG,DRAIN
17
Dichtring, AblasSchraube
18
Deckel
19
1326-706-002-10
20
O-RING/1B,P7
21
O-Ring
22
PIN,ST,B/10X24
23
BOLT,SP/M10X35/7T
24
BOLT,SP/M10X40/7T
25
Platte
26
PIN,KNOCK
27
V211-660-802-00
28
METAL,DIFF-CASE LH
29
METAL,DIFF-CASE RH
30
Scheibe, Hinterachsdifferent./A
31
Scheibe, Hinterachsdifferent/B
32
BOLT,S/M8X25/7T
33
METAL/PTO
34
PIN,ST,B/10X24
35
BOLT,S/M8X30
36
1444-314-009-10
37
V210-360-602-00
