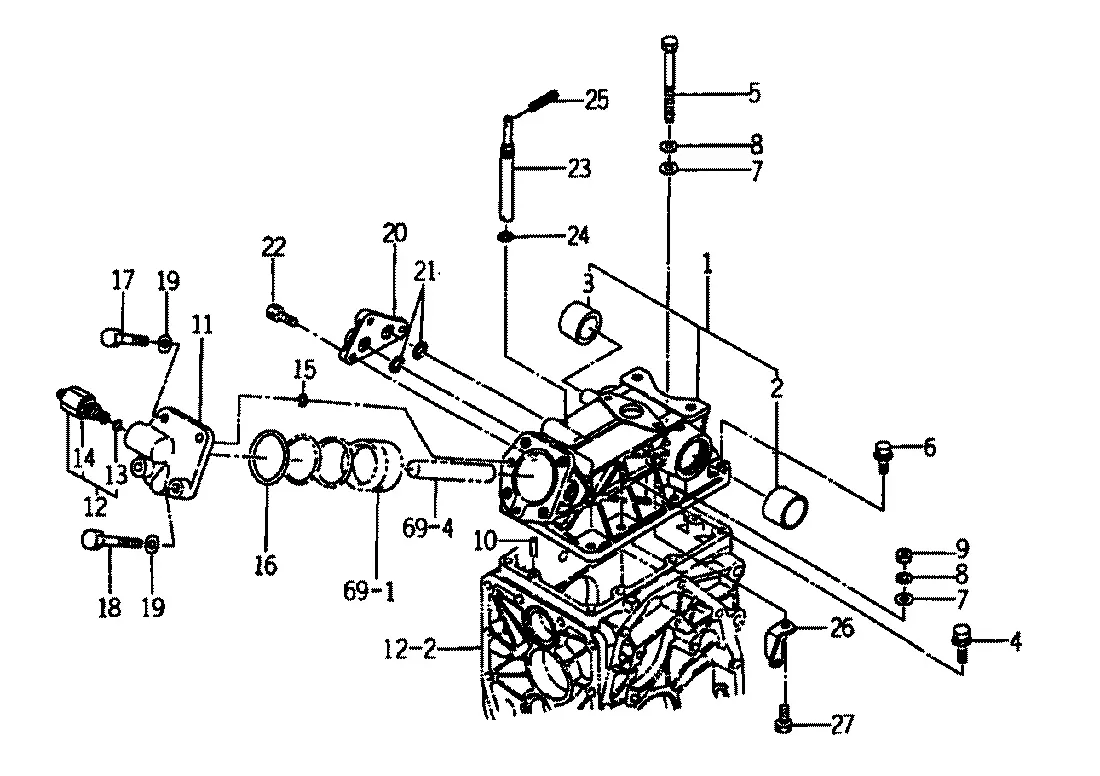

Gehäuse, Heckhydraulik
Ersatzteile (27 Teile)
1
Hydrauliksteuerblock
2
BUSH/40X43X30
3
BUSH/35X39X30
4
BOLT,SP/M10X40/7T
5
V201-361-010-00
6
V211-661-004-50
7
V411-260-010-00
8
WASHER,SP/M10
9
V304-460-010-00
10
PIN,ST,A/8X18
11
HEAD,SYLINDER
12
K250-001-000-00
13
O-RING/1B,P12
14
K250-001-009-00
15
O-RING/1B,P12
16
O-RING/1B,G60
17
BOLT/M12X40/7T
18
V201-361-206-00
19
WASHER,SP/M12
20
Gehäusedeckel, Hydraulikblock
21
O-RING/1B,P12
22
BOLT,S/M8X25
23
PIN,ADJ
24
O-RING/1A,P7
25
PIN,SPRING 3X32
26
HOOK,SPRING
27
BOLT/M8X16
