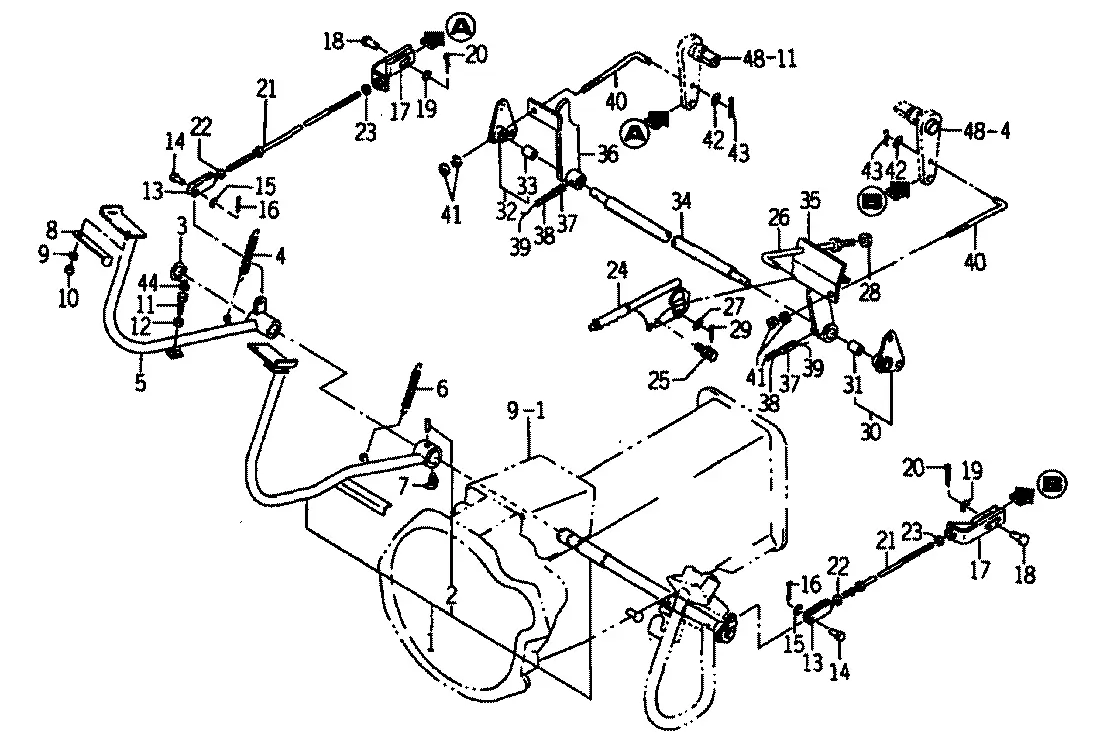

Bremspedal, Gestänge
Ersatzteile (43 Teile)
1
1684-312-300-10
2
PIN,TAPER/8X50
3
RING,SNAP/22 C
4
Feder
5
1682-312-240-20
6
Feder
7
NIPPLE,GREASE/PT1/8
8
1684-312-001-00
9
NUT/M8
10
P120-605-031-00
11
BOLT/TRIMED
12
NUT/M8
13
Gabel, Bremsgestänge li
14
PIN,YOKE A
15
WASHER,PL/M8
16
PIN,SPLIT/2X20
17
1684-312-260-10
18
PIN,YOKE A
19
WASHER,PL/M8
20
V500-163-002-00
21
1684-312-230-00
22
NUT/LH/M08
23
NUT/M8
24
Handbremshebel
25
BOLT,SP/M8X25
26
1682-312-005-10
27
WASHER,PL/M8
28
NUT/M8
29
PIN,SPLIT/2.5X20
30
Halter, li
31
BUSH
32
Halter, re
33
BUSH
34
Welle
35
1684-312-210-00
36
1684-312-220-00
37
PIN,SPRING/8X28 W
38
Sicherungsstift 5x28
40
1602-313-003-10
41
NUT/M8
42
WASHER,PL/M8
43
PIN,SPLIT/2.5X20
44
RUBBER,CUSHION
