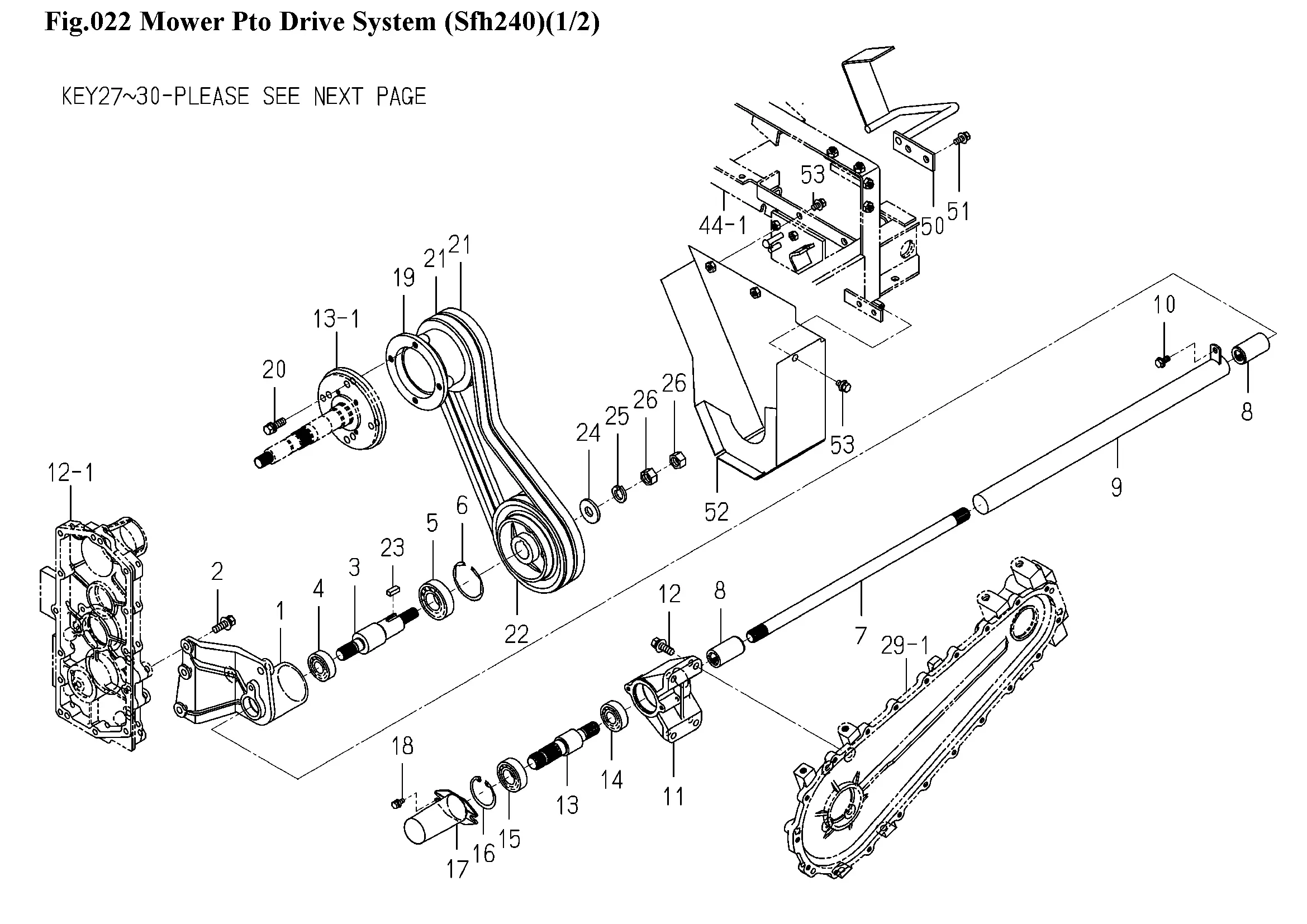

Front PTO (SFH 240)
Ersatzteile (53 Teile)
1
PTO-Gehäuse
2
BOLT,SP/M10X30/7T
3
Welle
4
V600-450-620-40
5
BEARING,RB/6206SS
6
RING,SNAP/R62
7
Welle
8
COUPLING/18X30X55
9
Schutz, Front PTO, 540
10
FLANGEBOLT/M8X16
11
Lagerbock
12
BOLT,SP/M10X30/7T
13
Welle, PTO
14
V600-450-620-40
15
V600-450-620-50
16
RING,SNAP/52 C
17
1444-314-009-10
18
BOLT,SP/M6X16
19
1771-244-004-20
20
V211-561-003-00
21
Keilriemen
22
PULLEY/V2B155
23
KEY/08X07X20
24
WASHER
25
WASHER,SP/M16
26
NUT/M16
27
PIN/TENSION
28
WASHER,SP/M12
29
V411-260-012-00
30
Arm
31
BUSH/15X17X11
32
PULLEY/FT80X47
33
Sicherungsring 15x1
34
BOLT/M8X45/7T
35
NUT/M8
36
Feder
37
WASHER
38
Sicherungsring 15x1
39
PIN/TENSION
40
WASHER,SP/M12
41
V411-260-012-00
42
ARM/PTOBRAKE ASSY
43
BUSH/15X17X11
44
SPRING/HT033
45
WASHER
46
Sicherungsring 15x1
47
Bremsklotz
48
V301-260-006-00
49
V401-160-006-00
50
GUIDE/BELT/UPPE COMP
51
BOLT,SP/M8X20
52
Abdeckung, Front PTO
53
BOLT,SP/M8X16
