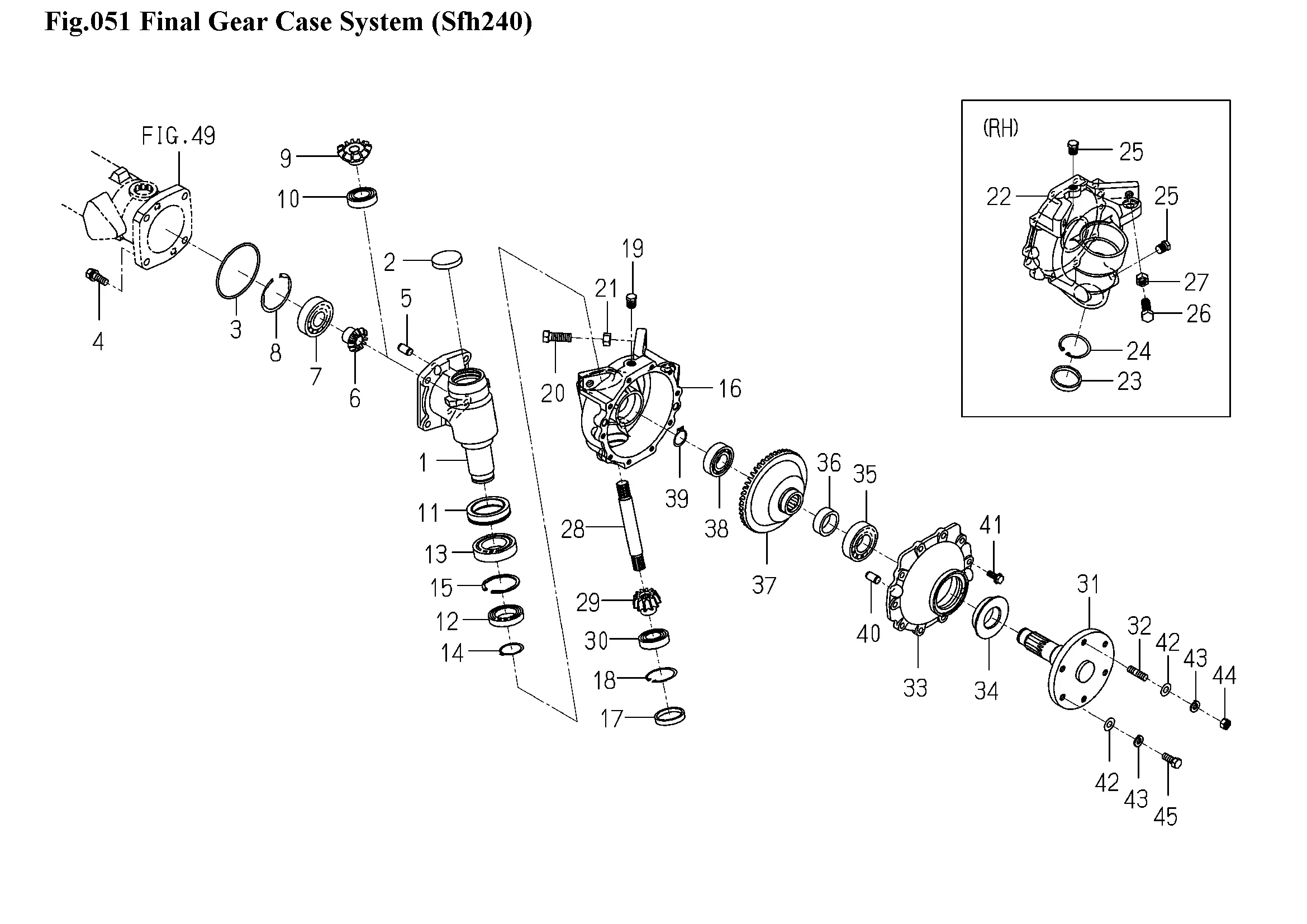

Achsschenkel (SFH240)
Ersatzteile (45 Teile)
1
Achsschenkel
2
1564-201-003-00
3
O-RING/1A,G90
4
V211-561-003-00
5
PIN,ST,B/10X24
6
Kegelrad, Z11
7
V600-410-630-50
8
RING,SNAP/R62
9
Kegelrad, Z15
10
V600-410-600-50
11
SEAL/OIL ASSY
12
BEARING,RB/6907
13
V600-410-600-80
14
RING,SNAP/35 C
15
V707-140-055-00
16
Achstrichter, LH
17
1564-201-003-00
18
RING,SNAP/47 C
19
PLUG/SCREW/SEAL
20
V201-361-203-50
21
V304-460-012-00
22
Achstrichter, RH
23
1564-201-003-00
24
RING,SNAP/47 C
25
PLUG/SCREW/SEAL
26
V201-361-203-50
27
V304-460-012-00
28
Welle
29
Zahnrad
30
V600-410-600-50
31
Radnabe
32
STUD/M10X20/7T
33
Deckel, Vorderachse
34
SEAL/QLNY35571116
35
BEARING/BALL
36
Distanzbuchse
37
1672-434-008-10
38
BEARING/BALL 6205SH2
39
RING,SNAP/25 C
40
PIN,ST,B/10X24
41
V231-360-802-00
42
V411-260-010-00
43
WASHER,SP/M10
44
V304-460-010-00
45
V201-361-002-50
