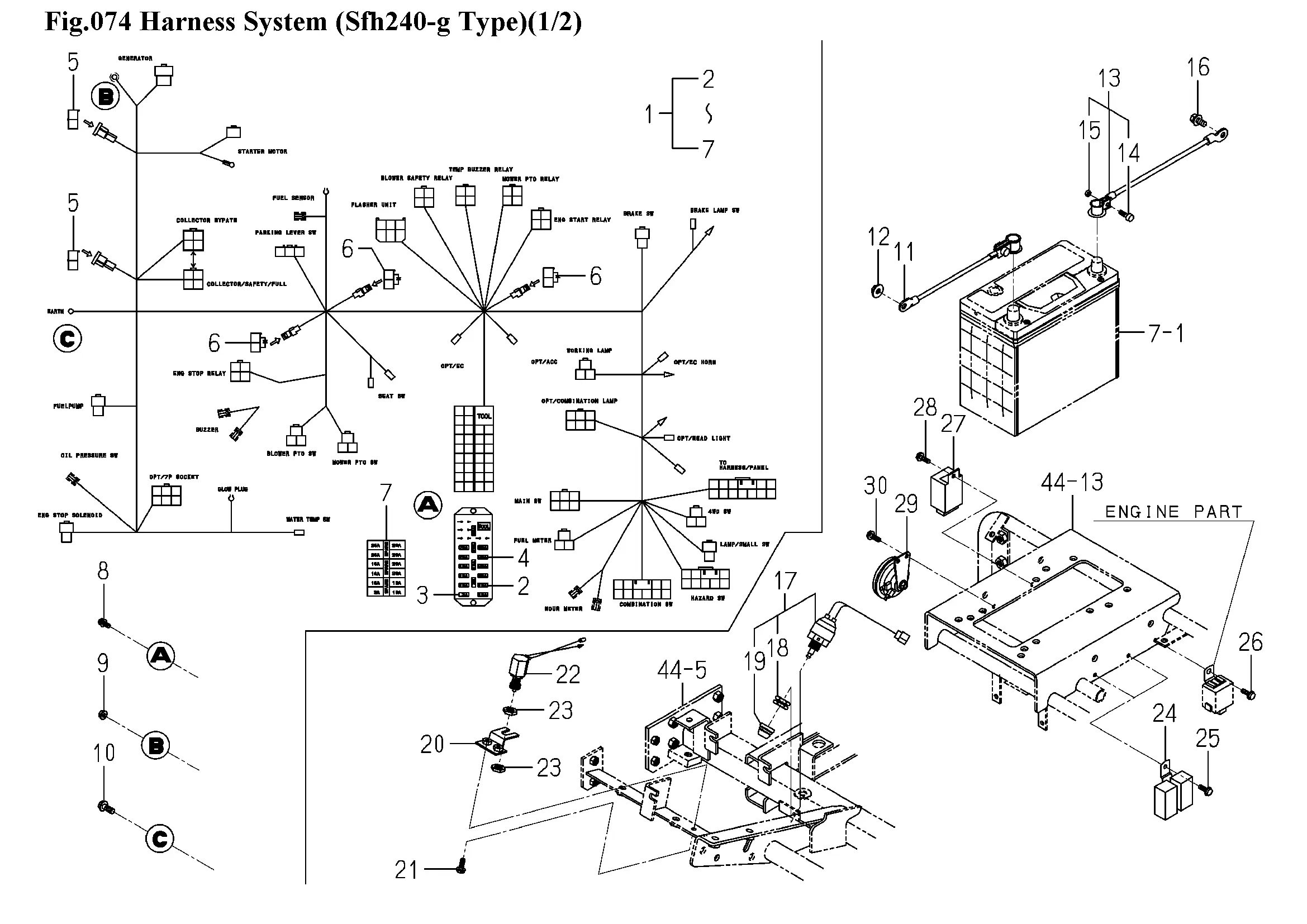

Elektrik (SFH240,G-Type)
Ersatzteile (46 Teile)
1
HARNESS/MAIN/G ASSY*
2
FUSE/BLADE/32V10A
3
Sicherung 3A (mini)
4
FUSE/BLADE/32V20A
5
FUSE/SLOW BLOW/40A
6
DIODE/3.0A
7
LABEL/FUSE
8
SCREW,SP/M6X16
9
NUT/WASHER/M6
10
V231-360-802-00
11
1771-690-210-00
12
V363-260-008-00
13
CABLE/EARTH ASSY
14
1725-112-212-00
15
1725-112-213-00
16
BOLT,SP/M8X20
17
Startsicherheitsschalter
18
Mutter, Schalter Schalter, SL14H
19
Abdeckung
20
1771-690-520-00
21
FLANGEBOLT/M6X16
22
SWITCH,STOP
23
NUT,LOCK
24
RELAY/4P-2 ASSY
25
FLANGEBOLT/M6X16
26
FLANGEBOLT/M6X16
27
1739-681-220-10
28
FLANGEBOLT/M6X16
29
Hupe
30
FLANGEBOLT/M6X16
31
SWITCH,MERIT
32
SCREW/M03X20
33
PLATE,SWITCH
34
SWITCH,MERIT
35
SCREW/M03X20
36
PLATE,SWITCH
37
1770-623-001-00
38
BOLT,SP/M6X16
39
SWITCH,MERIT
40
SCREW/M03X20
41
PLATE,SWITCH
42
Bremslichtschalter
43
ARM
44
FLANGEBOLT/M6X20
45
1342-402-006-00
46
BAND,WIRE/140
