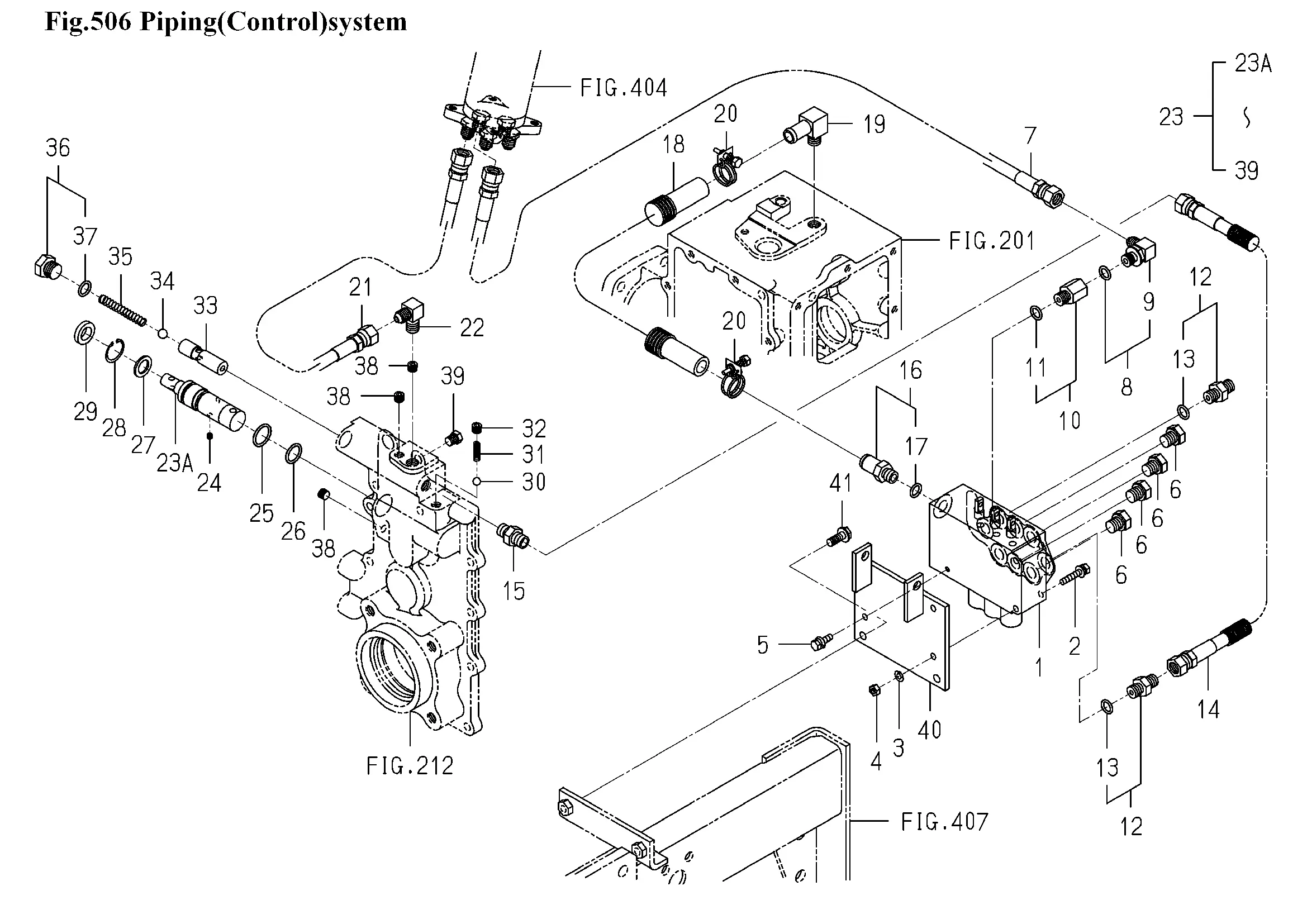

Hydr. Leitungen (Steuervent., Lenkung)
Ersatzteile (47 Teile)
1
Steuerventil
2
V210-360-603-50
2
------
3
V401-160-006-00
4
V301-260-006-00
5
V210-360-602-00
5
------
6
Stopfen
7
------
7
Schlauch 1700
8
ADAPTER/L/G1/4 ASSY
9
O-RING/1B,P11
10
1740-407-520-00
11
O-RING/1B,P11
12
Adapter
13
O-RING/1B,P11
14
Schlauch 500
15
Adapter
16
Adapter
17
O-RING/1B,P11
18
------
18
1771-509-001-10
19
8561-501-010-00
20
J061-220-024-00
21
------
21
HOSE/HYDRO/1500 ASSY
22
ADAPTER/L/G1/4XR1/4
23
------
23A
Ventil
24
Stopfen, M6x0,7
25
O-RING/1B,P21
26
O-RING/1B,P18
27
PLATE/STOPPER
28
RING,SNAP/25 C
29
SEAL/DUST
30
BALL,STEEL
31
SPRING/HC022
32
PLUG/SCREW
33
BODY
34
BALL,STEEL
35
SPRING/HC062
36
PLUG/G3/8 ASSY
37
O-RING/1B,P14
38
PLUG/SCREW
39
PLUG/SCREW/SEAL
40
1771-509-220-00
41
V231-360-802-00
