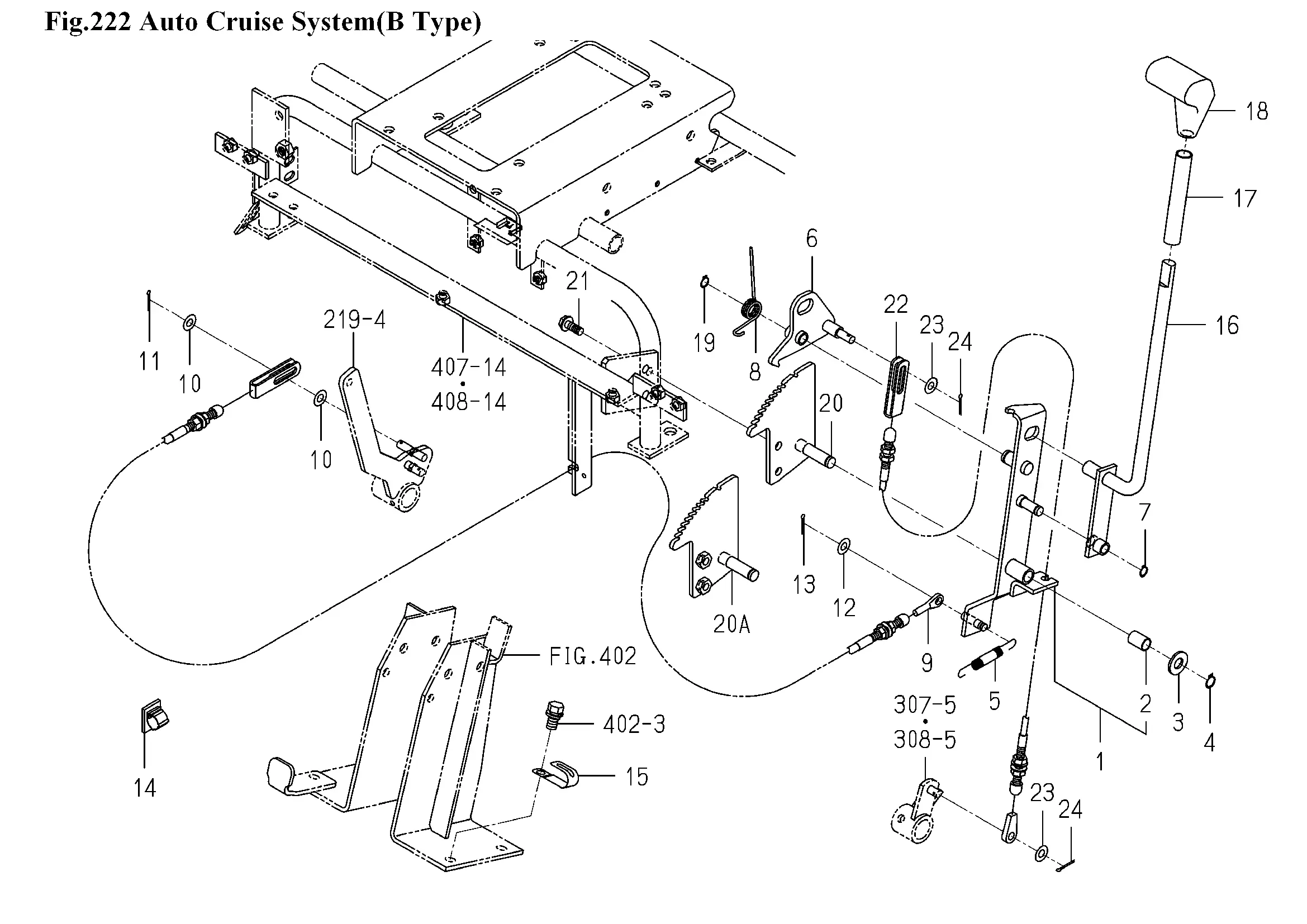

Tempomat
Ersatzteile (26 Teile)
1
Arm , Tempomat
2
3650-440-014-00
3
V411-260-012-00
4
RING,SNAP/12 C
5
SPRING,TENSION/86
6
------
6
1770-274-230-10
7
RING,SNAP/10 C
8
SPRING/HT018
9
Bowdenzug, Tempomat
10
WASHER,PL/M8
11
PIN,SPLIT/2.5X20
12
WASHER,PL/M8
13
PIN,SPLIT/2.5X20
14
1650-652-014-00
15
CLAMP,HARNESS
16
1771-275-220-00
17
TUBE/14X17X90
18
GRIP/MAIN
19
RING,SNAP/10 C
20
------
20A
1770-274-250-10
21
V231-360-802-00
22
Bowdenzug, Entriegelung
23
WASHER,PL/M8
24
PIN,SPLIT/2.5X20
