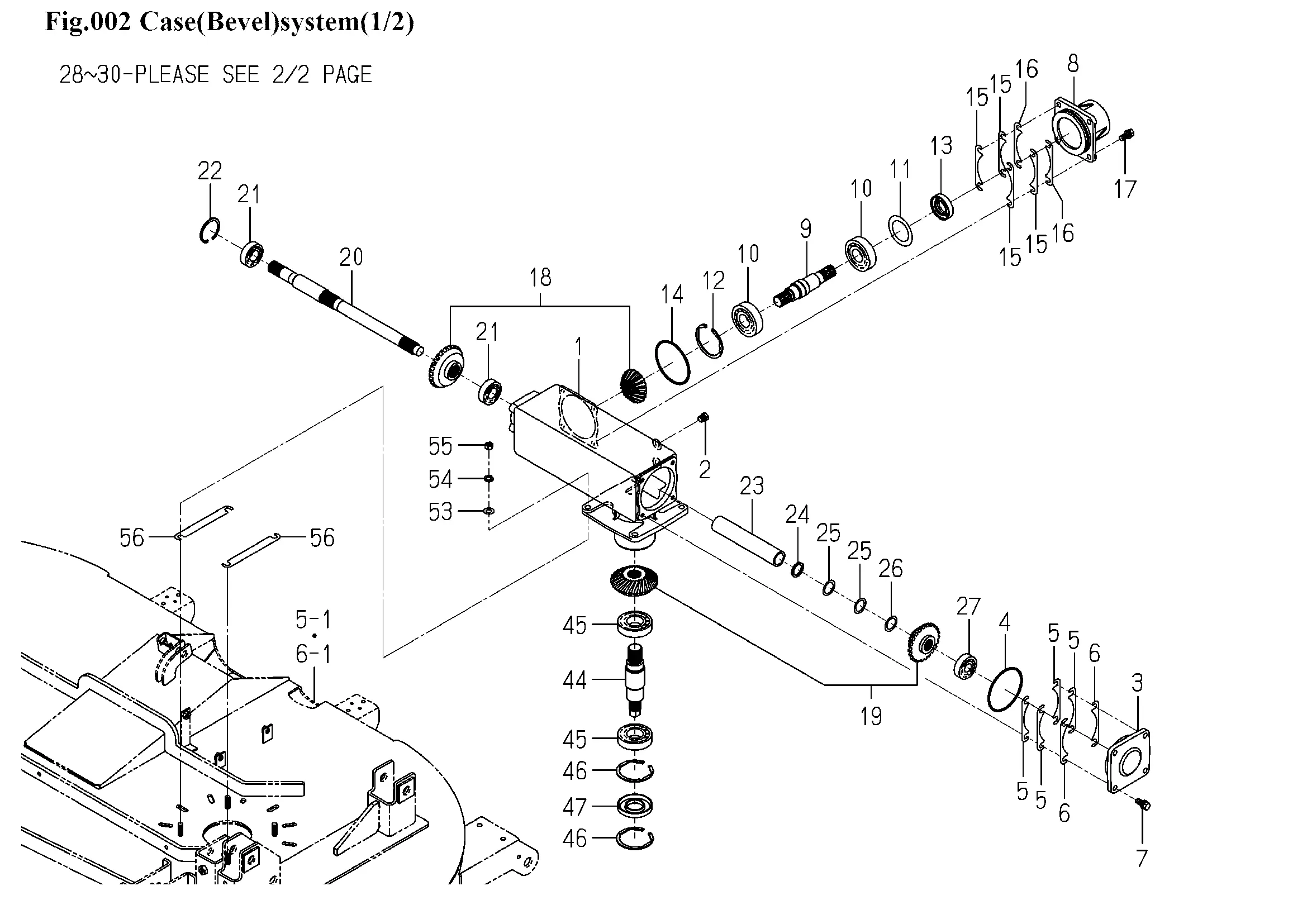

Getriebe
Ersatzteile (56 Teile)
1
8681-201-001-00
2
PLUG,DRAIN (1/4)
3
8675-201-002-00
4
O-RING/1A,G95
5
SHIM/0.1
6
SHIM/0.2
7
BOLT,S/M10X25/7T
8
8675-201-003-00
9
SHAFT/INPUT
10
BEARING,RB/6306
11
COLLAR/48X70X01
12
RING,SNAP/R72
13
SEAL,OIL/TC305512
14
O-RING/1A,G95
15
SHIM/0.1
16
SHIM/0.2
17
BOLT,S/M10X25/7T
18
8681-201-210-00
19
GEAR/BEVEL/23-2 SET
20
8681-201-007-00
21
8681-201-011-00
22
RING,SNAP/52 C
23
8681-201-008-00
24
WASHER/25X33X02
25
SHIM/0.1
26
SHIM/0.2
27
BEARING,RB/6304
28
CASE/BEVEL/RH
29
PLUG,DRAIN (1/4)
30
8675-201-002-00
31
O-RING/1A,G95
32
SHIM/0.1
33
SHIM/0.2
34
BOLT,S/M10X25/7T
35
GEAR/BEVEL/23-2 SET
36
8681-201-013-00
37
BEARING,RB/6304
38
WASHER/25X33X02
39
SHIM/0.1
40
SHIM/0.2
41
8681-201-011-00
42
RING,SNAP/52 C
43
SEAL,OIL/TC255210
44
SHAFT/BLADE
45
BEARING,RB/6207
46
RING,SNAP/R72
47
SEAL/OIL
48
8681-201-015-00
49
COUPLING/23X34X60
50
8681-201-230-00
51
O-RING/1A,P52
52
BOLT,S/M10X20/7T
53
V411-260-010-00
54
WASHER,SP/M10
55
NUT/M10
56
SHIM/0.2
