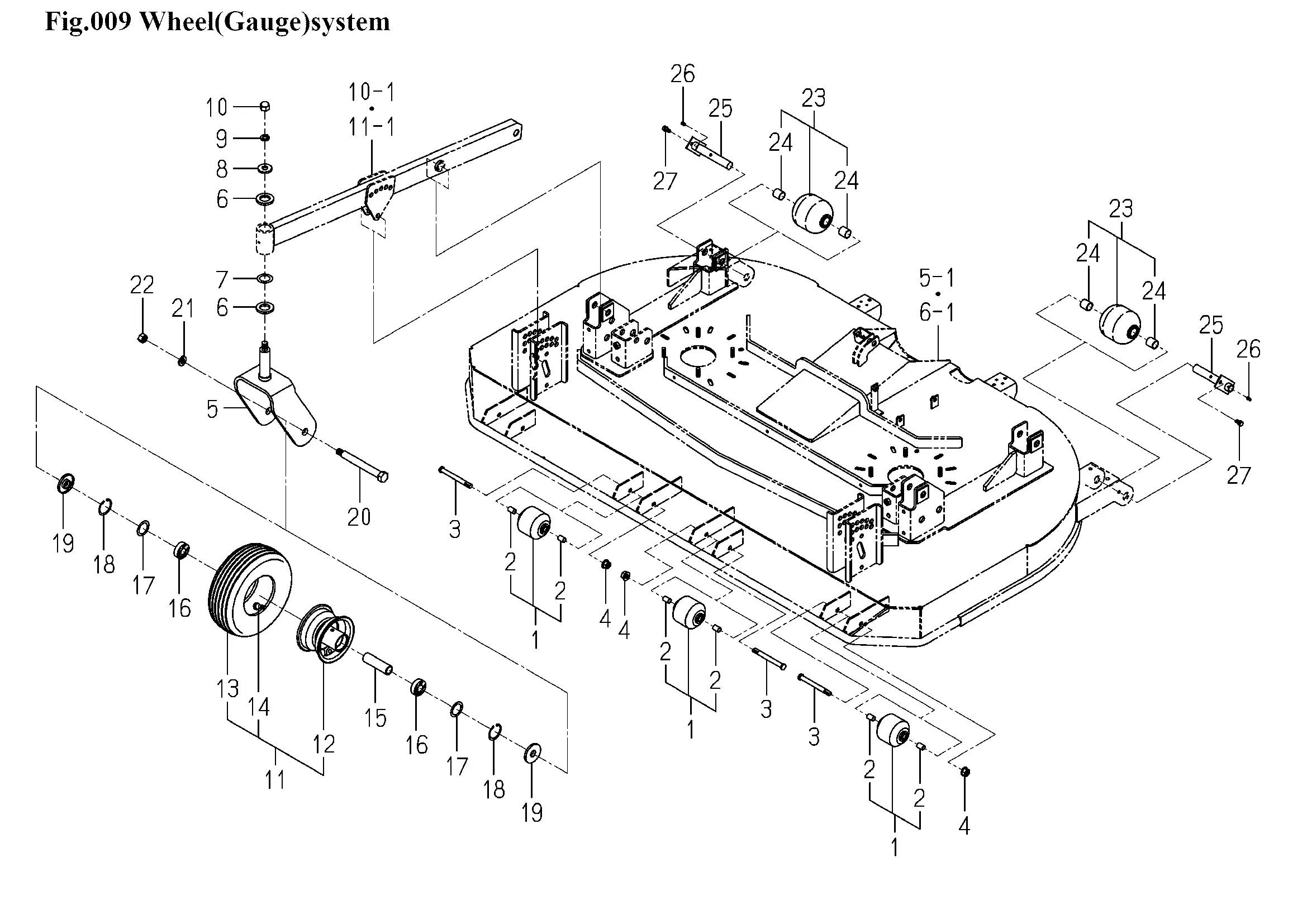

Laufrollen, Stützräder
Ersatzteile (27 Teile)
1
ROLLER ASSY
2
1560-511-015-10
3
8663-501-051-00
4
NUT/WASHER/M12
5
FORK/WHEEL COMP
6
WASHER/30X50X05
7
COLLAR,THRUST
8
WASHER
9
WASHER,SP/M16
10
NUT
11
WHEEL/GUAGE ASSY
12
8654-501-340-20
13
8654-501-321-10
14
VALVE
15
COLLAR/22X27X93
16
BEARING/BALL
17
WASHER/34X47X01
18
RING,SNAP/47 C
19
COLLAR/SEAL COMP
20
PIN/20X175
21
WASHER,SP/M16
22
NUT/M16/7T
23
8654-501-280-10
24
8654-501-283-00
25
PIN/ROLLER COMP
26
NIPPLE,GREASE
27
V211-560-801-60
