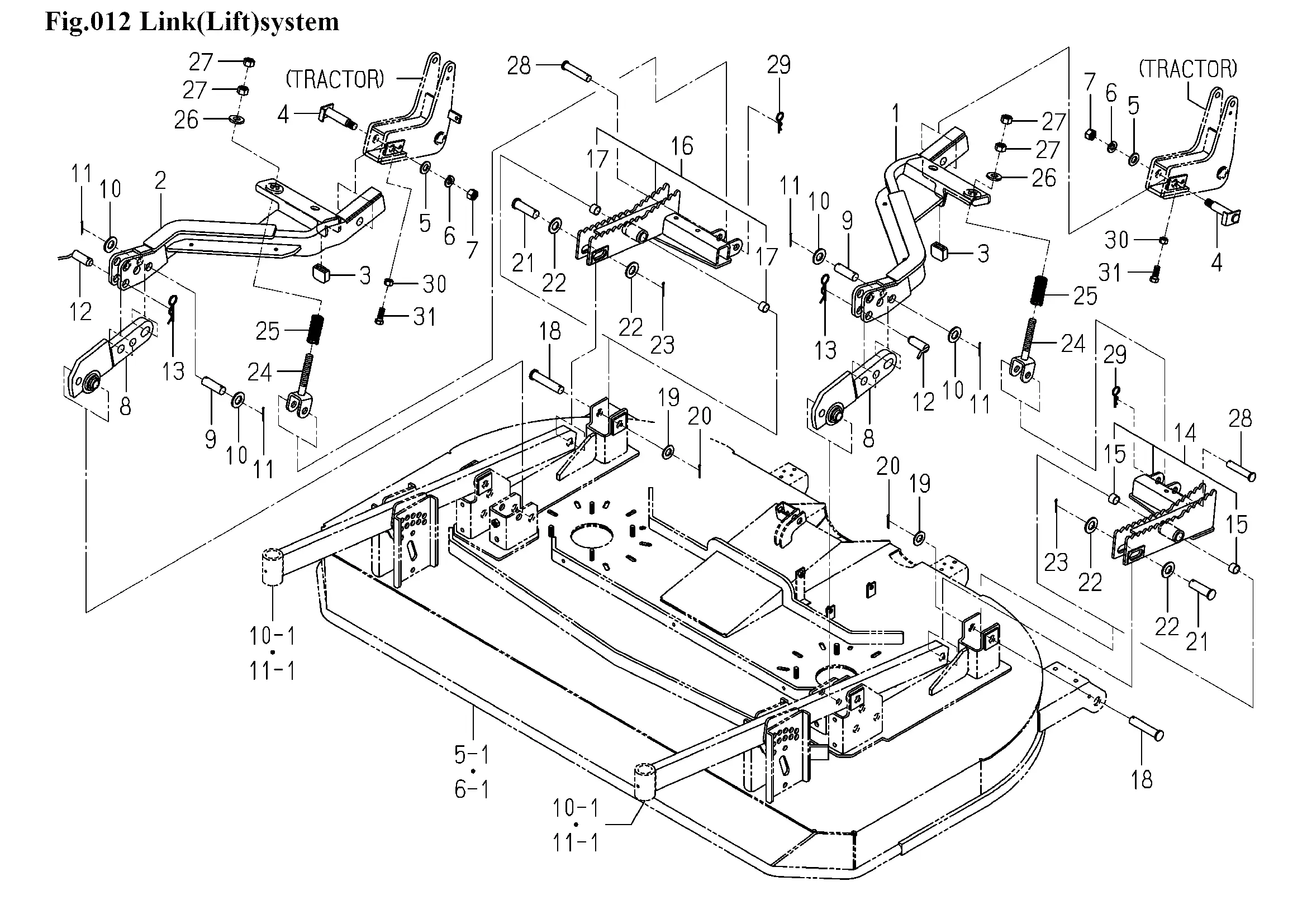

Aushebung
Ersatzteile (31 Teile)
1
ARM/MAIN/LH COMP
2
ARM/MAIN/RH COMP
3
STOPPER
4
PIN/M16X99 COMP
5
V411-260-016-00
6
WASHER,SP/M16
7
NUT/M16/7T
8
ARM/FRONT COMP
9
PIN/20X61
10
WASHER,PL/M20
11
V500-163-003-00
12
PIN/20X55 COMP
13
PIN,HAIR/19
14
LINK/REAR/LH ASSY
15
BUSH/19X22X15
16
LINK/REAR/RH ASSY
17
BUSH/19X22X15
18
PIN/19X91
19
WASHER,PL/M18
20
V500-164-003-00
21
PIN/20X65
22
WASHER,PL/M20
23
V500-164-003-00
24
ROD/LIFT COMP
25
SPRING/HC058
26
WASHER
27
NUT/M16
28
PIN/16X78
29
PIN/HAIR
30
V304-460-012-00
31
BOLT/M12X30/7T
