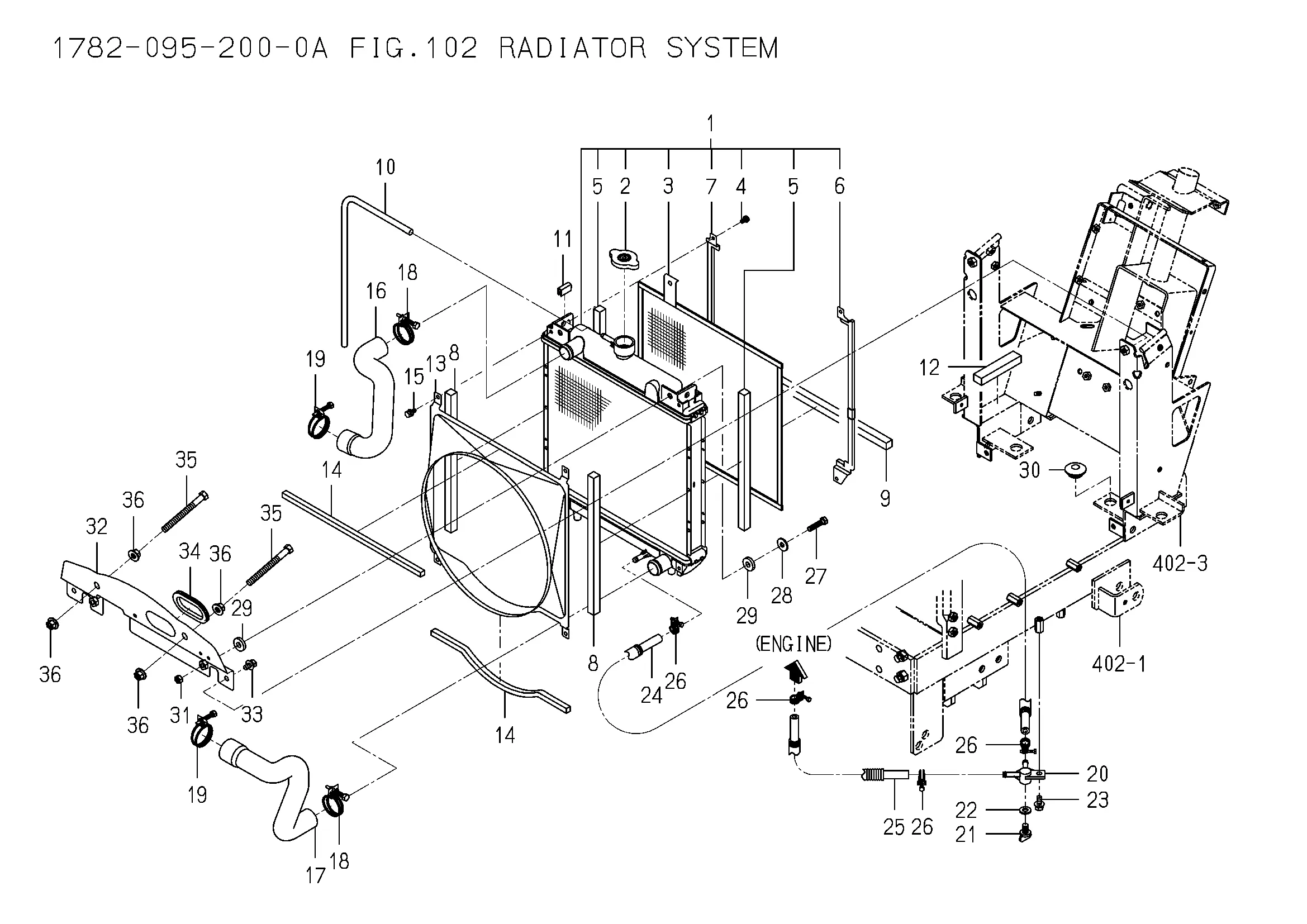

Kühler
Ersatzteile (35 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
SCREW/P
5
1703-102-204-00
6
GUIDE
7
GUIDE
8
INSULATOR
9
1782-102-005-00
10
1703-102-008-00
11
PAD/25
12
1782-102-006-00
13
1782-102-001-00
14
1703-102-003-00
15
V210-360-601-20
16
HOSE/RADIATOR/INLET
17
Kühlerschlauch
18
J061-230-038-00
19
J061-234-042-00
20
CONNECTOR
21
1424-101-203-00
22
PACKING
23
BOLT,SP/M8X20
24
HOSE/290 ASSY
25
HOSE/290 ASSY
26
J061-210-015-00
27
V201-260-803-50
28
WASHER/24X9X3.2
29
CUSHION/RUBBER/10X25
30
BUSH,LEVER
32
1782-102-510-00
33
BOLT,SP/M8X16
34
TRIM/188
35
V201-261-010-00
36
NUT/WASHER/M10
