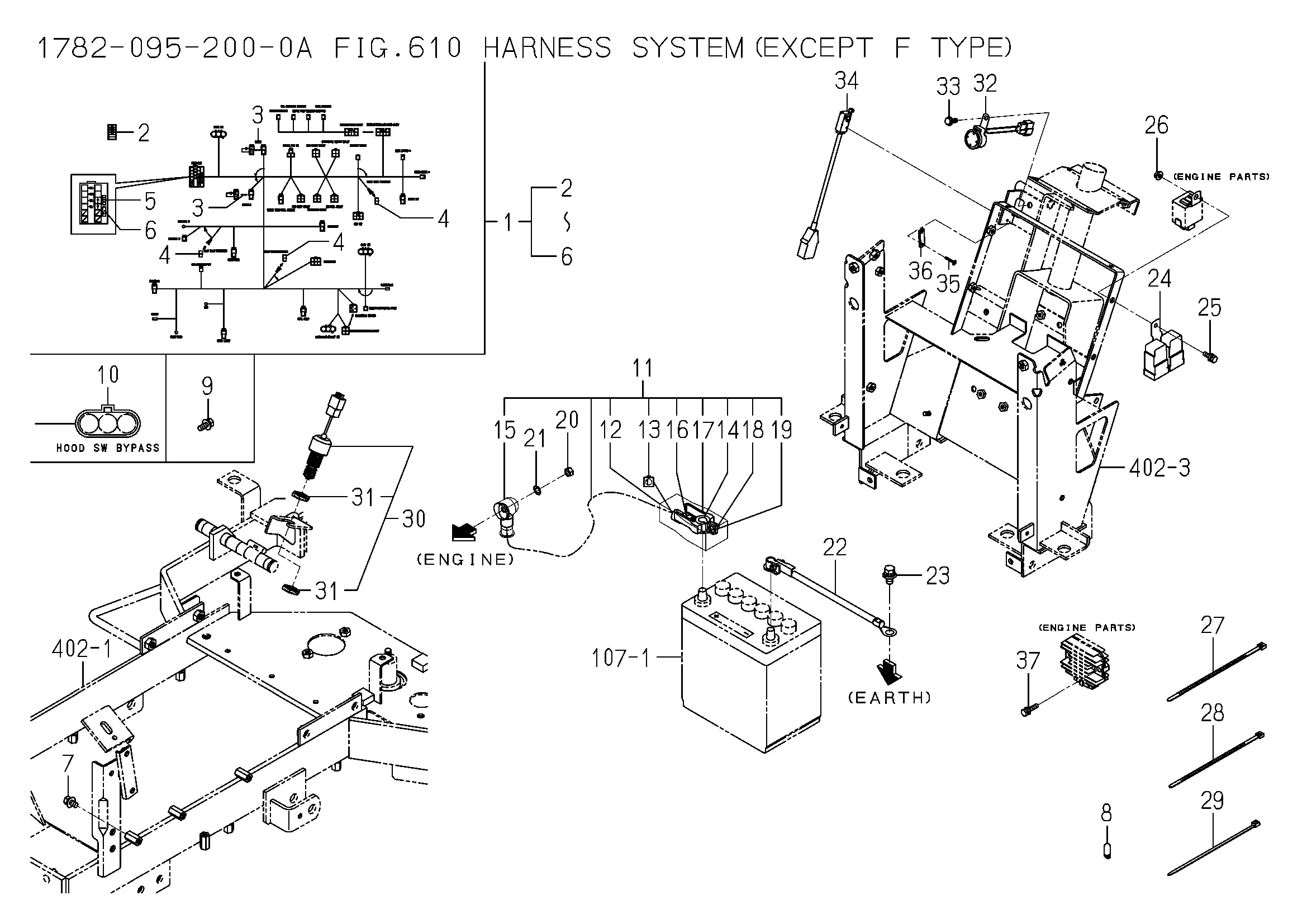

Kabelbaum, Schalter
Ersatzteile (36 Teile)
1
1782-690-300-00
2
1782-690-302-00
3
DIODE/3A
4
FUSE/SLOW BLOW/40A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V05A
7
BOLT,SP/M8X16
8
BULB/12V3.4W
9
BOLT,SP/M8X20
10
CONNECTOR/JOINT ASSY
11
Batteriekabel, +
12
COVER/BATTERY
13
1782-690-253-00
14
1782-690-254-00
15
COVER/BATTERY/STARTO
16
1650-650-295-00
17
1650-650-296-00
18
1560-666-005-00
19
1560-666-006-00
20
NUT/M8
21
WASHER,SP/M8
22
CABLE/EARTH ASSY
23
V211-661-002-00
24
RELAY/4P-2 ASSY
25
V210-360-602-00
26
NUT/WASHER/M6
27
1342-402-006-00
28
BAND,WIRE/140
29
1593-623-003-00
30
Startsicherheitsschalter
32
BUZZER
33
FLANGEBOLT/M6X16
34
SWITCH,MERIT
35
SCREW/M03X20
36
PLATE,SWITCH
37
V210-360-602-50
