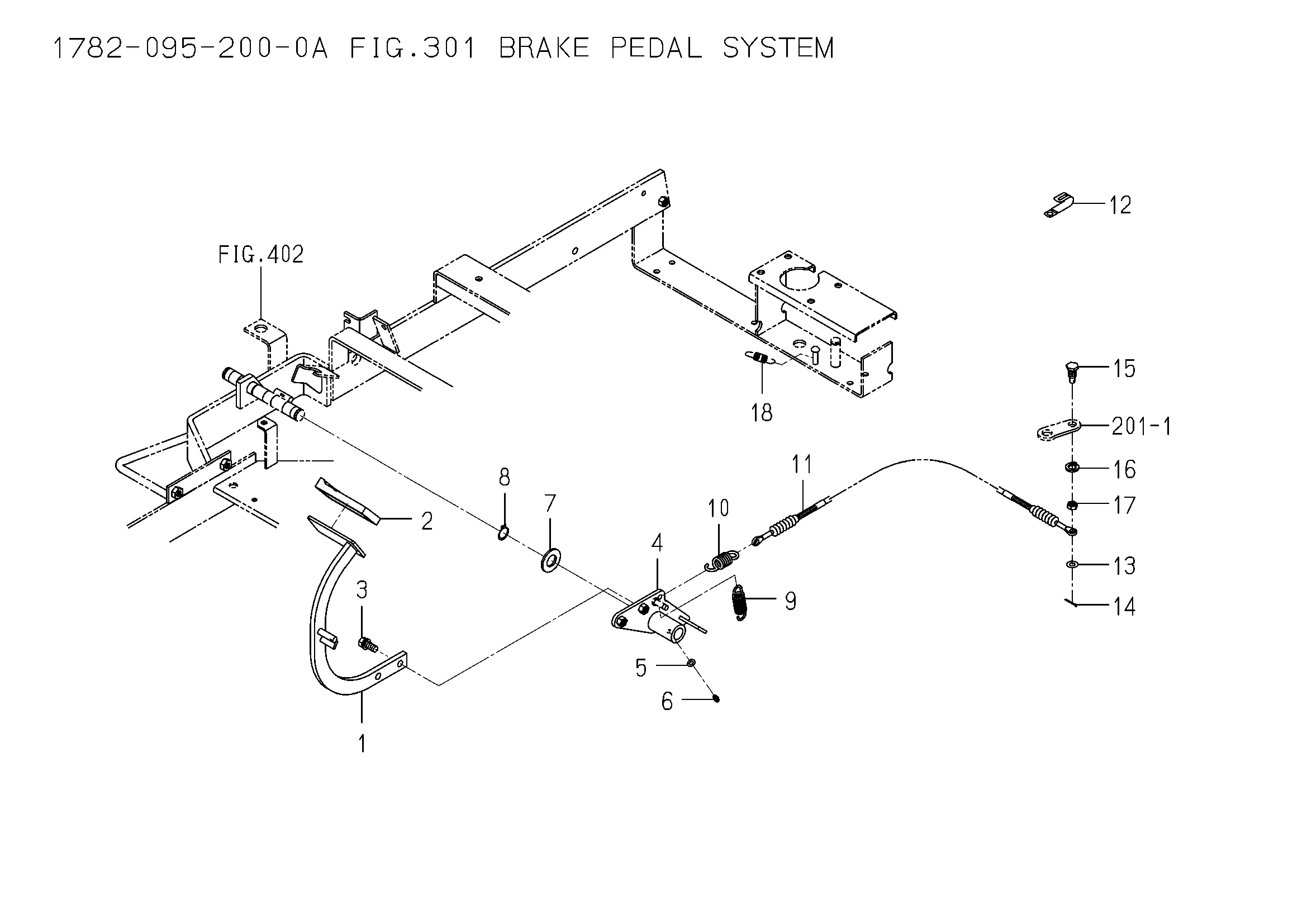

Pedal, Bremse
Ersatzteile (17 Teile)
1
Bremspedal
2
Pedalgummi, Bremse (rot)
3
BOLT,S/M10X25/7T
4
Hebel
5
V411-260-006-00
6
NIPPLE,GREASE
7
WASHER,PL/M20
8
RING,SNAP/20 C
9
SPRING
10
SPRING
11
1782-312-260-10
13
WASHER,PL/M8
14
PIN,SPLIT/2.5X20
15
1782-312-001-00
16
WASHER,SP/M12
17
V305-260-012-00
18
SPRING,TENSION (52)
