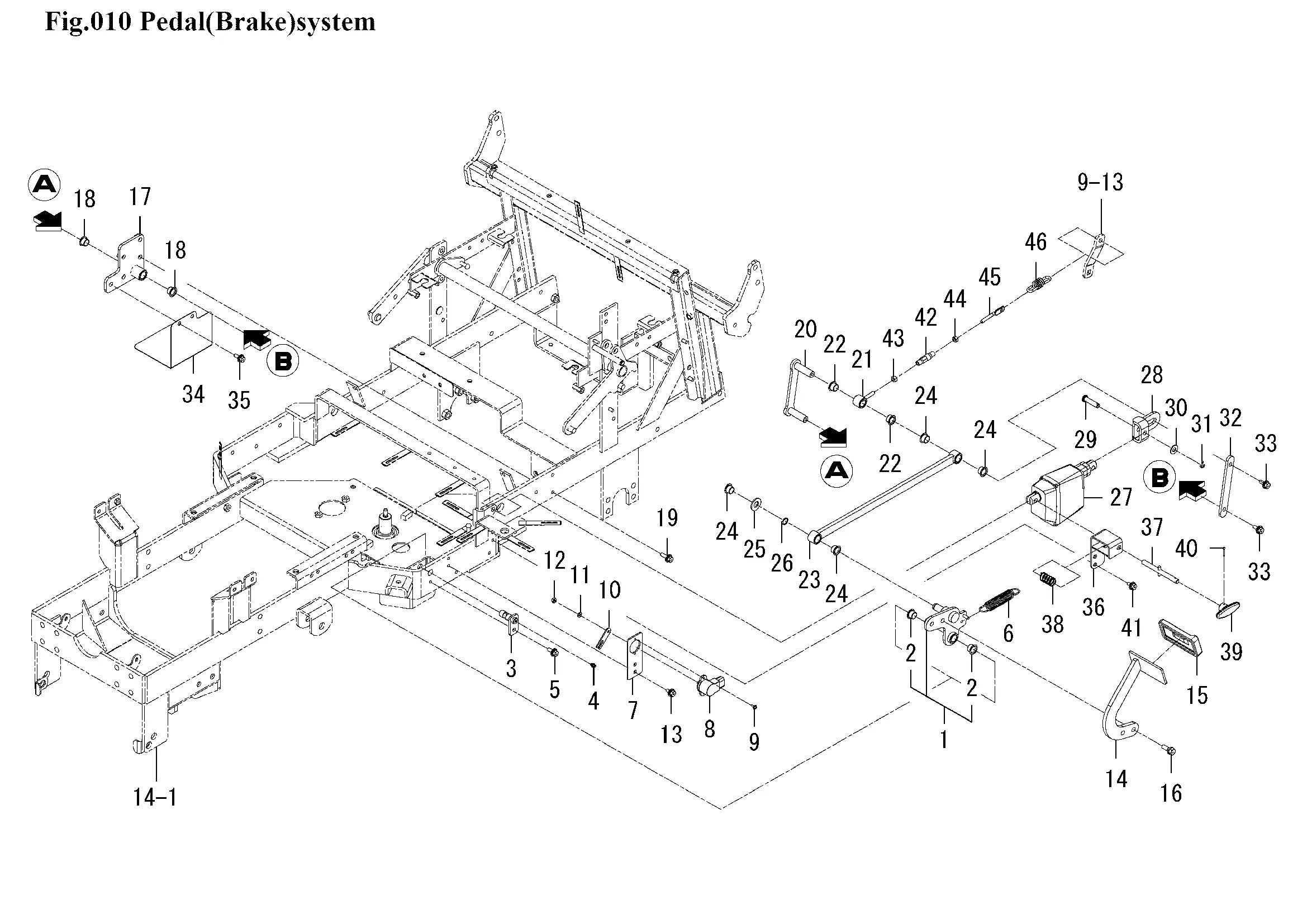

Pedal, Bremse
Ersatzteile (46 Teile)
1
1852-312-270-00
2
BUSH/15X17X11
3
1852-312-230-00
4
NIPPLE,GREASE
5
V211-660-802-00
6
SPRING/HE108
7
1852-312-025-00
8
SENSOR/ANGLE/110/L
9
SCREW,SP/M4X12
10
1852-272-001-00
11
V401-160-006-00
12
V301-260-006-00
13
BOLT,SP/M8X16
14
1852-312-220-00
15
1524-122-001-10
16
BOLT,S/M10X25/7T
17
1852-312-330-00
18
BUSH/15X17X11
19
BOLT,SP/M8X25/7T
20
1852-312-310-00
21
1852-312-280-00
22
BUSH/15X17X11
23
1852-312-320-00
24
BUSH/15X17X11
25
WASHER,PL/M14
26
Sicherungsring 15x1
27
CYLINDER/50/ELC ASSY
28
1852-312-340-00
29
1852-312-028-00
30
V411-260-010-00
31
V500-163-002-00
32
1852-312-026-00
33
V211-660-802-00
34
1852-312-027-00
35
BOLT,SP/M8X20
36
1852-312-260-00
37
1852-312-290-00
38
SPRING/HC043
39
GRIP/4WD
40
SCREW/M3X20
41
BOLT,SP/M8X16
42
TURNBUCKLE/M8
43
NUT/M8
44
NUT/LH/M08
45
ROD/M08/LHX60
46
SPRING/HE060
