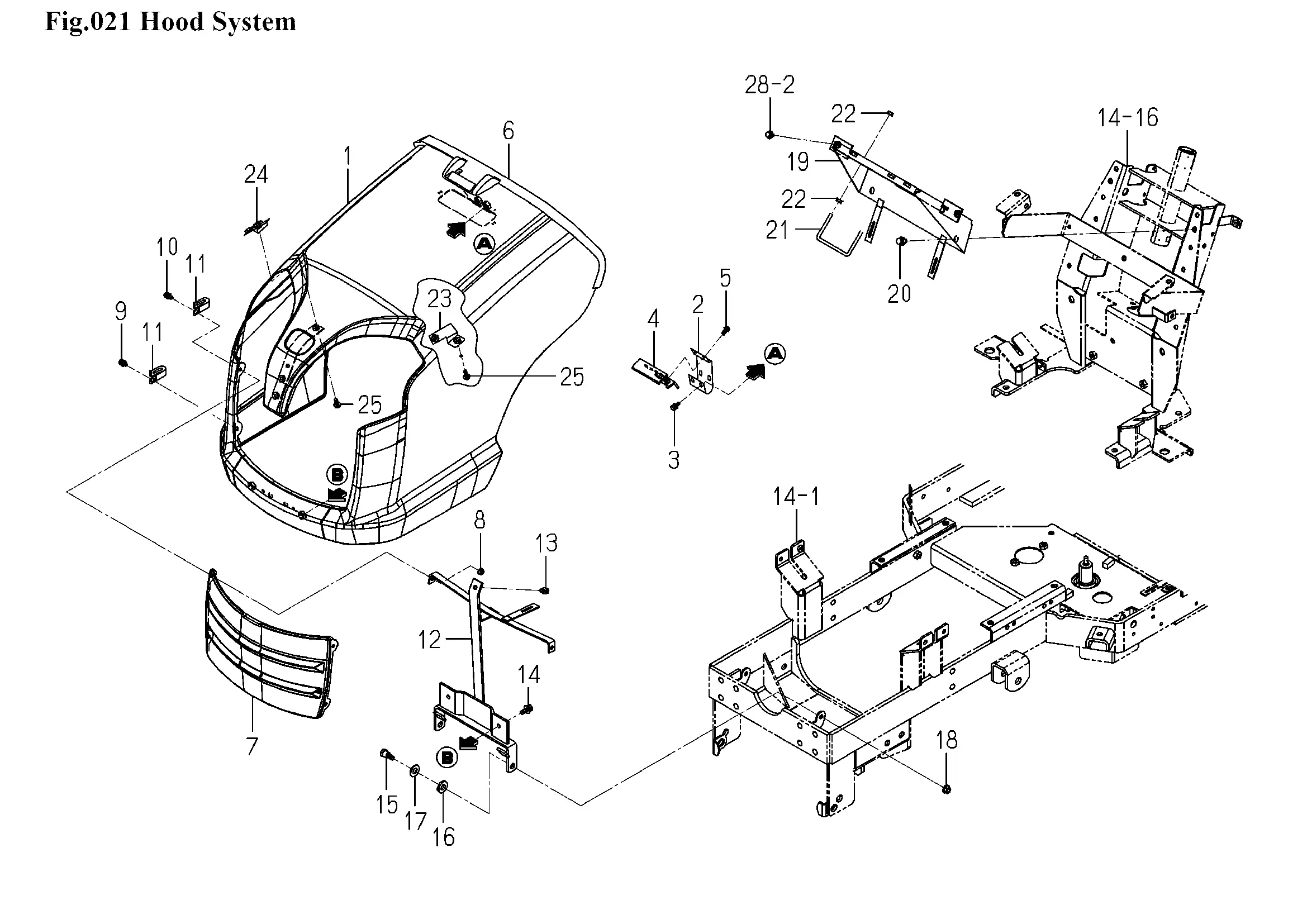

Motorhaube
Ersatzteile (25 Teile)
1
1782-601-710-20
2
PLATE/LOCK
3
BOLT,SP/M6X16
4
HANDLE COMP
5
SCREW,SP/M6X16
6
1739-601-075-40
7
1852-601-001-00
8
NUT/WASHER/M6
9
V210-360-601-20
10
BOLT,SP/M6X16
11
HOLDER/JE/9-9
12
ARM/HOOD COMP
13
BOLT,SP/M6X16
14
BOLT,SP/M8X20
15
1689-621-008-10
16
WASHER/12X26X04
17
V411-260-012-00
18
V363-260-008-00
19
BRACKET COMP
20
BOLT,SP/M8X16
21
LEVER/LOCK
22
NUT/WASHER/M6
23
STAY/LH COMP
24
STAY/RH COMP
25
BOLT,SP/M6X16
