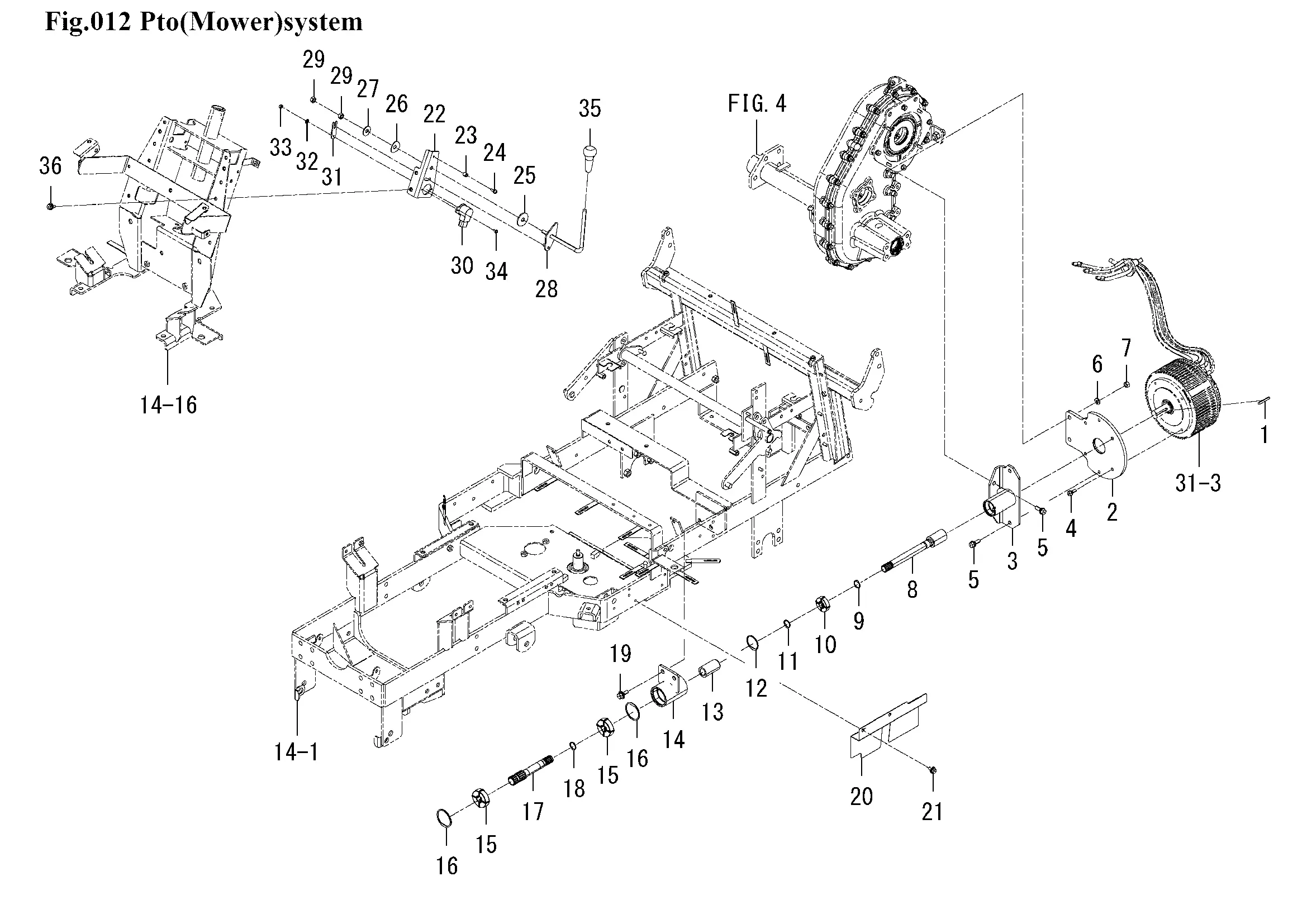

PTO Mähwerk
Ersatzteile (36 Teile)
1
1852-334-003-00
2
1852-334-005-00
3
1852-334-270-00
4
V211-560-802-00
5
BOLT,S/M10X25/7T
6
WASHER,SP/M10
7
V304-460-010-00
8
1852-334-260-00
9
RING,SNAP/20 C
10
BEARING/BALL
11
RING,SNAP/20 C
12
RING,SNAP/42 C
13
COUPLING/18X30X55
14
1852-334-280-00
15
V600-150-630-40
16
RING,SNAP/52 C
17
1852-334-008-00
18
RING,SNAP/20 C
19
BOLT,SP/M10X25/7T
20
1852-334-006-00
21
BOLT,SP/M8X16
22
1852-334-350-00
23
1795-685-001-00
24
SCREW,SEMS/M6X16
25
LINING/11X40X03
26
SPRING,DISK
27
2130-713-002-10
28
1852-334-360-00
29
NUT/M10
30
SENSOR/ANGLE/110/L
31
1852-272-001-00
32
V401-160-006-00
33
V301-260-006-00
34
SCREW,SP/M4X12
35
GRIP/PTO
36
BOLT,SP/M8X20
