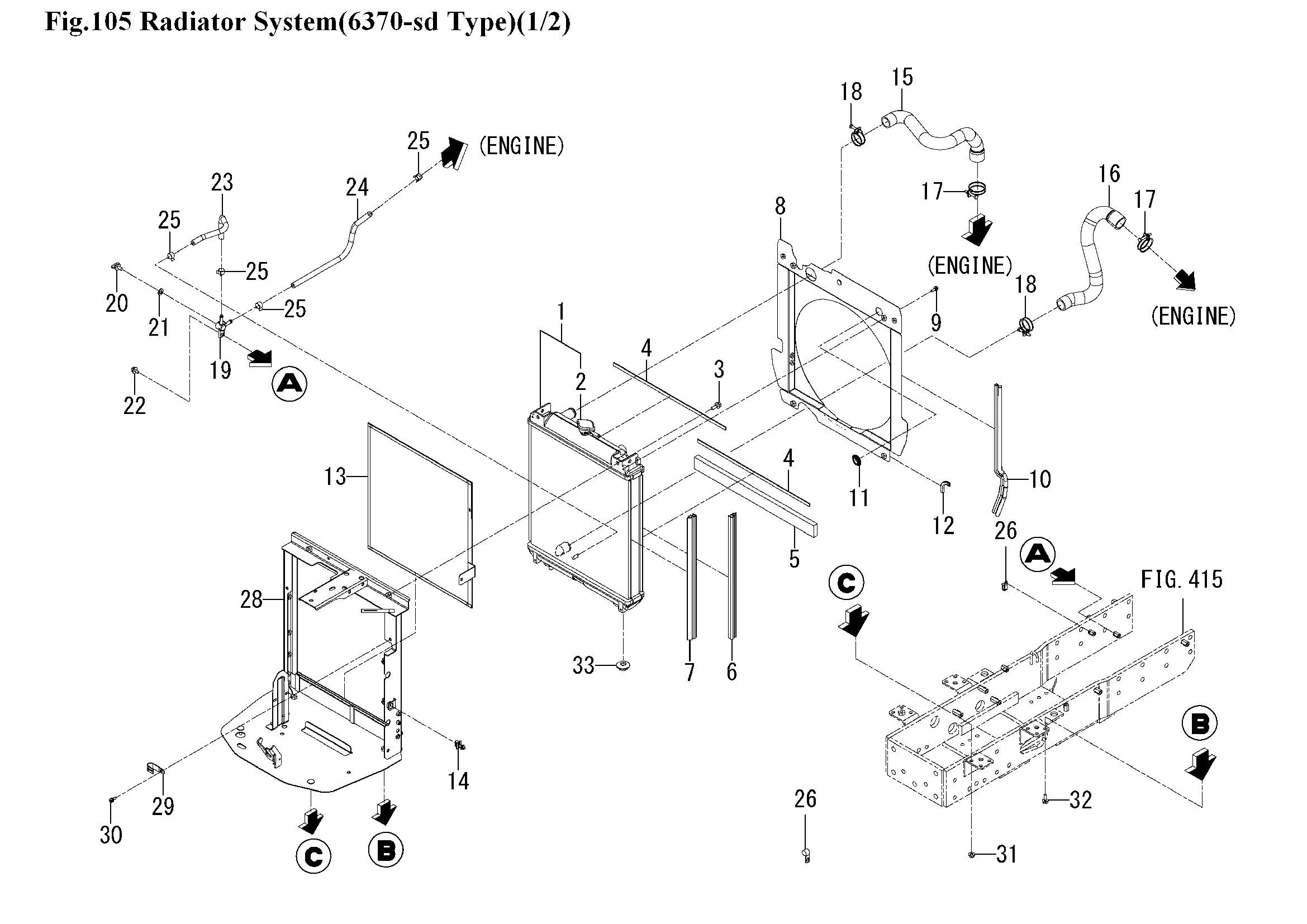

Kühler
Ersatzteile (59 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR/10X10X450
5
INSULATOR/40X480
6
INSULATOR/425
7
INSULATOR/425
8
1792-102-250-10
9
1746-804-002-00
10
INSULATOR/455
11
3670-272-001-00
12
INSULATOR/55
13
PROTECTOR/NET COMP
14
LATCH ASSY
15
HOSE/RADIATOR/INLET
16
HOSE/RADIATOR/OUTLET
17
CLAMP/WIRE/36-44
18
J061-230-038-00
19
CONNECTOR
20
1424-101-203-00
21
PACKING
22
1746-804-003-00
23
Schlauch, 8x13x580
24
Schlauch, 320
25
CLIP/HOSE/14.7-15.9
26
1675-508-003-00
27
FLANGEBOLT/M8X16
28
1815-102-330-10
29
HOLDER/JE/9-9
30
BOLT/SP
31
1746-816-001-00
32
1746-804-003-00
33
BUSH,LEVER
34
1785-102-210-30
35
1746-817-001-00
36
WASHER,PL/M8
37
SPRING/HT020
38
1792-102-240-00
39
PIN/SNAP
40
1801-102-004-00
41
CAP/PARKING
42
RESERVETANK ASSY
43
CAP
44
PACKING
45
1690-102-214-00
46
1690-102-215-00
47
1690-102-216-00
48
HOSE/RUBBER
49
BAND,WIRE/140
50
1792-102-006-00
51
BOLT/SP
52
1792-102-004-20
53
INSULATOR/700
54
TRIM/160
55
1746-804-001-00
56
NUT/WASHER
57
1792-102-270-10
58
TUBE/07X09X30
59
BOLT/SP
