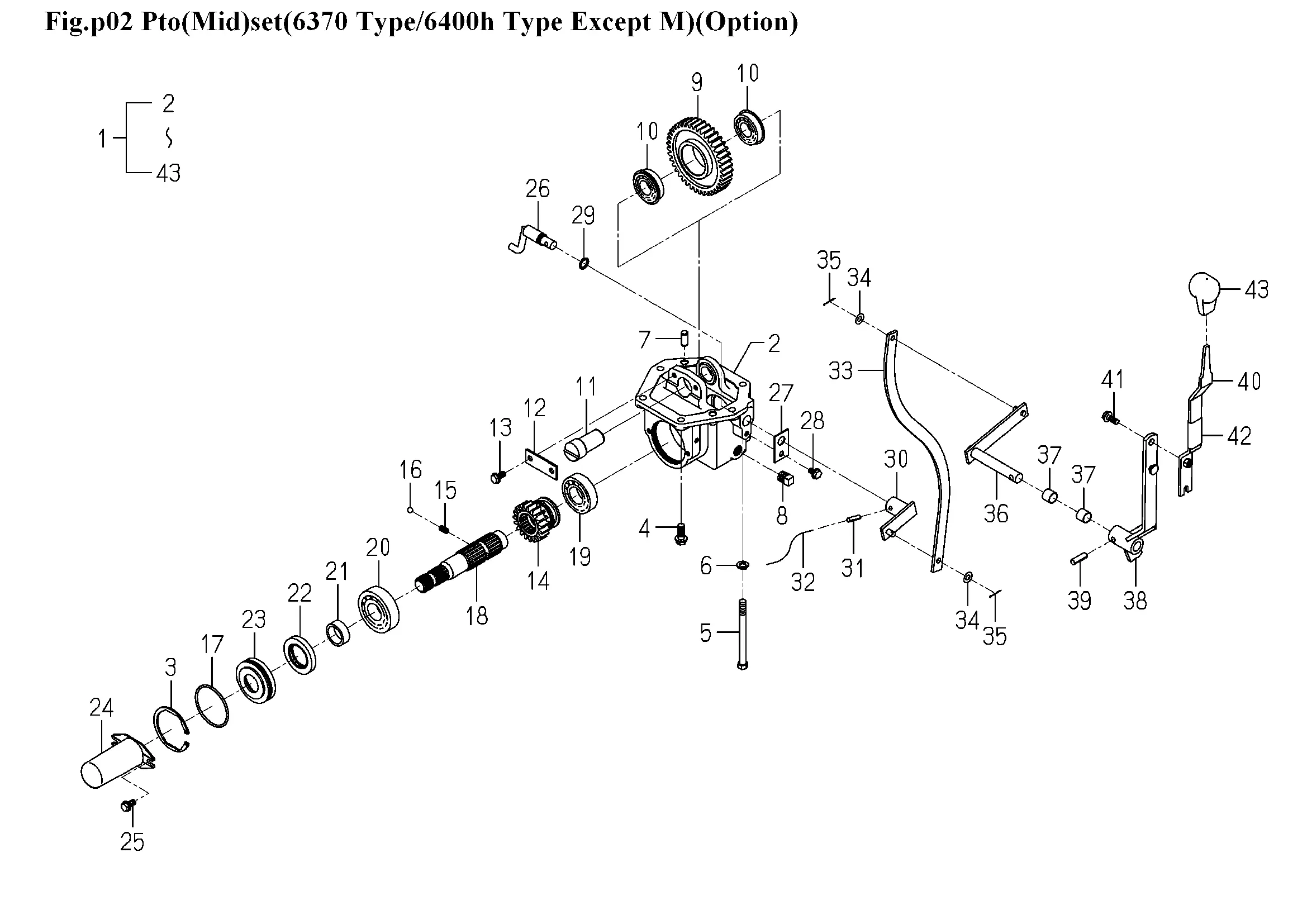

Zwischenachs PTO
Ersatzteile (42 Teile)
1
Zwischenachsgetriebe TG6370 AL
2
CASE/PTO
3
RING,SNAP/R72
4
V231-361-002-50
5
V201-361-012-00
6
WASHER,SP/M10
7
PIN,ST,B/10X24
8
PLUG/SCREW/SEAL
9
GEAR/SPUR/40
10
BEARING,RB/6205NR
11
1742-229-004-00
12
PLATE
13
FLANGEBOLT/M8X16
14
GEAR/SPUR/19
15
SPRING,SHIFTER
16
BALL,STEEL
17
O-RING
18
SHAFT/PTO/E3
19
V600-410-620-60
20
V600-410-630-60
21
SLEEVE
22
SEAL/OIL
23
METAL/SEAL
24
1444-314-009-10
25
V231-360-801-20
26
ARM/SHIFT/MID COMP
27
PLATE/I/30X50
28
V231-360-801-20
29
O-RING/1A,P14
30
ARM/PLATE/MID COMP
31
PIN,SPRING/6X25 W
33
1742-229-009-00
34
WASHER,PL/M8
35
PIN,SPLIT/2X20
36
1742-229-210-00
37
3640-111-001-10
38
1742-229-230-10
39
PIN,SPRING/8X28 W
40
Hebel
41
V231-360-802-00
42
INSULATOR/LEVER/SUB
43
GRIP/MID/PTO
