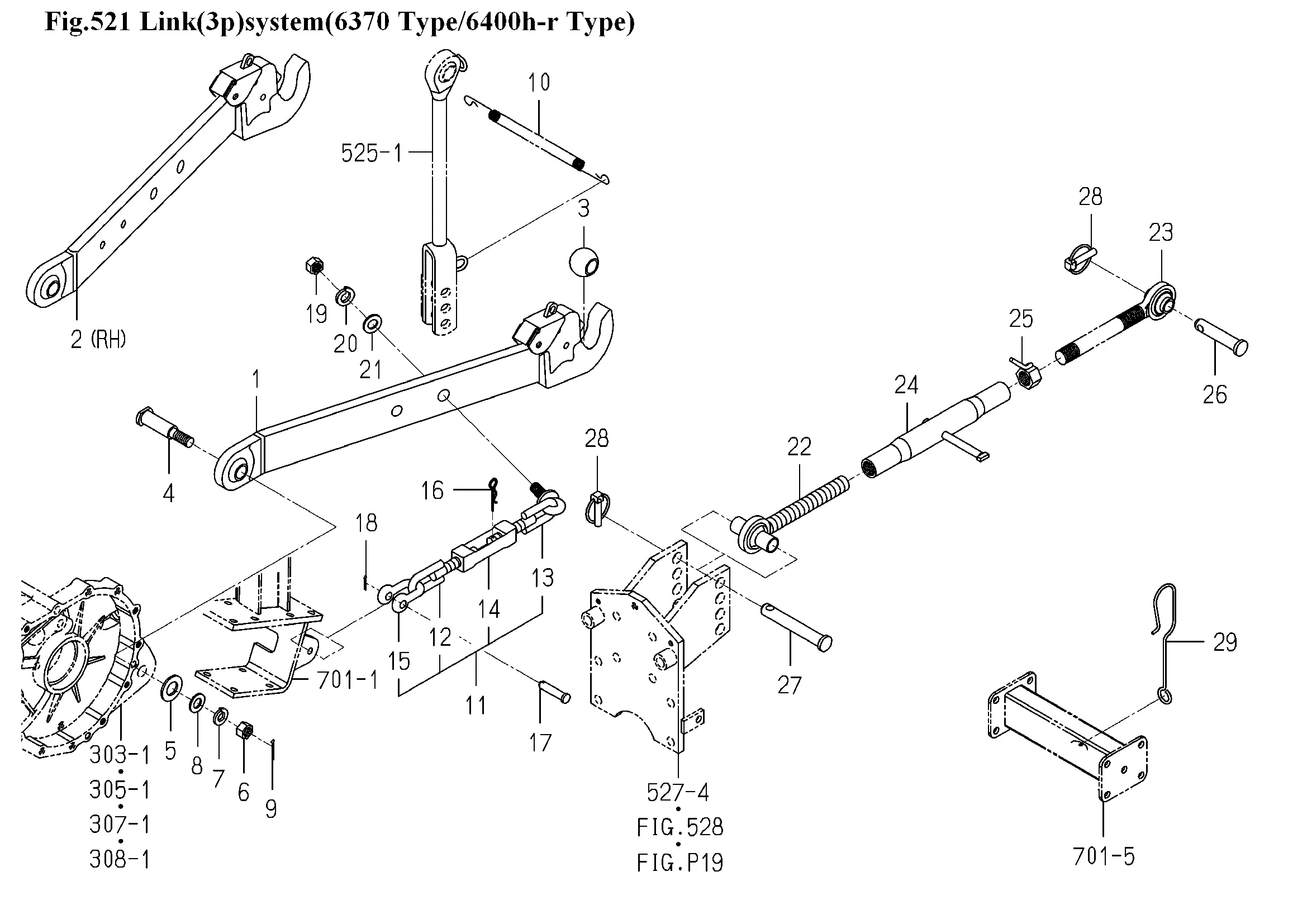

Heck 3 Punkt Aushebung
Ersatzteile (29 Teile)
1
LINK/LOWER/LH COMP
2
LINK/LOWER/RH COMP
3
BALL (NML). siehe 305051
4
PIN/22X99
5
WASHER,PL/M22
6
NUT/M16/7T
7
WASHER,SP/M16
8
V411-260-016-00
9
V500-164-003-00
10
SPRING
11
CHAIN/CHECK/S ASSY
12
CHAIN/CHECK/FRONT
13
CHAIN/CHECK/REA COMP
14
BUCKLE/TURN/M16
15
SHACKLE
16
PIN,HAIR
17
PIN/12X48
18
V500-163-002-00
19
NUT/M16/7T
20
WASHER,SP/M16
21
V411-260-016-00
22
1560-525-290-20
23
1568-525-300-40
24
TURNBUCLE COMP
25
NUT,TOP LINK LOCK
26
PIN/19X94
27
PIN 19X132
28
LINKPIN
29
HOOK/TOPLINK
