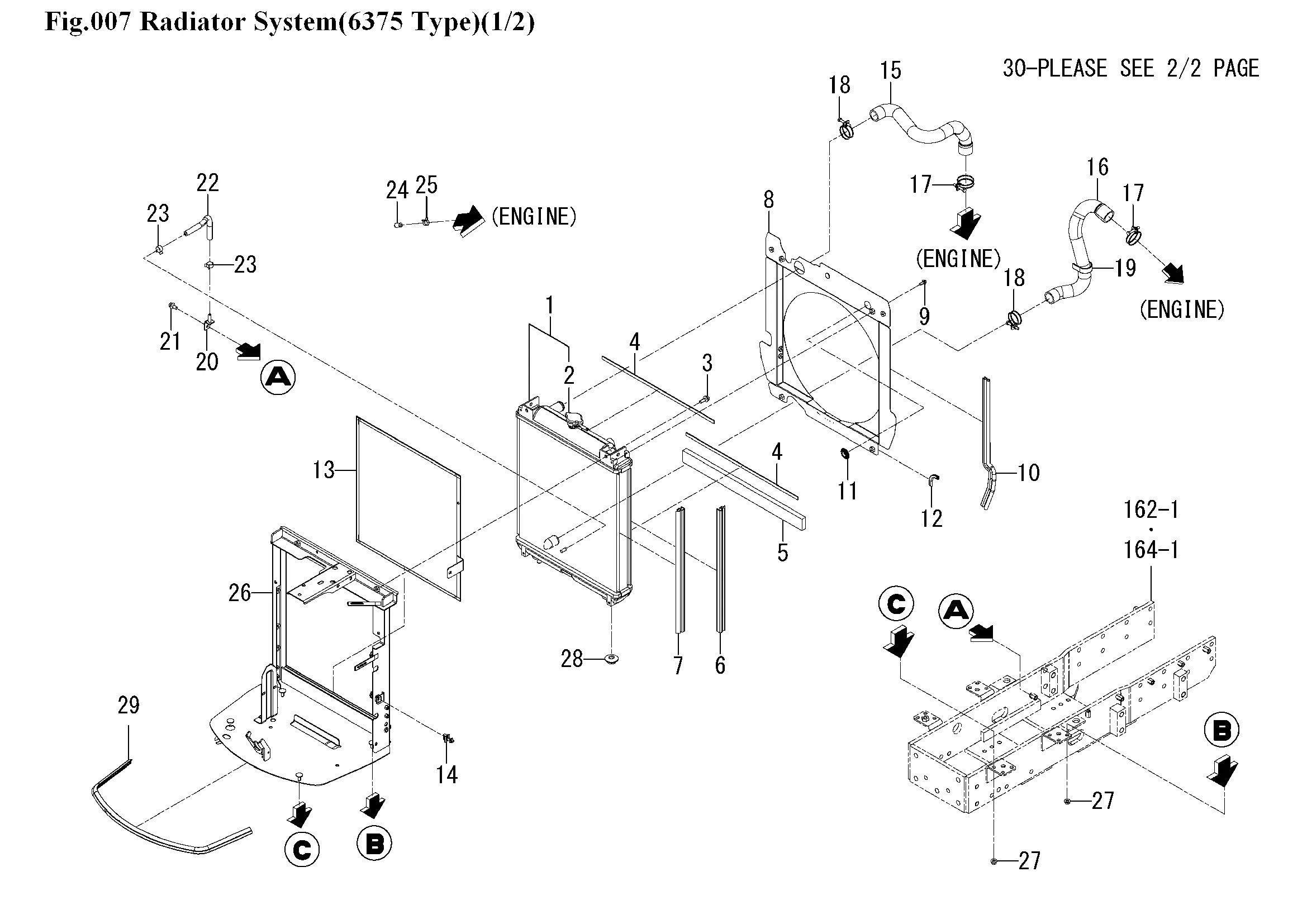

Kühler
Ersatzteile (54 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR/10X10X450
5
INSULATOR/40X480
6
INSULATOR/425
7
INSULATOR/425
8
1792-102-250-10
9
1746-804-002-00
10
INSULATOR/455
11
3670-272-001-00
12
INSULATOR/55
13
PROTECTOR/NET COMP
14
LATCH ASSY
15
HOSE/RADIATOR/INLET
16
HOSE/RADIATOR/OUTLET
17
CLAMP/WIRE/36-44
18
J061-230-038-00
19
CLAMP
20
1817-102-320-00
21
BOLT,SP/M8X20
22
HOSE/230
23
CLIP/HOSE/14.7-15.9
24
CAP/8
25
J062-138-148-00
26
1815-102-400-10
27
1746-816-001-00
28
BUSH,LEVER
29
1792-102-071-00
30
1815-102-410-10
31
1746-817-001-00
32
WASHER,PL/M8
33
SPRING/HT020
34
1815-102-031-00
35
PIN/SNAP
36
RESERVETANK ASSY
37
CAP
38
PACKING
39
1690-102-214-00
40
1690-102-215-00
41
1690-102-216-00
42
HOSE/RUBBER
43
BAND,WIRE/140
44
1792-102-006-00
45
1746-804-003-00
46
1792-102-004-20
47
INSULATOR/700
48
PROTECTOR/185
49
PROTECTOR/185
50
1746-804-001-00
51
NUT/WASHER
52
1792-102-270-10
53
TUBE/07X09X30
54
1815-802-001-00
