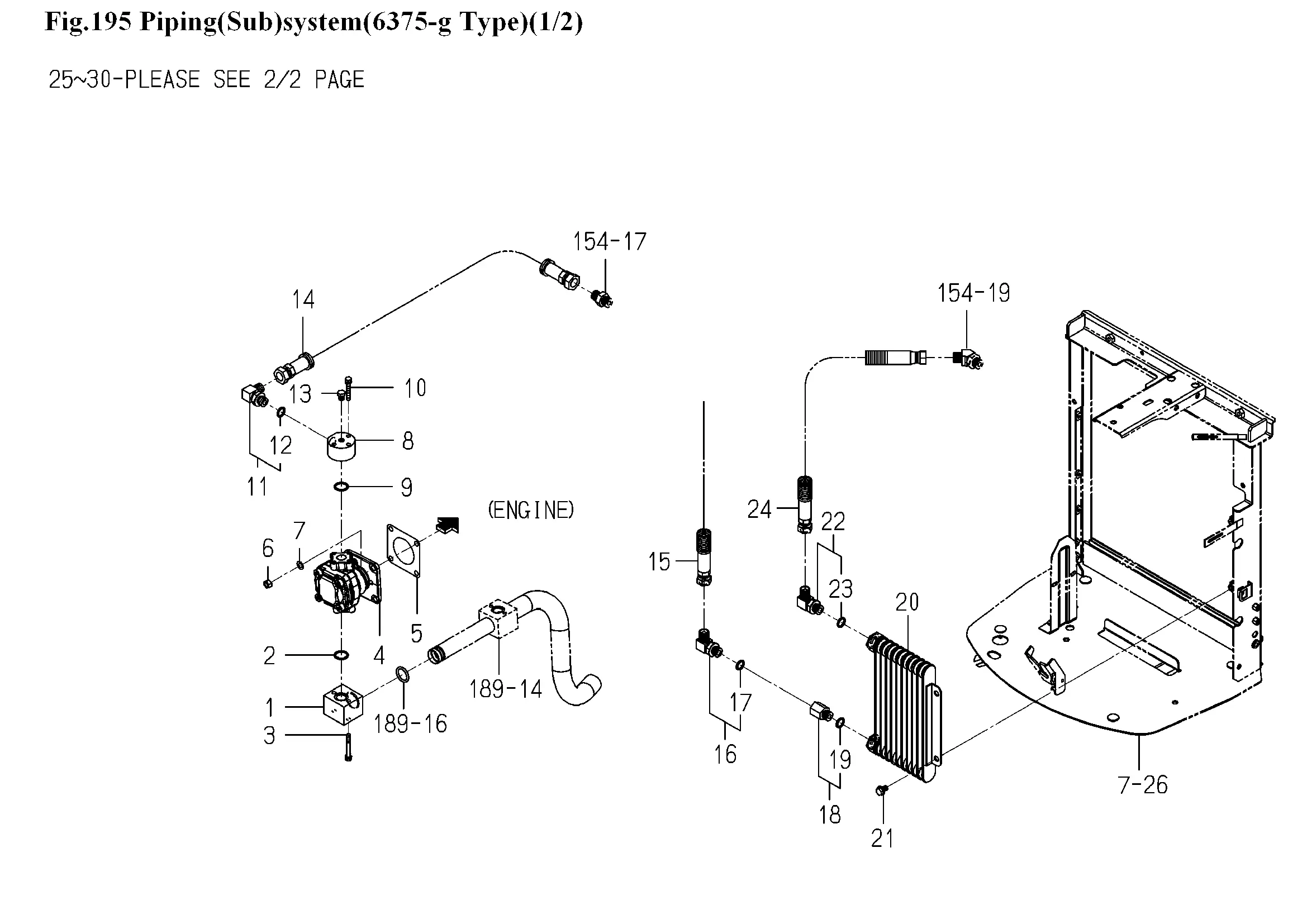

Ölkühler
Ersatzteile (76 Teile)
1
1729-508-005-10
2
O-RING/1B,P20
3
BOLT,S/M6X50/7T
4
1837-509-630-00
5
PACKING,OIL PUMP
6
NUT/M8
7
WASHER,SP/M8
8
1815-509-041-10
9
O-RING/1B,P20
10
BOLT,S/M6X35/7T
11
ADAPTER/L/G3/8 ASSY
12
O-RING/1B,P14
13
PLUG/SCREW/SEAL
14
1725-511-730-30
15
1794-509-820-10
16
ADAPTER/L/G3/8 ASSY
17
O-RING/1B,P14
18
ADAPTER/G3/8 ASSY
19
O-RING/1B,P14
20
COOLER/OIL ASSY
21
V231-360-801-20
22
ADAPTER/L/G3/8 ASSY
23
O-RING/1B,P14
24
1817-509-250-20
25
ADAPTER/G3/8ASSY
26
O-RING/1B,P14
27
ADAPTER/L/G3/8 ASSY
28
O-RING/1B,P14
29
1802-509-230-10
30
PLUG/G3/8 ASSY
31
O-RING/1B,P14
32
1815-509-033-00
33
1560-666-004-00
34
1440-105-006-00
35
FLANGEBOLT/M8X16
36
1815-509-620-00
37
ADAPTER/L/G3/8
38
J061-114-024-00
39
CLAMP/28X55
40
1792-509-250-00
41
ADAPTER/PF1/4 ASSY
42
O-RING/1B,P11
43
1792-509-210-00
44
ADAPTER/L/PF1/4 ASSY
45
O-RING/1B,P11
46
VALVE/REVERSE/233/S/
47
VALVE/PRV/B ASSY
48
O-RING/1B,P20
49
O-RING/AS568/013
50
O-RING/AS568/014
51
O-RING/AS568/015
52
SOLENOID/HW/04/ SET
53
K200-231-201-00
54
SPRING/PLATE/03
55
V783-160-501-10
56
VALVE/CLUTCH PEDAL/2
57
SOLENOID/HW/01/ SET
58
K200-231-201-00
59
SPRING/PLATE/03
60
K200-099-002-00
61
O-RING/1B,P18
62
SPRING/HC020
63
GASKET/HVA1/097
64
BOLT/M8
65
V580-140-801-80
66
ADAPTER/G3/8 ASSY
67
O-RING/1B,P14
68
GASKET/REVERSE
69
FILTER/PORT/09
70
V211-260-804-50
71
V201-260-808-50
72
WASHER,SP/M8
73
SENSOR/PRESSURE ASSY
74
ORING/11
75
PLUG(PF1/4)
76
O-RING/1B,P11
