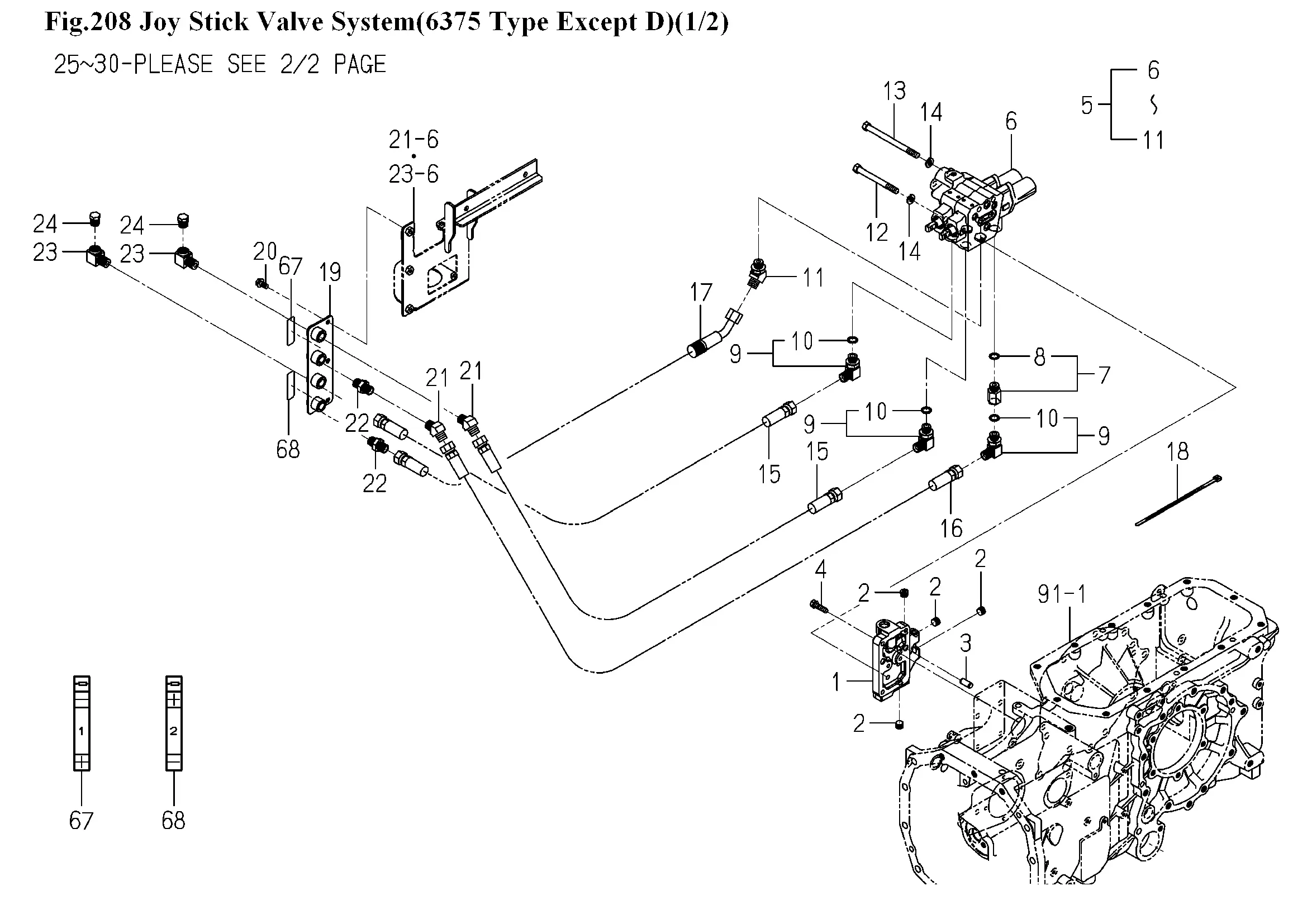

Kreutzhebel, Joy Stick
Ersatzteile (68 Teile)
1
1815-511-005-10
2
PLUG/SCREW/SEAL
3
PIN,ST,B/10X24
4
V211-560-803-00
5
1815-511-500-10
6
VALVE/CONTROL/109
7
ADAPTER/G3/8 ASSY
8
O-RING/1B,P14
9
ADAPTER/L/G3/8 ASSY
10
O-RING/1B,P14
11
ADAPTER (G3/8B-G3/8B
12
V201-261-010-00
13
V201-261-013-00
14
WASHER,SP/M10
15
1802-509-230-10
16
1801-511-240-20
17
1815-511-360-10
18
1342-402-006-00
19
1816-511-410-00
20
FLANGEBOLT/M8X16
21
ADAPTER/45/R3/8XG3/
22
ADAPTER/R/G3/8
23
1817-511-007-00
24
PLUG/SCREW/SEAL
25
1815-511-550-00
26
BUSH/10X12X20
27
FLANGEBOLT/M6X12
28
1815-511-570-00
29
1815-511-580-00
30
PIN/06X25
31
PIN/SNAP
32
V411-260-006-00
33
BRACKET/LOCK COMP
34
FLANGEBOLT/M8X16
35
ARM/LOCK ASSY
36
BUSH/10X12X20
37
RING,SNAP/9 E
38
1815-511-021-00
39
1815-511-350-20
40
1742-511-791-00
41
1742-511-792-00
42
1742-511-793-00
43
1742-511-794-00
44
KNOB
45
V411-260-005-00
46
PIN,SPLIT/1.6X15
47
CABLE/BOOM ASSY
48
CABLE/BUCKET ASSY
49
JOINT/BALL/M06
50
JOINT/BALL/M06/L
51
BUCKLE/TURN/M06
52
V301-260-006-00
53
NUT/FLANGE/M06
54
HOLDER/JOY COMP
55
FLANGEBOLT/M8X16
56
ARM/JOY
57
SPRING
58
WASHER/27X32X01
59
RING,SNAP/32 C
60
BOLT/LOCK
61
WASHER/8X12X2
62
BOOT,CHANGE LEVER
63
LEVER/JOY COMP
64
BOLT/M8X16
65
GRIP
66
BOOT/JOY
67
1817-512-002-10
68
LABEL/PORT/2ND/E4/+
