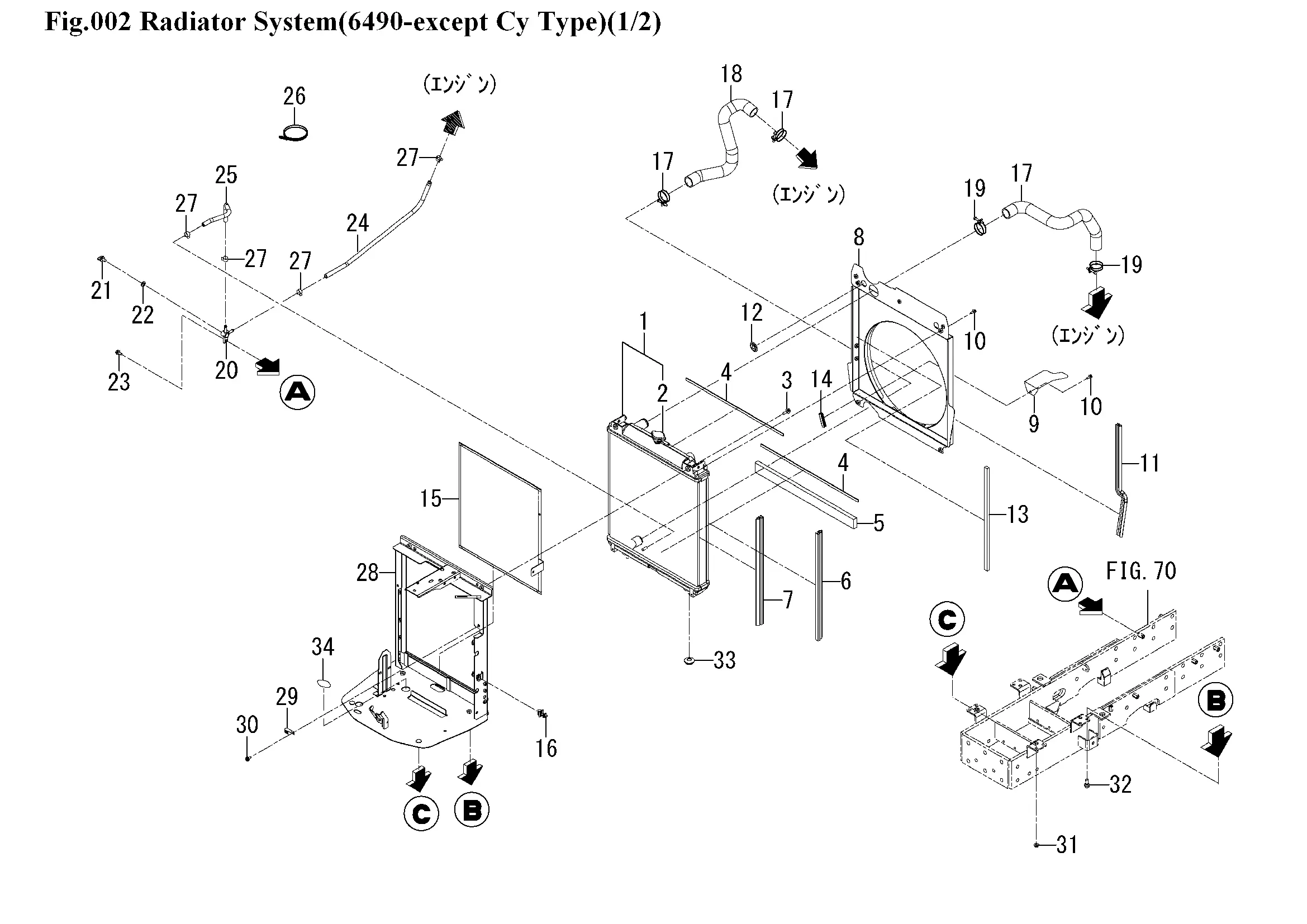

Kühler
Ersatzteile (60 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR
5
INSULATOR/40X480
6
INSULATOR/475
7
INSULATOR/475
8
1796-102-250-10
9
1796-102-005-00
10
1746-804-002-00
11
TRIM/510
12
3670-272-001-00
13
INSULATOR
14
INSULATOR/55
15
1796-102-260-20
16
LATCH ASSY
17
HOSE/RADIATOR/INLET
18
HOSE/RADIATOR/OUTLET
19
CLAMP/WIRE/36-44
20
CONNECTOR
21
1424-101-203-00
22
PACKING
23
BOLT,SP/M8X20
24
HOSE/230
25
1564-104-015-00
26
1342-402-006-00
27
CLIP/HOSE/14.7-15.9
28
1796-102-220-10
29
HOLDER/JE/9-9
30
1815-802-001-00
31
1746-816-001-00
32
1746-804-003-00
33
BUSH,LEVER
34
1801-504-002-00
35
1785-102-210-30
36
1746-817-001-00
37
WASHER,PL/M8
38
SPRING/HT020
39
1792-102-240-00
40
PIN/SNAP
41
1801-102-004-00
42
CAP/PARKING
43
RESERVETANK ASSY
44
CAP
45
PACKING
46
1690-102-214-00
47
1690-102-215-00
48
1690-102-216-00
49
HOSE/RUBBER
50
BAND,WIRE/140
51
1792-102-006-00
52
1746-804-003-00
53
1796-102-004-10
54
INSULATOR/700
55
PROTECTOR/185
56
TRIM/90
57
1746-804-001-00
58
1792-102-270-10
59
TUBE/07X09X30
60
1815-802-001-00
