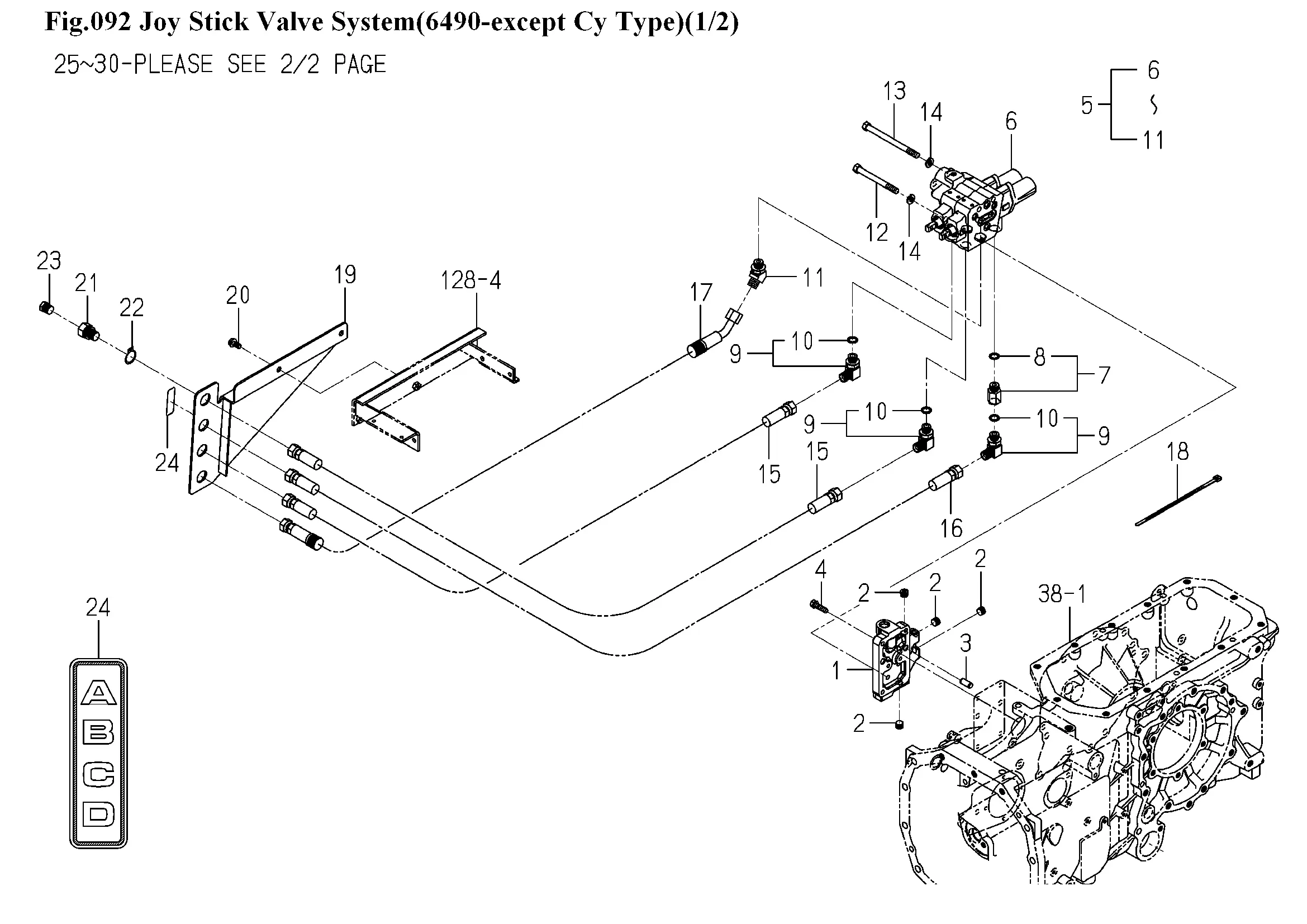

Kreutzhebel, Joy Stick
Ersatzteile (64 Teile)
1
1815-511-005-10
2
PLUG/SCREW
3
PIN,ST,B/10X24
4
V211-560-803-00
5
1815-511-500-00
6
K211-109-000-00
7
ADAPTER/G3/8 ASSY
8
O-RING/1B,P14
9
ADAPTER/L/G3/8 ASSY
10
O-RING/1B,P14
11
ADAPTER (G3/8B-G3/8B
12
V201-261-010-00
13
V201-261-013-00
14
WASHER,SP/M10
15
1801-511-240-10
16
1816-509-220-00
17
1815-511-360-00
18
1342-402-006-00
19
1815-511-230-00
20
FLANGEBOLT/M8X16
21
1815-511-003-10
22
1792-511-004-00
23
PLUG/SCREW/SEAL
24
1801-511-003-00
25
HOLDER/CABLE ASSY
26
BUSH/10X12X20
27
FLANGEBOLT/M6X12
28
1815-511-520-00
29
ARM/BUCKET
30
PIN/06X25
31
PIN/SNAP
32
V411-260-006-00
33
BRACKET/LOCK COMP
34
FLANGEBOLT/M8X16
35
ARM/LOCK ASSY
36
BUSH/10X12X20
37
RING,SNAP/9 E
38
SPRING/HE055
39
Bowdenzug, Arretierung, kpl.
40
1742-511-791-00
41
1742-511-792-00
42
1742-511-793-00
43
1742-511-794-00
44
KNOB
45
V411-260-005-00
46
PIN,SPLIT/1.6X15
47
CABLE/BOOM ASSY
48
CABLE/BUCKET ASSY
49
JOINT/BALL/M06
50
V301-260-006-00
51
NUT/FLANGE/M06
52
HOLDER/JOY COMP
53
FLANGEBOLT/M8X16
54
Halter, Joy Stick
55
SPRING
56
WASHER/27X32X01
57
RING,SNAP/32 C
58
BOLT/LOCK
59
WASHER/8X12X2
60
BOOT,CHANGE LEVER
61
LEVER/JOY COMP
62
BOLT/M8X16
63
GRIP
64
BOOT/JOY
