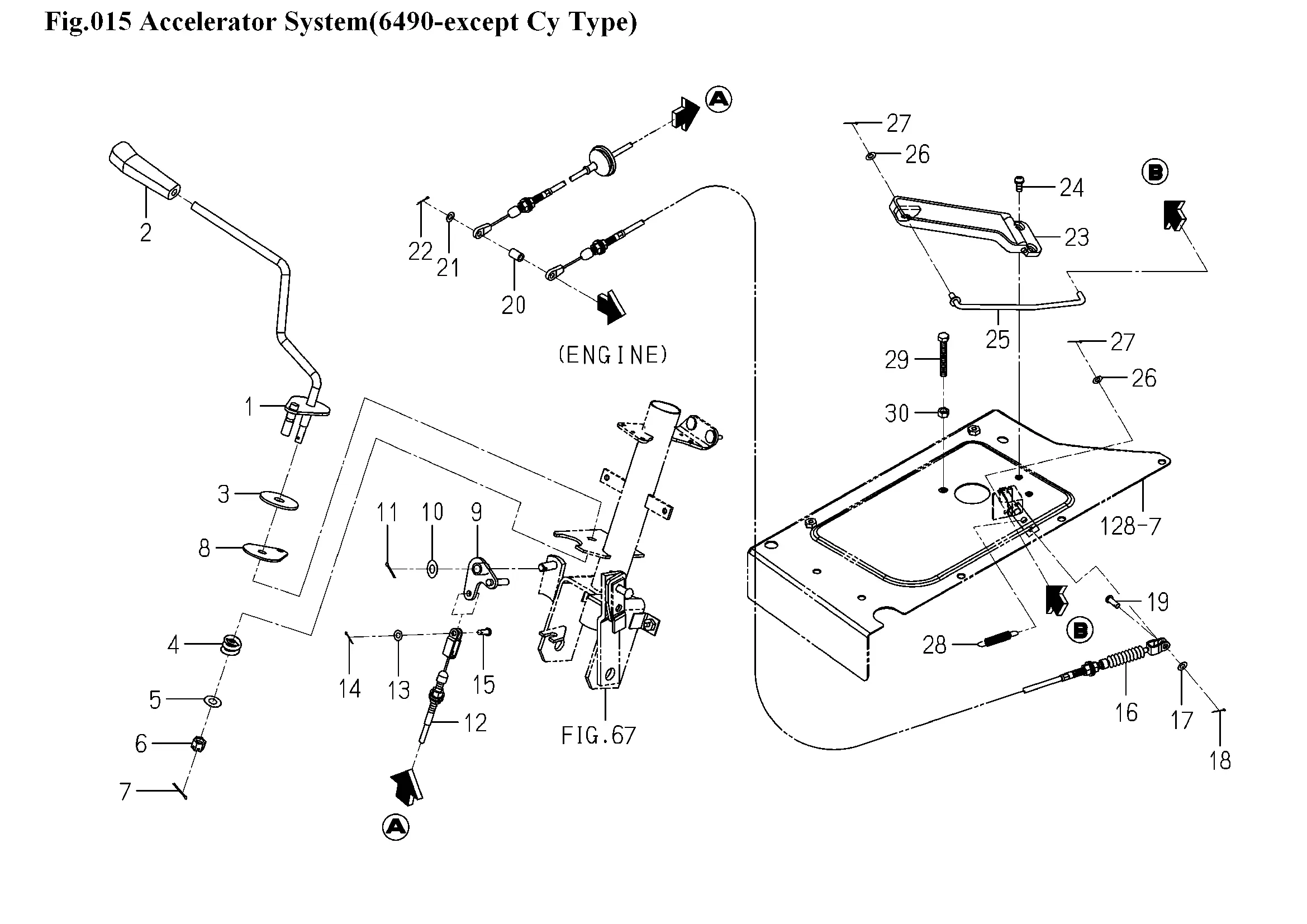

Hand- und Fußgasbetätigung
Ersatzteile (30 Teile)
1
1815-116-200-00
2
1646-116-051-10
3
1600-505-007-10
4
SPRING,PRESS/22
5
V411-260-010-00
6
NUT,CASTLE/M10,P1.25
7
V500-162-502-50
8
PLATE
9
ARM COMP
10
V411-260-010-00
11
PIN,SPLIT/2.5X20
12
CABLE/ACCELERATOR
13
V411-260-006-00
14
V500-162-001-50
15
PIN/6X16
16
CABLE/PEDAL ASSY
17
V411-260-006-00
18
V500-162-001-50
19
PIN/6X16
20
COLLAR/07X11X11
21
V411-260-006-00
22
V500-162-001-50
23
PEDAL ASSY
24
SCREW,SEMS/M6X16
25
ROD COMP
26
V411-260-006-00
27
V500-162-001-50
28
SPRING/HE060
29
BOLT/M8XX55
30
NUT/M8
