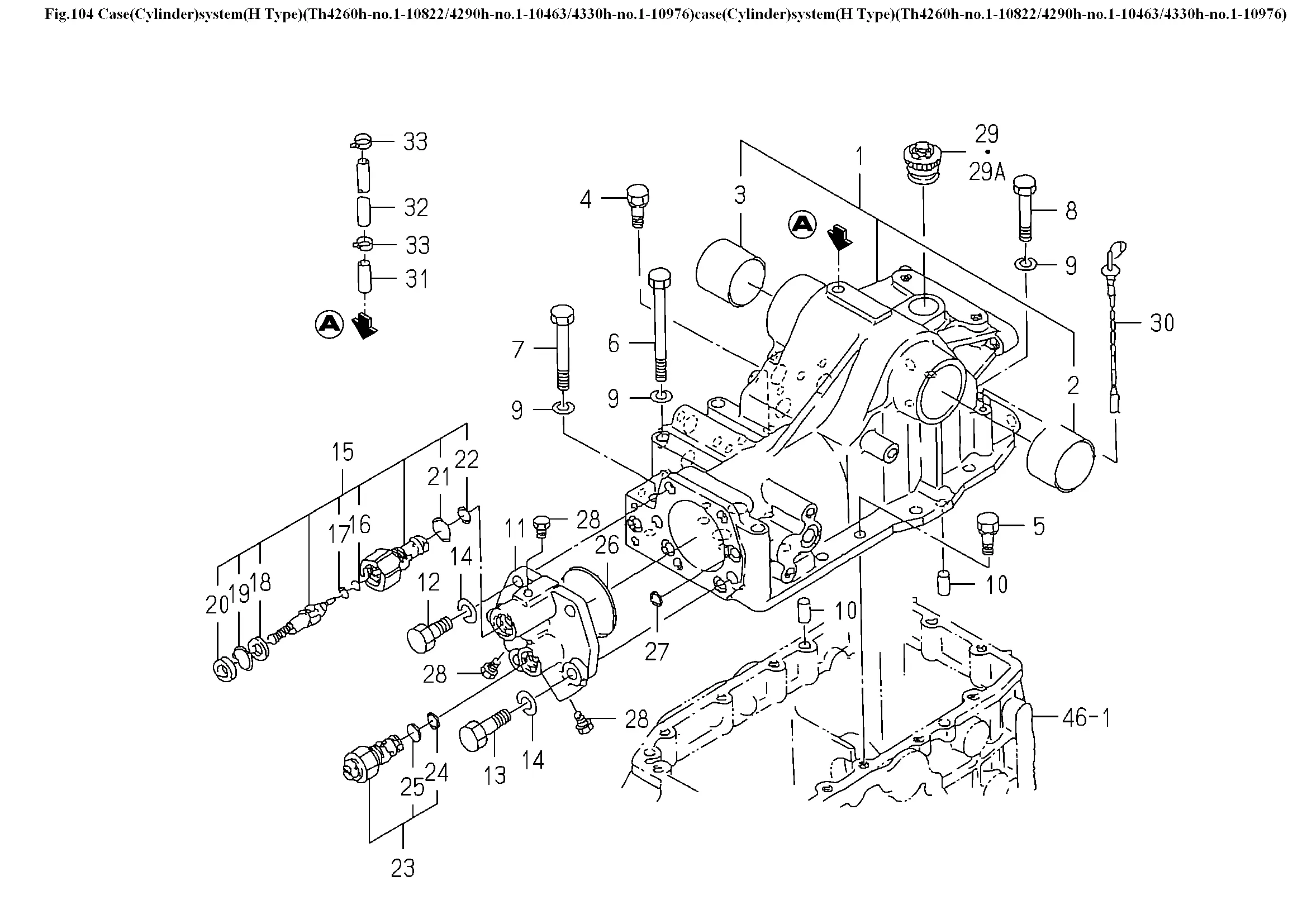

Heckhydraulik bis Seriennr. 10822
Ersatzteile (34 Teile)
1
Deckel, Hydraulikblock
2
BUSH/50X55X37
3
BUSH/45X50X42
4
BOLT,S/M10X35/7T
5
V211-561-003-00
6
V201-361-011-00
7
V201-361-008-00
8
V201-361-005-50
9
WASHER,SP/M10
10
PIN,ST,B/10X24
11
1622-501-001-00
12
BOLT/M12X30/7T
13
BOLT/M12X40/7T
14
WASHER,SP/M12
15
Ventil
16
O-RING/1B,P9
17
RING/BACK UP
18
Manschette 11x21x3
19
Sicherungsring
20
SEAL,DUST
21
O-RING/1B,P20
22
O-RING/1B,P14
23
VALVE
24
O-RING/1B,P12
25
O-RING/1B,P18
26
O-RING/1B,G70
27
O-RING/1B,P14
28
PLUG/SCREW/SEAL
29
Öleinfüllschraube, Getriebe
29A
CAP/OIL(30)
30
Peilstab
31
PIPE,BREATHER
32
3653-311-055-00
33
1650-111-032-00
