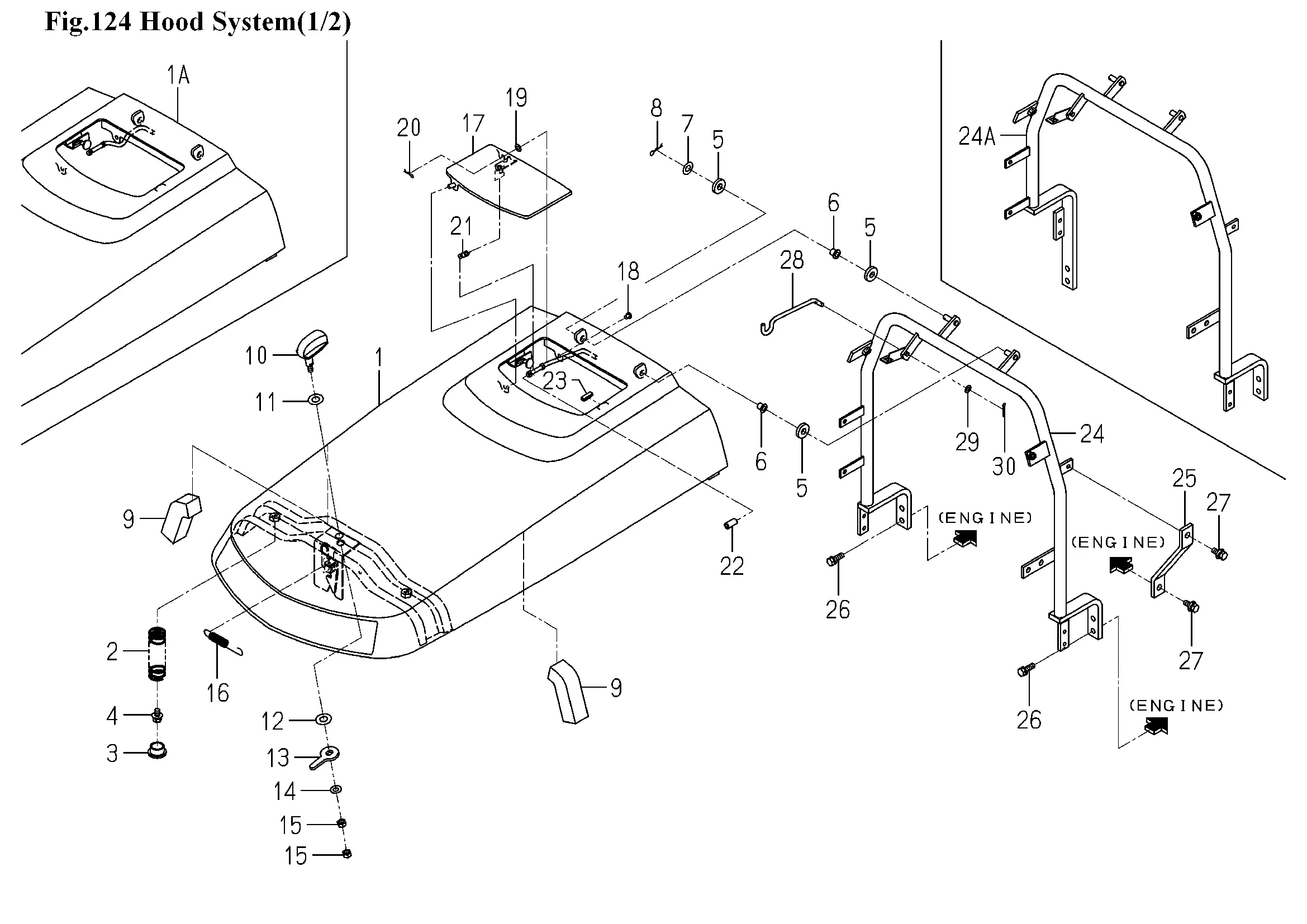

Motorhaube
Ersatzteile (66 Teile)
1
1740-601-500-20
1A
Motorhaube
2
SPRING/HC090
3
BUSH/19X30X14
4
BOLT,SP/M8X16
5
CUSHION/RUBBER/10X25
6
BUSH/08X15X11
7
V411-260-010-00
8
PIN/SNAP
9
INSULATOR
10
Griff
11
WASHER/12X25X02
12
3610-440-018-00
13
ARM/PLATE
14
WASHER,PL/M8
15
NUT/M8
16
SPRING/HE089
17
COVER COMP
18
PIN/06X07
19
V411-260-006-00
20
PIN/SNAP
21
SPRING/HE036
22
TUBE/06X10X20
23
TRIM/20
24
1740-601-510-20
24A
1740-601-510-30
25
1740-601-051-00
26
BOLT,S/M8X25/7T
27
BOLT,SP/M8X20
28
Haltestange
29
V411-260-006-00
30
PIN,SPLIT/2X20
31
HOLDER/ROD
32
Abdeckung, Motorhaube li
33
Polster, li
34
Polster
35
Gitter
36
WASHER/6X14X3
37
NUT,SPEED/M6
38
INSULATOR
39
INSULATOR/30
40
TRIM/170
41
Abdeckung, Motorhaube re
42
Polster, re
43
Polster
44
Gitter
45
WASHER/6X14X3
46
NUT,SPEED/M6
47
INSULATOR
48
INSULATOR/30
49
Halter
50
CAP/PARKING
51
V201-260-802-00
52
WASHER,PL/M8
53
NUT/M8
54
1740-601-550-00
55
1740-601-560-00
56
BUSH,LEVER
57
BOLT,SP/M8X20
58
1740-601-055-00
58A
1740-601-055-00
59
1740-601-056-00
60
BUSH,LEVER
61
BOLT,SP/M8X20
62
Halter
63
BOLT,SP/M8X20
